Yob Rau Roll Slitting Tshuab

Model: TOB-LFT-300
Daim ntawv thov: Rau roj teeb electrode slitting
Slitting dav: 20 - 280mm
Burr mob: Tsawg dua lossis sib npaug li 25μm
Slitting qhov tseeb: ± 0.09mm

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

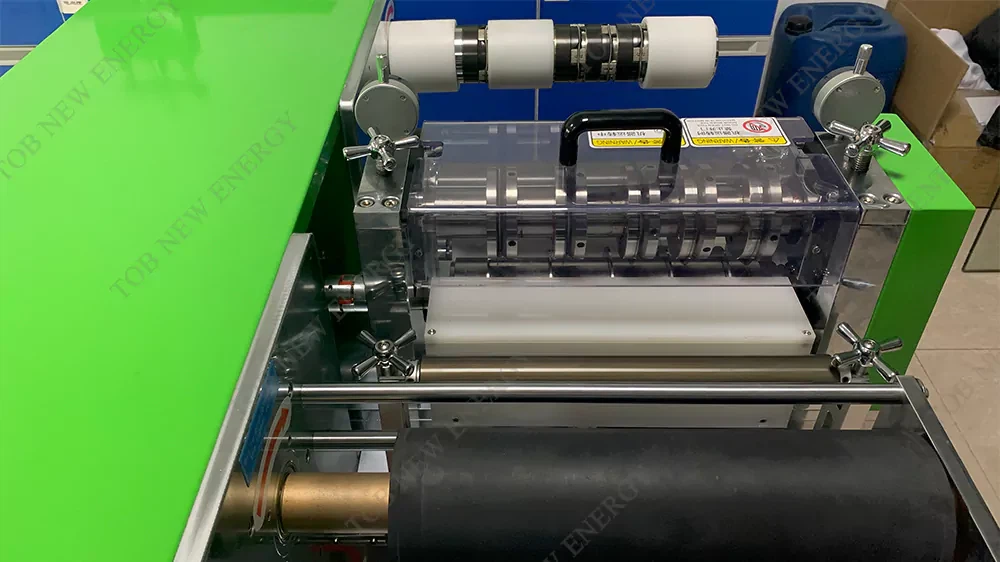

Roll rau Roll Slitting Tshuab

Specification

Siv ob los yog ntau tshaj qhov nruam slitting txheej txheem rau dov khoom. Lub yob rau yob slitting tshuab yog nruab nrog precision riam tuav, uas muaj peev xwm ua tau siab precision ntawv ci slitting. Nws yog dav siv nyob rau hauv lithium roj teeb, hlau ntawv, optical zaj duab xis thiab lwm yam ua hauj lwm zaj duab xis industries.

Cov yam ntxwv tseem ceeb

* Kho qhov system rau kev pub mis yog teem los xyuas kom meej cov coils zoo.

* Ultrafine alloy hniav, zoo txiav zoo thiab ntev kev pab cuam lub neej;

* High slitting dav precision, tsis muaj burrs, tsis, los yog indentations nyob rau hauv cov khoom tiav;

* Tus nqi rau cov riam pub yog kho tau, thiab qhov sib piv ntawm rab riam ceev rau cov kab nrawm ntawm cov khoom yog kho tau;

* Los ntawm kev kho lub qhov nkag thiab qhov hluav taws xob, nws tuaj yeem hloov kho rau kev txiav cov khoom sib txawv thiab cov nqi thickness;

* Ib leeg sawv ntsug, tus tuav riam ywj siab, nruab nrog cov khoom siv tshem tawm plua plav;

* Sab saum toj thiab qis dua riam riam, slitting dav tuaj yeem hloov kho los ntawm kev hloov lub tes tsho;

* adjustable nyob rau hauv 50N ntawm sab sauv thiab sab ncej;

* PLC tswj, HMI ua haujlwm, yooj yim rau kev khiav lag luam;

Technical Parameters

Txoj kev slitting:	Monolithic yob txiav
Cutter hom:	Sab sauv thiab sab riam riam
Kev kho dav:	Hloov spacer hloov kho, yuav qhia kom tiav cov qauv tsim, yooj yim rau disassemble
Khoom thickness:	100 ~ 300μm
Slitting hniav:	Ultra zoo alloy steel, txoj kab uas hla Φ100mm
Slitting dav:	Kev kho ntau yam 20 ~ 280mm
Burr mob:	Tsawg dua los yog sib npaug li 25μm
Slitting raug	± 0.09mm
Tus nqi rau qhov pub riam	{{0}}.2 ~ 0.4mm adjustable, dial qhia zaub
Slitting ceev:	Max. 4m / min
Fais fab mov:	Ib-theem voltage 220VAC ± 10 feem pua, zaus 50Hz / 60Hz, hwj chim 1kW
Ib puag ncig ua haujlwm:	Pom zoo ambient kub 25 ± 3 degree, av noo 30 ~ 90RH, tsis muaj kev vibration thiab electromagnetic cuam tshuam
Installation loj:	L850mm * W800mm * H650mm
Qhov hnyav:	Txog 550Kg
