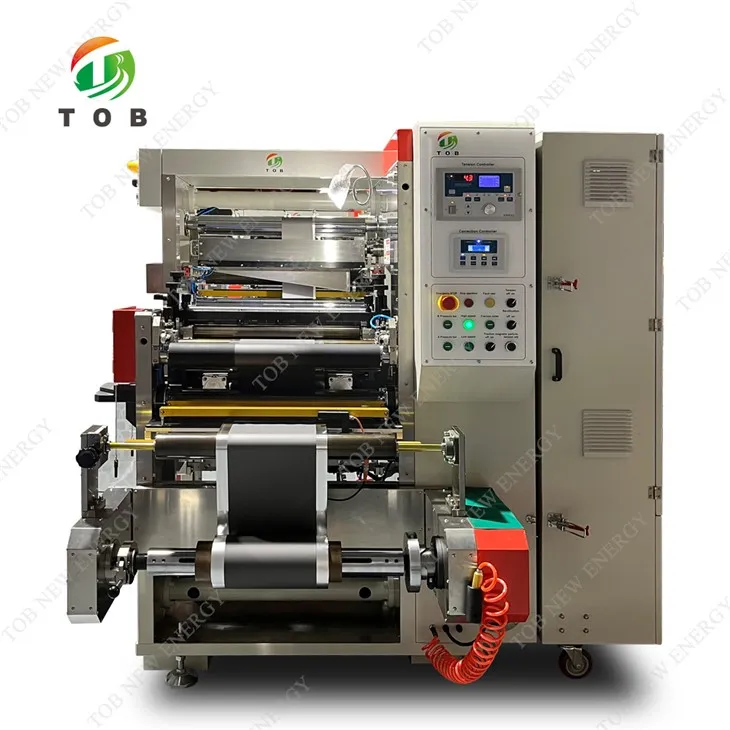

4680 Cells Nws pib Slitting Tshuab



Nws pib Electrode Slitting Tshuab Rau 4680 Cells









Tiv tauj peb kom paub ntau ntxivhais txog qhov no tsis siv neeg roj teeb electrode slitting tshuab, nws yog tsim rau tag nrho cov cylindrical lithium-ion roj teeb electrode npaj, tshwj xeeb tshaj yog rau 4680 tabless roj teeb.

Cov yob zoo / tsis zoo electrodes tom qab dov tau muab tso rau hauv lub tshuab tsis siv neeg, thiab cov khoom siv hluav taws xob tau pub rau cov txheej txheem txiav raws li cov txheej txheem tshwj xeeb rau kev txiav los ntawm dynamic traction, sab sauv thiab qis winding mechanism yuav sau cov txiav electrodes hauv yob, thiab ob sab ntug cov ntaub ntawv yog sau los ntawm ntug cov khoom siv mechanism.

Cov khoom siv yog pab los ntawm kev kho qhov system, nro kis tau tus mob, lub tshuab nqus tsev, thiab lwm yam auxiliary precision khiav, los xyuas kom meej lub du khiav thiab stability slitting ntawm cov electrodes, lub burr, straightness thiab lwm yam txheej txheem qhia nyob rau hauv cov txheej txheem ntau yam.



Tsis muaj.	Cov khoom	Technical parameter	Nco tseg
1	Tsim nyog qhov system	Cov electrodes ntawm LFP, LCO, LMO, NMC, LTO, Graphite tom qab dov
2	Substrate khoom parameter	Aluminium ntawv ci (Al): thickness 10- 30um; Dav 100-560mm; Yob txoj kab uas hla Max.450mm; Copper foil(Cu): Thickness 6-30um; Dav 100-560 hli; Yob txoj kab uas hla Max.450mm;
3	Roll nto tsim dav	650 hli
4	Xyuas kom txiav qhov dav	200-560 hli
5	Machanical khiav ceev ntawm cov khoom siv	50m / min
6	Cov cuab yeej txiav ceev	20-50m/min	Txiav txim siab los ntawm kev txiav
7	Electrode thickness ntau	80-250μm
8	Txiav txoj kev	Slicing hom dov txiav
