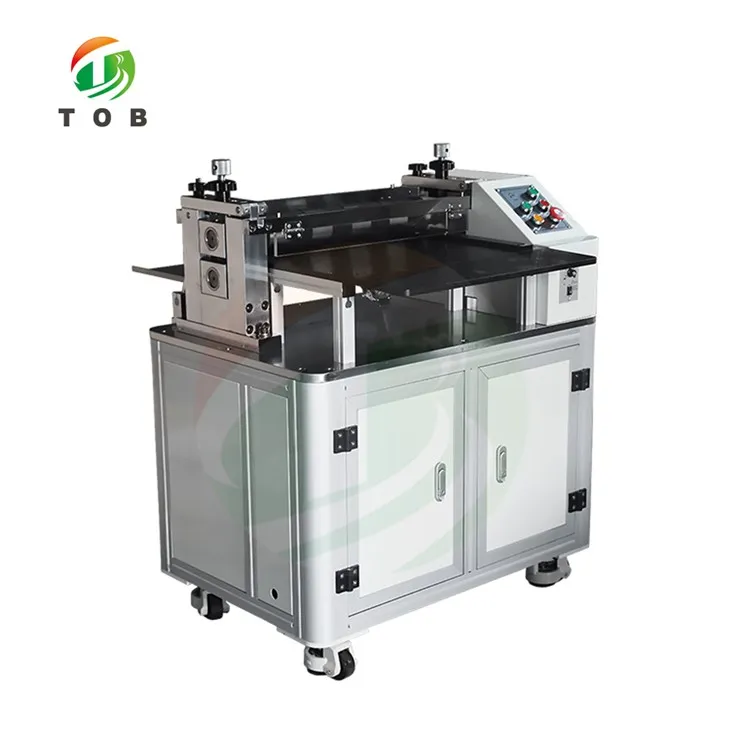

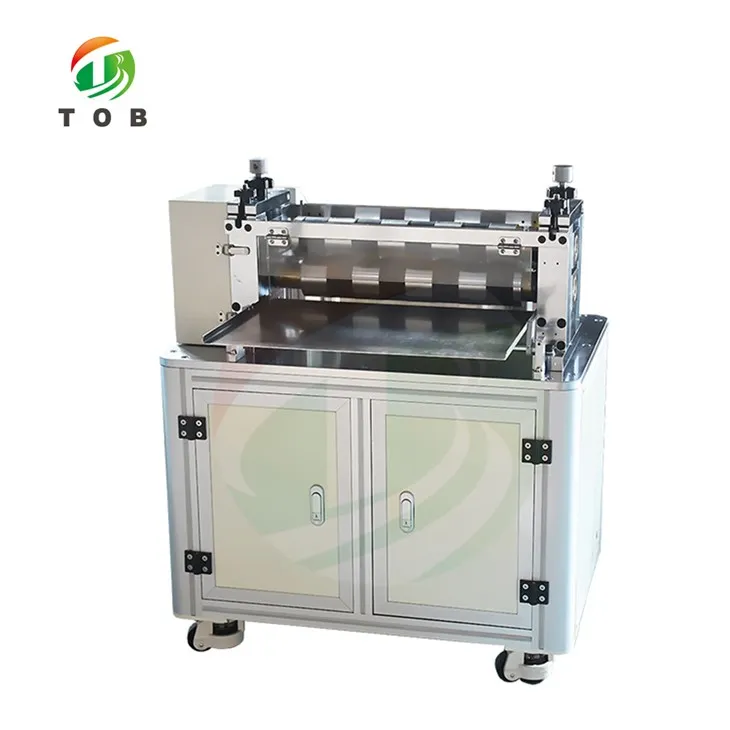

Laboratory roj teeb Electrode Slitting Tshuab



500mm Lithium roj teeb Electrode Slitting Tshuab rau Electrodes ntawm Cylindrical thiab Hnab Cell









1 TOB-FT-500 qauv Roj teeb electrode slitting tshuab yog semi-automatic slitting tshuab rau kev npaj electrode ntawm lub tog raj kheej roj teeb thiab prismatic roj teeb nyob rau hauv R&D lub chaw soj nstuam thiab cov kab ntau lawm.

2 Lub tshuab slitting tuaj yeem hlais electrode nrog dav txog 500mm, thiab nrog tiav slitting dav ntawm 20mm mus rau 500mm nrog txawv qauv cutter hniav.

3 Cov khoom siv no yog tsim rau rechargeable lithium roj teeb cathode thiab anode electrode ntawm longitudinal txiav, lub electrode ntawm lub hauv paus khoom yuav ua tau txhuas ntawv ci thiab tooj liab ntawv ci, hlais ntug huv si, siab qhov tseeb, tsis muaj burr, nws yog ib qho tseem ceeb cov khoom nyob rau hauv phaj. ua.



Qauv	Roj teeb Electrode Slitting Tshuab TOB-FT-500
Qhov chaw voltage	AC 110V-220V, 50Hz/60Hz
Hwj chim	800W
Slitting hom	Ib rab riam hobbing
Hom riam	Upper thiab qis puag ncig riam
Slitting dav	20-500 hli
Slitting thickness	100-300um
Hlob diam	Φ80 hli
Slitting ceev	10m / min adjustable
Qhov Loj (L * W * H)	610 * 610 * 1100 hli
Qhov hnyav	200 kg
Warranty	Ib Xyoo Txwv Kev Tsim Khoom Warranty nrog Lub Sijhawm Txhawb Nqa
