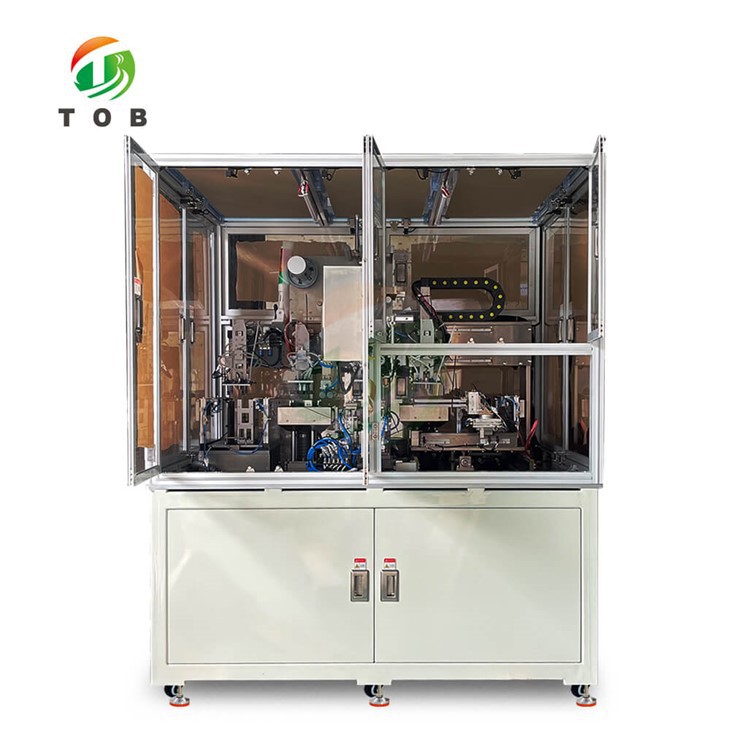

Roj teeb Electrode Stacking Tshuab

1. Stacking ceev: 1.3-1.5s/piece
2. Roj teeb loj (L*W*T):(80-150)mm*(30-90)mm*(5-20)mm
3. Tab loj (ntev & dav): Tsawg dua lossis sib npaug li 20mm
4. Lub zog: 4KW
5. Model:TOB-S-DP-150

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Lithium ion roj teeb Ua Tshuab Semi-auto Stacking Tshuab rau Electrode thiab Seperator Laminating

Product Video

Specification

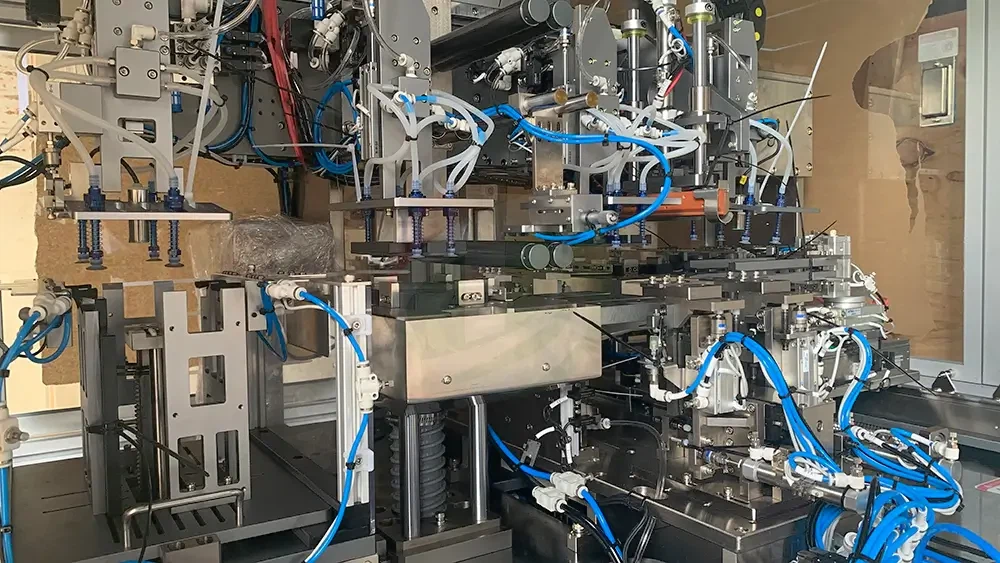

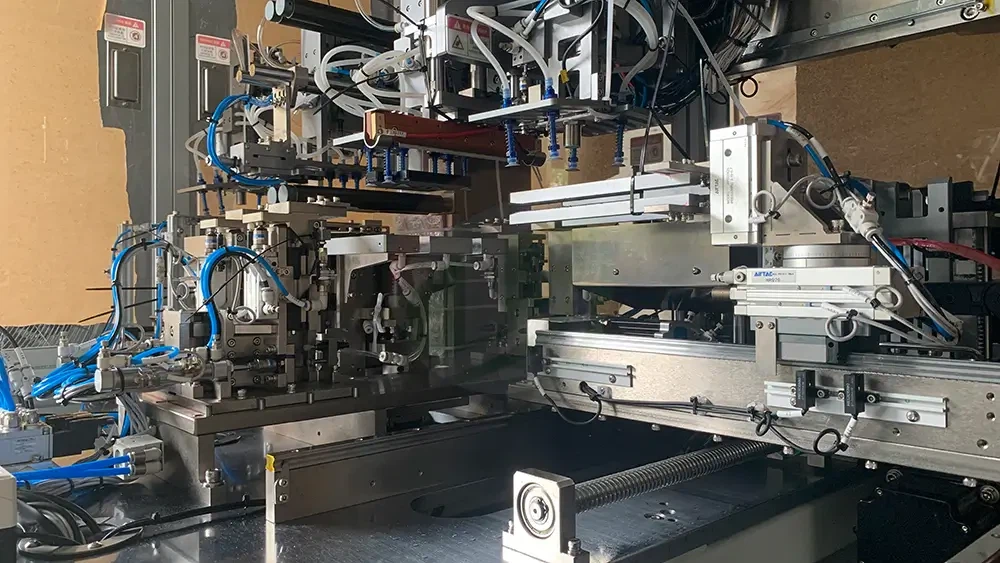

TOB-S-DP-150 yog ib lub tshuab Semi-auto stacking uas muaj qhov tseeb siab nrog ntau yam kev ua haujlwm siab heev los xyuas kom meej qhov ruaj khov, rov ua dua thiab meej electrode stacking. Nws txais yuav "Z" glyph laminated.

Advanced Features:

1 PLC Kov Screen Tswj nrog kev teeb tsa yooj yim

2 Nruam "Z" zam stacking nrog ib tug cais

3 Nws pib electrode pick-up & stacking ntawm lub tshuab nqus tsev vacuum manipulator

4 Los ntawm plaub tus neeg siv los tshem tawm cov khoom siv hluav taws xob los ntawm lub thawv ntim khoom thib ob, tom qab calibration ces tso rau ntawm lamination platform, laminated nrog tsis siv neeg clamping ntaus ntawv rau theem.

5 Unreeling rotors rau cais zaj duab xis pub

6 Nws pib-nruj tswj kev sib cais zaj duab xis xa

Qauv	Semi-auto stacking tshuab TOB-S-DP-150
Haum roj teeb loj	Thickness H (mm)	5-20
	Qhov dav W (mm)	30-90
	Ntev L (mm)	80-150
	Tab Length (mm)	Tsawg dua los yog sib npaug li 20
	Tab dav (mm)	Tsawg dua los yog sib npaug li 20
Technology parameter	Stacking ceev	1. 3-1.5s/piece
	Kev sau npe raug	± 0.5 hli
	stacking kom muaj nuj nqis	Yuav tau teem
	Feem pua ntawm kev hla	Ntau dua lossis sib npaug li 98%
	Hwj chim	4 KW
	Qhov hnyav	8 00kg
	Qhov Loj (L * W * H)	1250mm * 1150mm * 1850mm
Khoom loj	Hluav taws xob	Ntev: 80-150mm Dav: 30-90mm Thickness: 0 07-0.25mm
	Tab	Ntev: Tsawg dua lossis sib npaug li 20mm Dav: 8-20mm
	Separator	Ntev: nyob rau hauv yob Dav: 90-150mm Thickness: 0 02-0.04mm Sab hauv txoj kab uas hla: 76.2mm Max tawm txoj kab uas hla: 300mm
