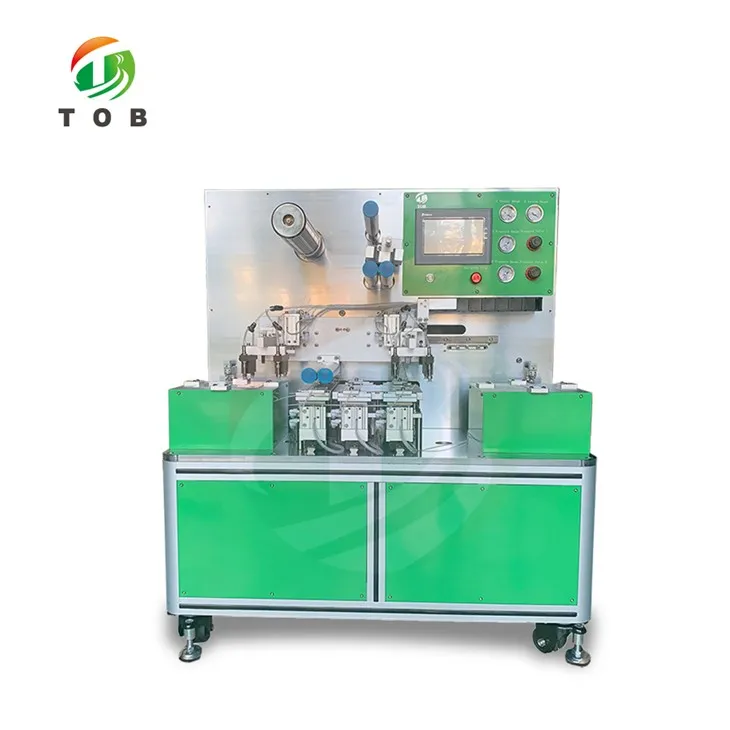

Hnab Cell Battery Electrode Stacking Tshuab



Semi-auto Pouch Cell Battery Stacking Tshuab









TOB-BDP200-C Stacking tshuab yog tsim rau lithium roj teeb cathode / anode electrode thiab cais Z-type stacking txheej txheem.

Cov cuab yeej no paub txog kev tuav phau ntawv, tom qab electrode txoj hauj lwm kho thiab stacking txheej txheem yog tag nrho tsis siv neeg. Nws muaj cov yam ntxwv ntawm high stacking efficiency thiab siab stacking raug. Cov cuab yeej tsim tuaj yeem teeb tsa qhov siab tshaj plaws ntawm 150 * 150mm hlwb, thiab ntau qhov sib txawv tuaj yeem ua tiav los ntawm kev kho cov khoom siv, uas yog qhov tsim nyog rau kev txhim kho thiab cov qauv tsim ntawm stacking lithium ion roj teeb. Cov cuab yeej siv ib qho kev tsim qauv cantilever, tsis siv neeg qhov nro tswj cov ntaub ntawv yob cais, thiab kev tswj tsis siv neeg kho.



Main Feature:

1. Cov menyuam sib cais tsis siv neeg servo qhov nro tswj

2. Separator tsis siv neeg photoelectric kho tswj

3. Tus naj npawb ntawm stacking txheej tuaj yeem tswj tau raws li kev teeb tsa preset;

4. Kev tsim qauv tsim, roj teeb hloov pauv tuaj yeem ua tiav los ntawm kev kho qhov chaw teeb tsa, kev hloov kho loj.

5. PLC tswj, HMI ua haujlwm, yooj yim siv thiab tswj;

6. Kev tuav cov khoom siv electrode, tsis siv neeg qhov chaw, neeg hlau tes tsis siv neeg nqus, tsis siv neeg stacking.

7. Sab laug thiab txoj cai txav yog tswj los ntawm lub cev muaj zog mem tes, uas yog qhov tseeb thiab yooj yim rau kev kho kom zoo.



Qauv	Semi-auto stacking tshuab TOB-BDP200-C
Hom stacking	Z Hom
Txoj kev ua haujlwm	Los ntawm txhais tes pub, neeg hlau tes nqa cov khoom siv stacking, tsis siv neeg puv cais, Tsis siv neeg sib txawv kho thiab tswj qhov nro tsis tu ncua
Stacking raug	Uniformity Tsawg dua los yog sib npaug rau ±0.3mm
Stacking ntau	Roj teeb Min. L40mm * W40mm, Max. L150mm * W150mm (tsis suav tab)
Stacking thickness	Max 30 hli
Txheej Txheej	Max 500, tuaj yeem teeb tsa
Separator roller txoj kab uas hla	Max φ250 hli
Separator core txoj kab uas hla	3 "roll core nrog cua ncej clamping
Fais fab mov	Ib theem AC220V ± 10% (110V AC customized), 50HZ / 60HZ
Hwj chim	0.6KW
Compressed cua qhov chaw	0 5-0.8MPa
Cov khoom siv loj	L1000 * W780 * H1050mm
Packing loj	L1200 * W1180 * H1300mm
Khoom hnyav	285kg ua
Qhov hnyav tag nrho	3 56kg
Lus ceeb toom	1. Qhia siv qhov kub thiab txias 25 ± 3 degree, av noo 30-90RH, Tsis muaj kev vibration thiab electromagnetic cuam tshuam 2. Cov menyuam sib cais tsis siv neeg servo qhov nro tswj 3. Separator tsis siv neeg photoelectric kho tswj
