Tsis Siv Neeg Roj Teeb Electrode Stacking Tshuab

Model: TOB-ADP-300B
Stacking ceev: 1.3-1.5s/pcs
Alignment raug ntawm electrode thiab separator: ±{0}}.3mm
Alignment qhov tseeb ntawm lub ntsej muag kawg ntawm lub separator: ± 0.3mm
Alignment qhov tseeb ntawm cov electrodes uas nyob ib sab: ±{0}}.2mm
Zuag qhia tag nrho qhov tseeb ntawm cov electrodes: ± 0.3mm

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

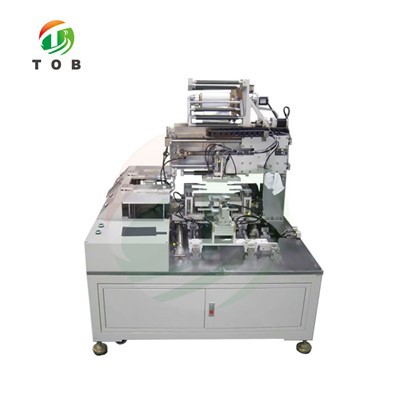

Tsis Siv Neeg Roj Teeb Electrode Stacking Tshuab Rau Lithium Hnab Cell

Product Video

Specification

TOB-ADP-300B Cov khoom siv dav dav thiab cov txheej txheem ntws

Cov cuab yeej no tsuas yog siv nyob rau hauv Z-hom stacking txheej txheem ntawm lithium-ion hnab cell.

Cov cathode thiab anode electrodes yog feem ntau nyob rau hauv lub thawv khoom thiab manually pub rau hauv lub tshuab stacking. Lub separator cia li unwinding, dhau los ntawm lub nro mechanism thiab kho mechanism, thiab ces yog nkag mus rau hauv lub rooj stacking.

Lub manipulator pheej rov txav mus rau sab laug thiab sab xis, thiab lub khob nqus dej ntawm lub tshuab ua haujlwm yuav siv lub cathode thiab anode electrodes los ntawm lub thawv khoom raws li, tom qab ntawd ua cov txheej txheem stacking tom qab qhov chaw nruab nrab qhov tseeb, tseem tsav lub separator txav mus rau sab laug thiab sab xis.

Muaj plaub txheej ntawm xovxwm-hla mechanisms ntawm lub rooj stacking kom compress cov electrodes. Tom qab lub stacking tiav lawm, lub cell raug tshem tawm los ntawm lub manipulator clamping mechanism, lub separator raug txiav tawm, thiab lub cell yog pauv mus rau lub chaw nres tsheb taping rau tsis siv neeg taping.

Nyob rau tib lub sijhawm, qhov tsis siv neeg stacking ntawm lub xov tooj tom ntej yog pib, thiab lub xov tooj ntawm tes uas tau teped tau txiav tawm.

Khoom nta

1. High precision: Los ntawm qhov tseeb qhov chaw ntawm cov electrodes, tag nrho txoj hauj lwm raug ntawm cov electrodes thaum stacking yog guaranteed ±0.3mm.

2. Separator raug: txiav unwinding, nro tswj, integral module kho, separator alignment raug ±0.3mm.

3. Kev ntseeg tau: Cov khoom nyob rau hauv high precision thiab kev kub ceev yog tsau los ntawm pins.

4. Kev tswj plua plav: cov khoom siv lub thawv yog nruab nrog lub tshuab nqus plua plav zoo, lub tshuab nqus plua plav ntawm lub khob nqus yog ua los ntawm cov khoom tsis yog xim hlau.

5. Kev ntsuas rau ntau daim thiab cov khoom ploj: cov khoom siv lub thawv viav vias cua, daim txhuam cev, lub tshuab ua haujlwm shakes cais cov electrode.

Stacking Tshuab Specification

Yam khoom	Specification
Tag nrho qhov ntev	W2400 x L1800 x H2200mm (dimensions yog raug rau qhov kawg tsim)
Luj / bearing	Txog 2000Kg, ≥450Kg / M²
Xim	Grey (yog tias tog A muaj xim, thov muab cov qauv qauv xim)
Fais fab mov	AC220V 50Hz, Voltage fluctuation ± 10 feem pua, Lub zog: 3KW
Compressed cua	0 5-0.7Mpa (5-7kgf/cm²), 200L/min
Ambient kub	5-35 degree
txheeb ze humidity	5-55 feem pua HR
Cua / plua plav	Nws tsis muaj cov nkev ntsev, cov pa phem thiab corrosive, thiab yuav tsum tsis muaj plua plav conductive
Sib nqus thiab vibration	Yuav tsum tsis muaj qhov chaw sib nqus cuam tshuam rau lub cuab yeej, yuav tsum tsis muaj kev vibration pom tseeb.

Cov khoom siv technical parameters

Yam khoom	Tsis muaj
Stacking ceev	1. 3-1.5s/pcs
Alignment raug ntawm electrode thiab separator	± 0.3 hli
Alignment raug ntawm lub ntsej muag kawg ntawm lub separator	± 0.3 hli
Alignment raug ntawm cov electrodes uas nyob ib sab	± 0.2 hli
Zuag qhia tag nrho kev sib raug zoo ntawm cov electrodes	± 0.3 hli
Txheej txheej	Yuav tau teem nyob rau hauv lub thickness ntau yam
Separator wrapping txheej txheem	Tsis yog (Yog tias koj xav tau, qhov no tuaj yeem ntxiv)
Tsim nyog tus nqi	99 feem pua (kev puas tsuaj los ntawm lub tshuab no nkaus xwb)
Kev siv tus nqi	98 feem pua (ua txhaum los ntawm lub tshuab no nkaus xwb)

Khoom specification

	Khoom siv	Ntev mm	Dav mm	Thickness ua	Iner txoj kab uas hla mm	Sab nraud txoj kab uas hla mm
Cathode electrode	Daim	150-300	100-265	100-200	-	-
Anode electrode	Daim	150-300	100-265	80-150	-	-
Cathode tab	-	8-20	10-80	6-30	-	-
Anode tab	-	8-20	10-80	6-30	-	-
Separator	Yob	-	150-300	12-45	φ76.2	φ300
Daim kab xev	Yob		10-20	20-50	φ76.2	φ150

Nqe lus piav qhia:

1. Qhov ntev ntawm lub electrode yog hais txog qhov ntev ntawm cov electrode nyob rau hauv cov kev taw qhia ntawm tab, tsis suav nrog qhov ntev ntawm lub tab.

2. Cov electrodes tsis muaj qhov tshwm sim pom tseeb ntawm cov hmoov ntog, tsis muaj qhov pom tseeb wavy ntug, kev tuag txiav yuam kev tsawg dua 0.3mm.

3. Cov khoom siv hluav taws xob tuaj tsis muaj qhov pom tseeb warpage thiab deformation, thiab cov electrodes uas tuaj yeem tsis pom tseeb adhesion.

4. Qhov kev ua yuam kev ntawm qhov sib cais: 1mm / 1000mm.
