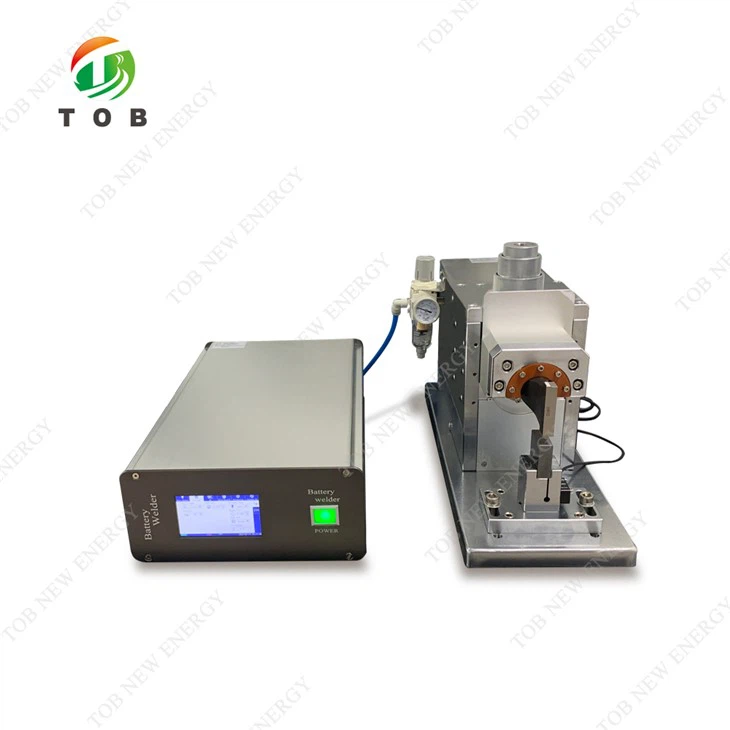

Ultrasonic roj teeb Spot Vuam Tshuab



2600W Ultrasonic Battery Spot Vuam Tshuab Rau Hnab Cell Multi-txheej electrode thiab tab Vuam









1.TOB-USW-2600Wultrasonic hlau vuam tshuabyog tsim rau Lithium roj teeb tab weldingnrog kov-screen maub los. Nws yog tsim los rau vuam stacked electrode nplooj ntawv (Copper & Aluminium) thiab tab mus rau tam sim no collectors los npaj Li-ion hnab cell nyob rau hauv R&D kuaj thiab ntau lawm kab.



2.2600 NwsRoj teeb Vuam Tshuabmuaj peev xwm weld stacked electrode nrog 10-30txheej txhuas ntawv ci los yog tooj liab ntawv ci nrog Al tab thiab Nickel tab, Yog tias muaj roj teeb loj dua nrog txheej txog 30layers, tuaj yeem xaiv TOB-USW-3000W qauv, thiab Yog xav tau txhawm rau txuas mus txog 60 txheej, thov xaiv TOB-USW-4500W qauv.



Qauv	Roj teeb Vuam Tshuab TOB-USW-2600W
Hom	Ultrasonic chaw vuam tshuab
Weld peev xwm:
{{0}} nplooj ntawv 0.09-0.012mm tooj liab ntawv nyiaj + 0.1-0.3mm Ni los yog Nickel-clad tooj liab tab welding. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12 mm customized
{{0}} nplooj ntawv 0.09-0.012mm aluminium foil + 0.1-0.3mm Al tab welding. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12 mm customized
3 0.2mm Al siv +0.2mm Ni siv los yog Nickel-clad tooj liab wrapping vuam. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12mm customized
{{0}} nplooj ntawv 0.2mm Al tab lossis 2-4 nplooj ntawv 0.2mm Ni tab weld. Vuam taw tes: 4 * 6, 4 * 12mm customized
Ntau zaus	24 KHz
Max tso zis zog	2600W
Tswj hom	CPU tswj
Huab cua	Ntau dua lossis sib npaug rau 0.5MPa
Voltage qhov chaw	110 / 220V 50HZ / 60HZ
Cov av noo	Tsawg dua lossis sib npaug li 48%
Kub	Tsawg dua lossis sib npaug li 45 degree
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej
