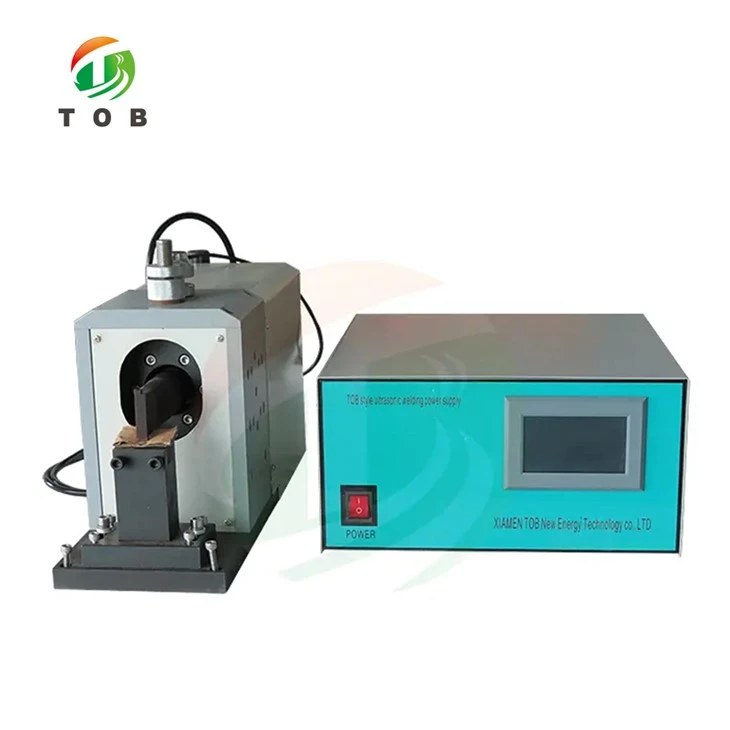

Ultrasonic roj teeb Tab Spot Welder 4500W
2.Control hom: CPU tswj
3.Welding peev: 10-60 txheej
4.Key worlds: Ultrasonic vuam tshuab
4500W Ultrasonic Roj Teeb Vuam Rau Hnab Cell Multi-txheej electrode thiab tab Vuam
Specification
1. TOB-USW4500Wultrasonic hlau vuam tshuabyog tsim rau Lithiumroj teeb tab weldingnrog kov-screen maub los. Nws yog tsim los rau vuam stacked electrode nplooj ntawv (Copper & Aluminium) thiab tab mus rau tam sim no collectors los npaj Li-ion hnab cell nyob rau hauv R&D kuaj thiab ntau lawm kab.
2.2600 wbroj teeb weldermuaj peev xwm weld stacked electrode nrog 10-30txheej txhuas ntawv ci los yog tooj liab ntawv ci nrog Al tab thiab Nickel tab, Yog tias muaj roj teeb loj dua nrog txheej txog 30layers, tuaj yeem xaiv TOB-USW-3000W qauv, thiab Yog xav tau rau welding mus txog 60 txheej, thov xaiv
TOB-USW-4500W model
|
Qauv |
Roj teeb Vuam Tshuab TOB-USW-4500W |
|
Hom |
Ultrasonic chaw vuam tshuab |
|
Weld peev xwm: |
|
|
{{0}} nplooj ntawv 0.09-0.012mm tooj liab ntawv nyiaj + 0.1-0.3mm Ni los yog Nickel-clad tooj liab tab welding. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12 mm customized |
|
|
{{0}} nplooj ntawv 0.09-0.012mm aluminium foil + 0.1-0.3mm Al tab welding. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12 mm customized |
|
|
3 0.2mm Al siv +0.2mm Ni siv los yog Nickel-clad tooj liab wrapping vuam. Vuam taw tes: 4 * 6, 4 * 8, 4 * 10, 4 * 12mm customized |
|
|
{{0}} nplooj ntawv 0.2mm Al tab lossis 2-4 nplooj ntawv 0.2mm Ni tab weld. Vuam taw tes: 4 * 6, 4 * 12mm customized |
|
|
Ntau zaus |
24 KHz |
|
Max tso zis zog |
4500W |
|
Tswj hom |
CPU tswj |
|
Huab cua |
Ntau dua lossis sib npaug rau 0.5MPa |
|
Voltage qhov chaw |
110 / 220V 50HZ / 60HZ |
|
Cov av noo |
Tsawg dua lossis sib npaug li 48% |
|
Kub |
Tsawg dua lossis sib npaug li 45 degree |
|
Warranty |
Ib xyoos txwv warranty nrog kev txhawb nqa lub neej |

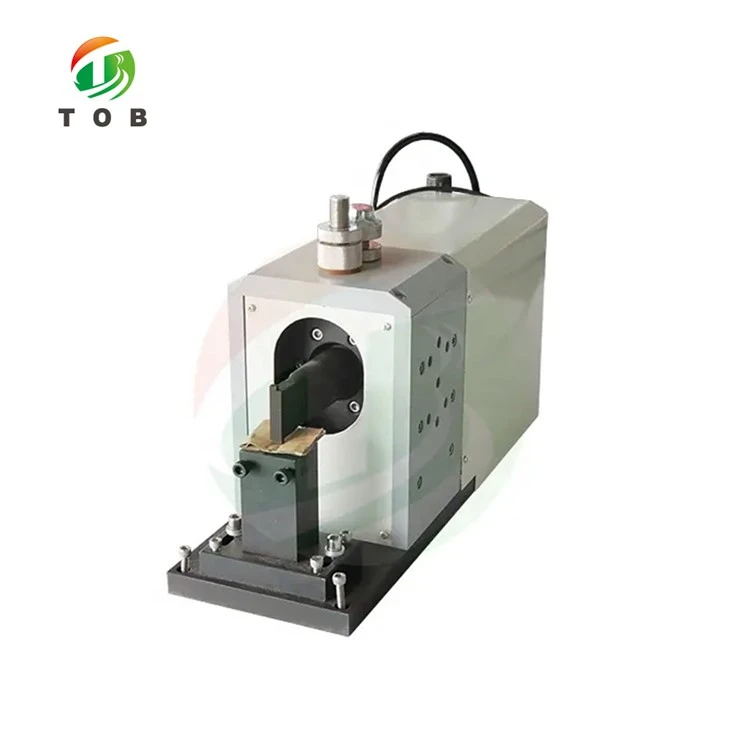

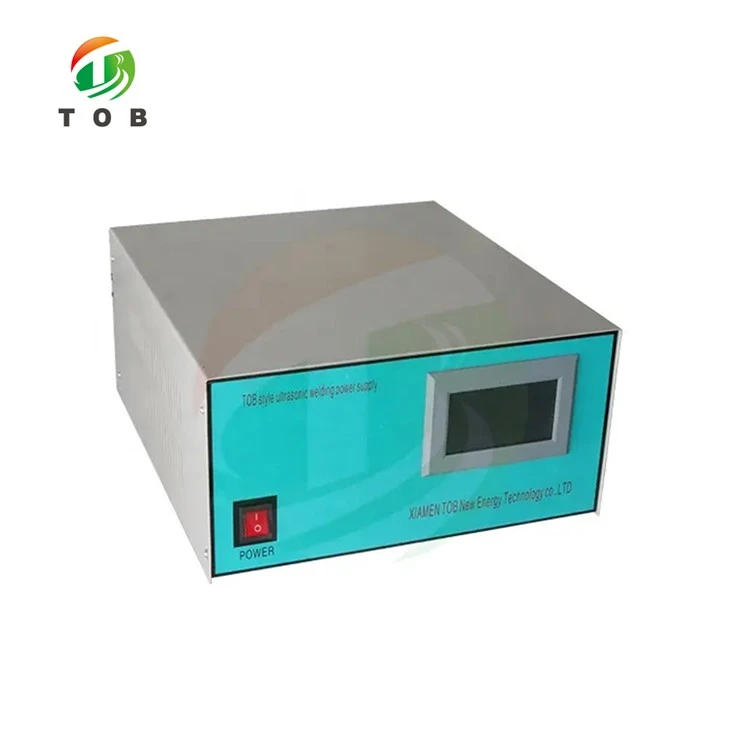

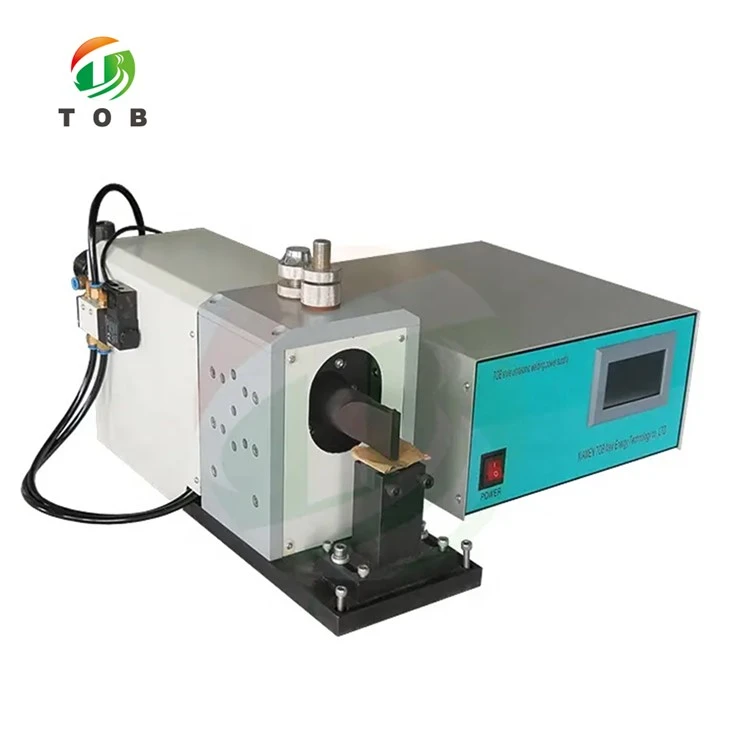

Khoom Qhia
Vuam nyhuv
Peb Daim Ntawv Pov Thawj
Ntau Daim Ntawv Pov ThawjDaim ntawv pov thawj Patent
ISO 9001 Cov
CE Daim Ntawv Pov Thawj
