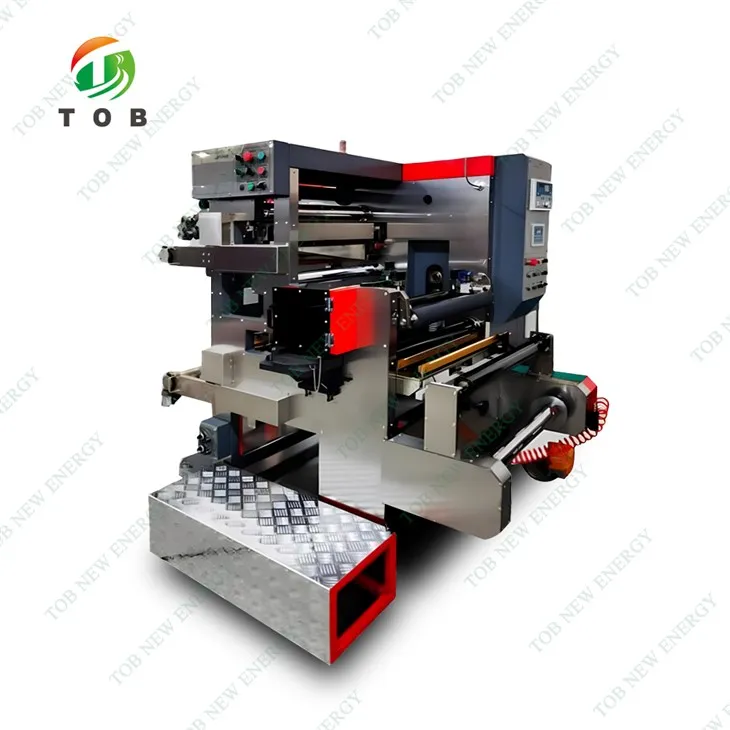

500mm Dav Nws Pib Slitting Tshuab

Qauv: TOB-AFT-500
Daim ntawv thov: Rau roj teeb electrode slitting
MAX. slitting dav: 500mm adjustable
Yam tsawg kawg nkaus slitting dav: 6mm
Qhov no TOB-AFT-500 nws pib slitting tshuab yog 6-500mm dav electrode slitting tshuab rau roj teeb electrode npaj hauv roj teeb tsim.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

500mm Max. Dav Nws Pib Electrode Slitting Tshuab Rau Roj Teeb Chaw Tsim Khoom

Product Video

Specification

Cov duab uas pom no tsuas yog ua piv txwv xwb. Cov khoom siv tiag tiag tuaj yeem sib txawv vim cov khoom txhim kho.

Yam tsawg kawg nkaus slitting dav: 6mm

Adjustable Roller Cutter / Tsau Cov Menyuam Cutter

Cov khoom siv tshem tawm plua plav zoo

Tsis siv neeg sib dhos

Electrode daim ntawv tsis siv neeg threading

Ergonomically tsim

Tsis muaj
Pub dav	Max.500 hli
Pub yob txoj kab uas hla	Max. 450 hli
Slitting ntau	6-500 hli
Slitting ceev	Qhov siab tshaj 40m / min
Dimension	L* W * H 1 8 0 0 * 2 3 0 0 * 1 8 5 0 M M
Specification
Daim ntawv thov	Lub hnab me me tsis tu ncua
Qauv	TOB-AFT-500
Siv tau slitting dav	500 hli
Yam tsawg kawg nkaus slitting dav	7mm ib
Dimension	1800 * 2300 * 1850 hli
Khoom hnyav	3.2T
Tus tswj	OMRON
Unwinding txoj kev	Inflatable ncej
Deviation rectifying	Ultrasonic tsis siv neeg sib txawv rectifying
Kev ntxhov siab	Torque hom tsis siv neeg nro
Slitting	Kho Cov Menyuam Cutter (◎ Adjustable Roller Cutter)
Electrode Plua plav tshem tawm	Rov qab dov txhuam
Electrode Static Elimination	◎ Ion cua ntsawj
Electrode hlau tshem tawm	◎ 1000 gauss magnetic pas nrig
Winding ncej	Pob hom swb ncej
Cov menyuam siab	Tus kheej hnyav
Kev kuaj pom tsis raug	◎ CCD nrhiav pom ntxiv rau qhov cim
Ntaus xim	Customizable
