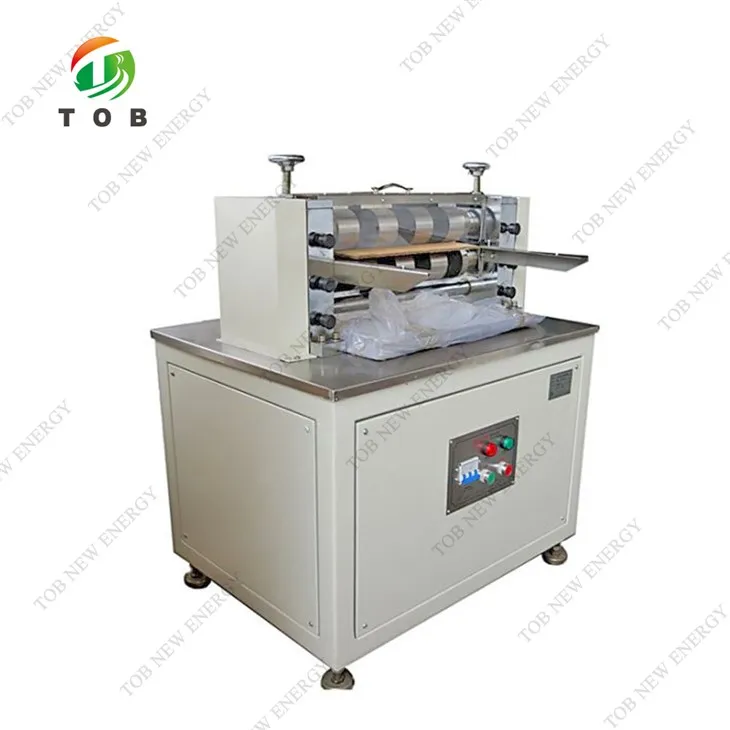

Roj teeb Electrode Slitting Tshuab

1. Lub zog: 800W
2. Slitting dav: 20-500mm
3. Slitting thickness: 100-300um
4. Slitting ceev: 10m / min, adjustable

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Roj teebEhluav taws xobSlitingMua mob

Specification

1 TOB-DYG-110Ib qauv roj teeb electrode slitting tshuab yog ib lub tshuab slitting semi-automatic rau kev npaj electrode ntawm cvlinder roj teeb thiab prismatic batteries nyob rau hauv R&D lub chaw soj nstuam thiab cov kab ntau lawm.2 Lub tshuab slitting tau slit electrode nrog dav txog 400mm, thiab nrog tiav slitting dav ntawm 20mm mus rau 400mm nrog txawv qauv cutter hniav.

3 Cov khoom siv no yog tsim rau rechargeable lithium roj teeb cathode thiab anode electrode ntawm longitudinal cutting the electrode ntawm lub hauv paus khoom yuav ua tau txhuas ntawv ci thiab tooj liab ntawv ci, hlais ntug huv si, siab accuracyno burr, nws yog ib qho tseem ceeb cov khoom nyob rau hauv lub phaj ua.

Qauv	Roj teeb Electrode Slitting MachineTOB-DYG-110A
Qhov chaw voltage	AC 110V -220V, Customized, 50HZ
Hwj chim	800W
Warranty	Ib xyoos txwv warranty thiab kev txhawb nqa lub neej
Slitting hom	Ib rab riam hobbing
Hom riam	Upper thiab qis puag ncig riam
Slitting dav	20-500 hli
Slitting thickness	100-300um
Hlob diam	80 hli
Slitting ceev	10m / min, Kho tau
Qhov Loj (L * W * H)	610 * 610 * 1100 hli
Qhov hnyav	200 KG
