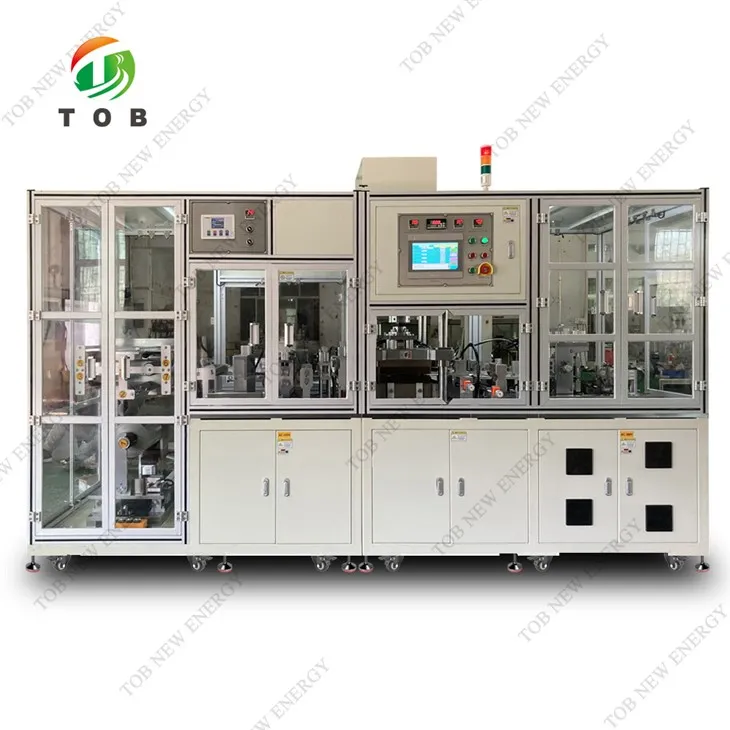

Tsis Siv Neeg Hnab Cell Case Forming Tshuab

1.Model: TOB-ACK-400
2.Txhua qhov ntev:: txog L3200 * W1000 * H2000 (MM)
3. Lub sij hawm them nyiaj: L / C, D / AD / P, T / T, Credit card, Western Union
4.Daim ntawv thov: Rau lub hnab ntim cov ntaub ntawv tsim
5.MOQ: 1set

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

L350mm * W200mm Tsis Siv Neeg Hnab Cell Case Forming Tshuab

Product Video

Specification

Khoom taw qhia

Cov cuab yeej ua tiav cov haujlwm ntawm phau ntawv pub mis ntawm aluminium laminated zaj duab xis yob, tsis siv neeg kho, tshem tawm plua plav los ntawm txhuam, tshem tawm zoo li qub, preheating ua ntej xuas nrig ntaus, xuas nrig ntaus, dov txiav ntawm ob sab, txiav sab saum toj, cais cov khoom pov tseg thiab cov khoom tiav, thiab lwm yam. .

Cov khoom siv ua haujlwm

Phau ntawv pub mis → Txuas platform → Tension tswj → plua plav tshem tawm → tshem tawm zoo li qub → Punching → Rolling txiav → Servo rub → Crosscutting mechanism → Cov khoom tiav tiav

Tag nrho cov qauv

Zuag qhia tag nrho qhov ntev: txog L3200 * W1000 * H2000 (MM), lub hau sab saum toj tuaj yeem raug tshem tawm, thiab qhov siab tom qab tshem tawm yog 1920mm.

Yam khoom	Specification
Qauv	TOB-ACK-400
Punching hom	Ib qho pwm punching ib lub hnab cell
Pub hom	Pub nyob rau hauv yob, tsis siv neeg kho, lub cev muaj zog unwinding, nro tswj.
Qhov loj ntawm aluminium laminated zaj duab xis	Dav Tsawg dua los yog sib npaug rau 350mm, puab txoj kab uas hla: 3 nti, sab nraud txoj kab uas hla ＜450mm
Kev tswj nruj	Aluminium laminated zaj duab xis nruj tswj yog hluav taws xob proportional valve ntxiv rau qis-kev sib txhuam lub tog raj kheej ntxiv rau potentiometer ua ke nrog servo lub cev muaj zog los tswj qhov nro.
Tso tawm hom	Chute discharge (cov ntaub ntawv pov tseg tau muab cais tawm), muab tawm los ntawm lub thawv khoom siv.
Qhov tseeb ntawm punching qhov tob	± {{0}}.1mm (plaub fab), lub vijtsam kov tuaj yeem teeb tsa qhov tseeb rau 0.01mm
Zuag qhia tag nrho punched dimension raug	± 0.15mm (pwm loj thiab clearance lav)
Max loj ntawm aluminium laminated zaj duab xis	L350mm * W200mm
Punching qhov tob hloov kho	Ntxiv gaskets rau ntawm pwm (servo kho qhov tob ntawm pwm punching)
Punch siab ntau yam	3T
Punching qauv	Servo xuas nrig ntaus
Pwm lub neej	1 lab lub sij hawm
Qhov tshwm sim ntawm cov ntaub ntawv punched	Cov ces kaum yog du yam tsis muaj wrinkles thiab pinholes, thiab nto yog du tsis concave convex pits, khawb, tawg, thiab lwm yam.
Hom kev thauj mus los	Servo thauj khoom (teem hauv kov npo)
Kev thauj khoom raug	± 0.1 hli
Crosscutter hom / txoj hauj lwm hloov hom	Txiav / servo hloov kho (teem hauv kov npo)
Txiav raug	± 0.2 hli
Cutter (tungsten steel) lub neej	1 lab lub sij hawm (kho tau)
Pwm hloov lub sijhawm	1-2h
Muaj peev xwm ntau lawm	Ntau dua lossis sib npaug rau 10ppm (ib qho pwm xuas nrig ib lub hnab ntawm tes)
