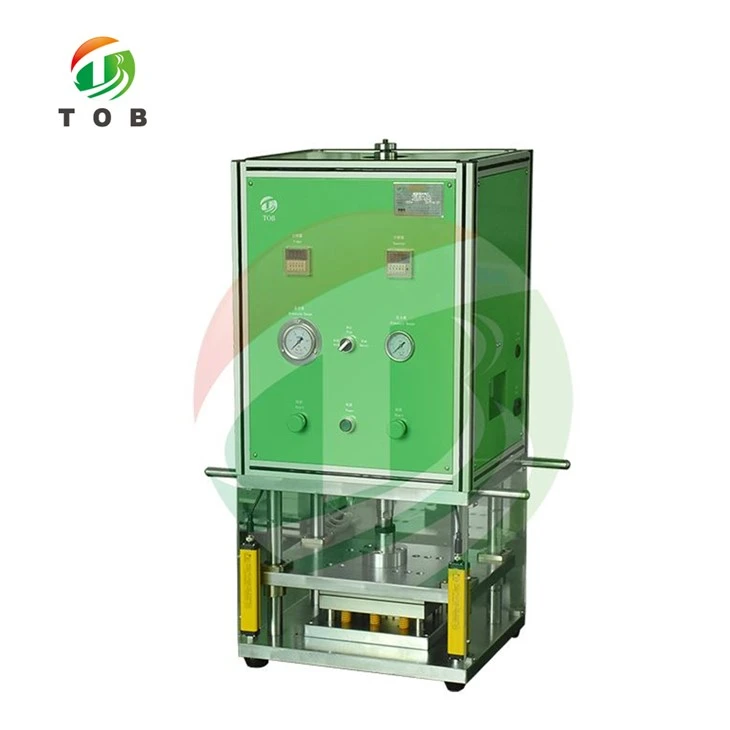

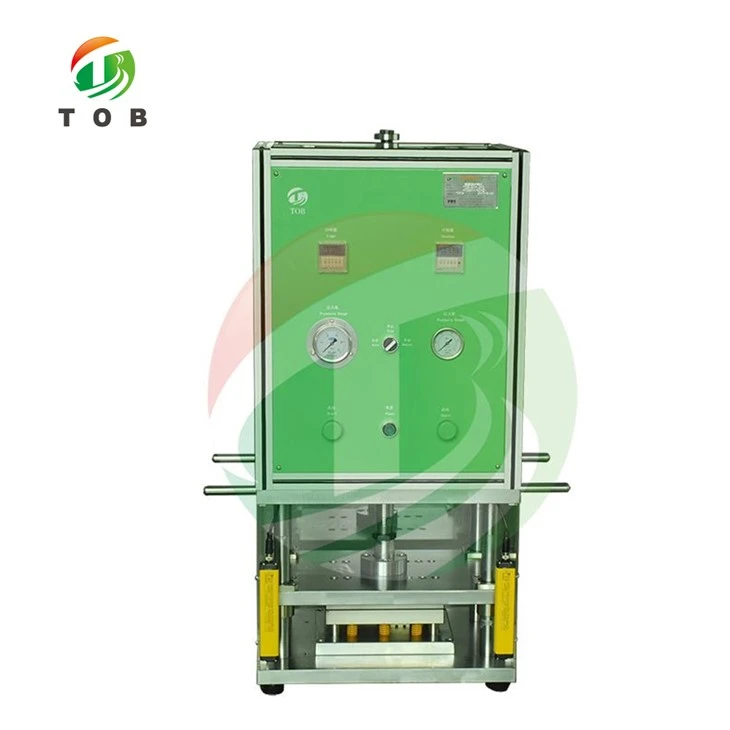

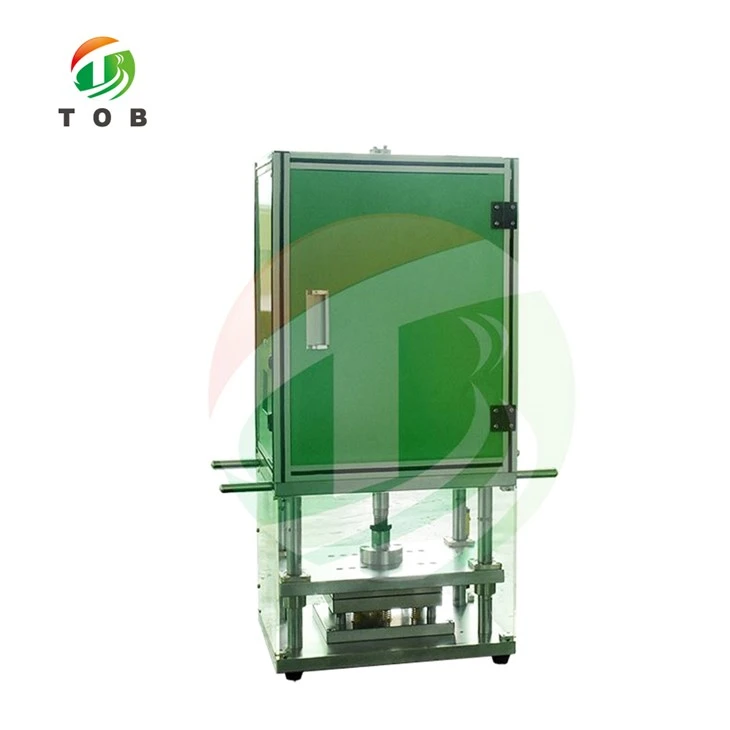

1 TOB-SCK-200/300 Battery Pouch Forming Machine yog siv rau lithium polymer roj teeb / hnab cell khob tsim nyob rau hauv cov kab ntau lawm ntawm lub hnab ntim roj teeb.
2 Lub tshuab yog siv los npaj cov ntaub ntawv polymer ua los ntawm Aluminium Laminated Films.
3 Qhov chaw kuaj no aluminium laminated zaj duab xis hnab ntim tshuab yog tsim los nrog lub caij nplooj ntoos hlav pwm yooj yim nrog qhov me me, uas yog qhov tsim nyog rau kev tshawb fawb hauv chav kuaj. Yog tias peb xav ua kev tsim khoom lossis Pilot scale ntau lawm kab, Peb tuaj yeem xaiv TOB-CK150 Model lossis lwm cov qauv tsim.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Polymer Battery Pouch Cell Case/Cup Forming Machine for Aluminium-Laminated Films

Product Video

Specification

1 TOB-SCK-200 Roj Teeb Lub Hnab Ua Tshuab yog siv rau lithium polymer roj teeb / hnab cell khob tsim hauv cov kab ntau lawm ntawm cov roj teeb lub hnab.

2 Lub tshuab yog siv los npaj cov ntaub ntawv polymer ua los ntawm Aluminium Laminated Films.

3 Qhov no labaluminium laminated zaj duab xis hnab tsim tshuab yog tsim los nrog lub caij nplooj ntoos hlav pwm yooj yim nrog lub me me, uas yog tsim nyog rau kev tshawb fawb hauv chaw kuaj. Yog tias peb xav ua kev tsim khoom lossis Pilot scale ntau lawm kab, Peb tuaj yeem xaiv TOB-CK150 Model lossis lwm cov qauv tsim.

Qauv	Lab Polymer Roj Teeb Lub Hnab Ua Tshuab TOB-SCK-200
Qhov chaw voltage	AC 220V / 50HZ
Hwj chim	300W
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej

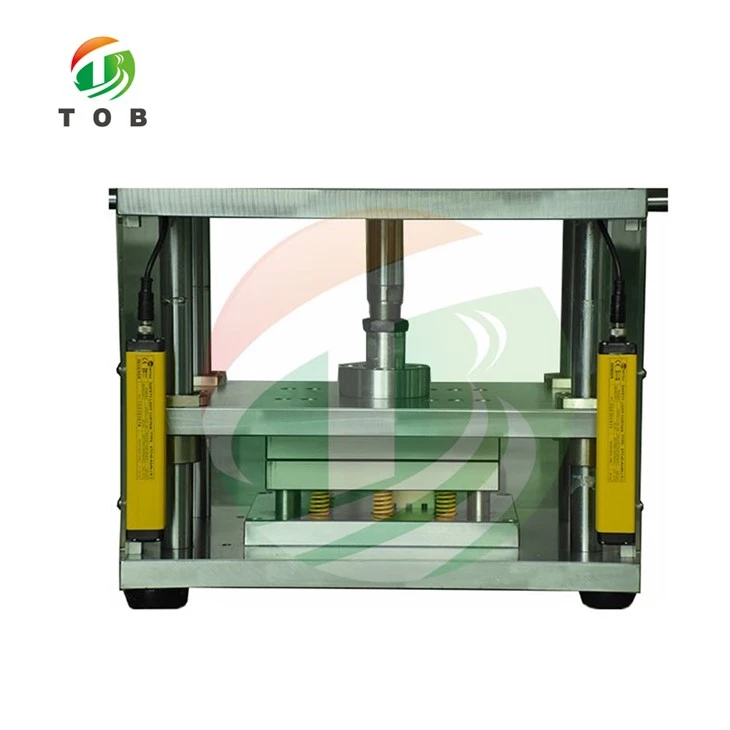

Qhov zoo	1 Cov qauv ntawm kev taw qhia tus pin, swb nce thiab nqis kom du nrog siab precision 2 Hloov pwm, kho qhov tob tensile yooj yim, sai 3 Siv cov tshuaj ntsuam thiab kev tiv thaiv casing, lav kev nyab xeeb 4 Lub zog siab ntawm chrome steel thiab aluminium alloy, nto roasts cov xim ua los ntawm kev tiv thaiv ib puag ncig electroplating
Haum aluminium zaj duab xis thickness	0 1-0.2 hli
Haum aluminium zaj duab xis loj	240 * 160mm (L * W), customized, nrog punching qhov tob Tsawg dua los yog sib npaug rau 6mm
Max. Khob Depth rau Punch	Ib lub qhov punching qhov tob Tsawg dua los yog sib npaug li 6 hli
Tso zis	200-400EA/H
Tso zis siab	3T
Cua qhov chaw	0 5-0.7MPa
Cov khoom siv pwm	S136 Tuag steel
Qhov Loj (L * W * H)	460 * 320 * 925mm
Qhov hnyav	Txog 150 kg
