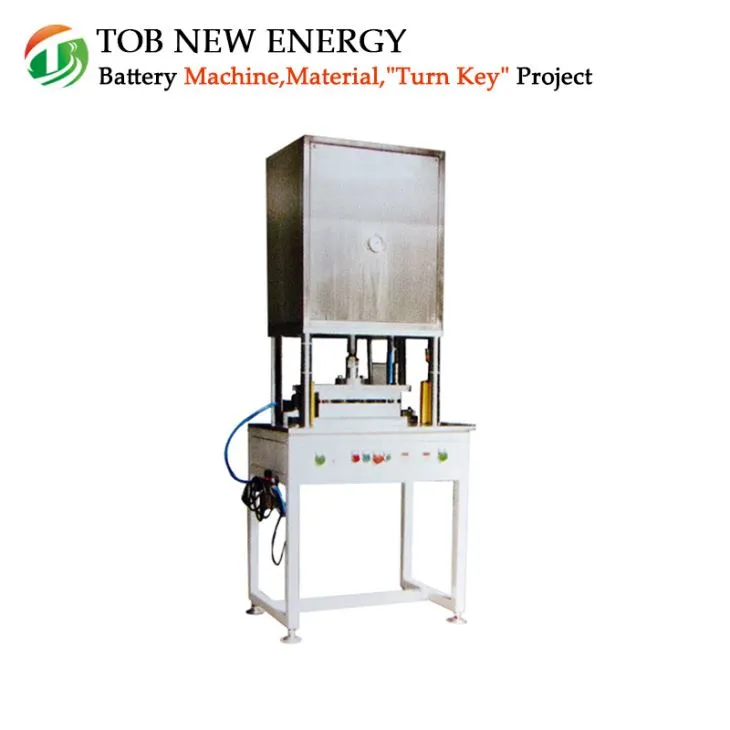

Roj teeb txoj kev tshuab

1. Dimension: 800 * 500 * 1850mm
2.Suitable aluminium zaj duab xis loj: 200 * 200mm
3.MOQ: 1set
4. Nyhav: txog 220kg

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Roj teeb txoj kev tshuab rau hnab Cell nyob rau hauv Ob chav kuaj thiab ntau lawm kab

Specification

1 .TOB-CXJ 200Pouch Forming Machine yog siv rau lithium polymer roj teeb / hnab cell khob tsim nyob rau hauv lub chaw soj nstuam thiab cov kab ntau lawm ntawm kev ua lub hnab roj teeb.

2 .Lub tshuab yog siv los npaj cov ntaub ntawv polymer ua los ntawm Aluminium Laminated Films.

3 .This lab txhuas laminated zaj duab xis hnab tsim tshuab yog tsim los nrog kev ruaj ntseg grating tiv thaiv ntaus ntawv,

Yog hais tias nrog cov neeg khiav dej num hla qhov kev ruaj ntseg thaum muaj xwm ceev nres tau txais.

Qauv	200 * 200 * 6mm Hnab txoj kev tshuab.TOB-CXJ 200
Qhov chaw voltage	AC 220V / 110V, 50 / 60HZ
Hwj chim	100W
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej
Qhov zoo	1 Lub tshuab xuas nrig ntaus tshuab no siv lub tshuab pneumatic, hluav taws xob Cheebtsam, tswj lub tog raj kheej siab stamping txoj kev pwm. 2 Pwm siv cov khoom zoo hlau tuag, ncab tawm cov khoom contour artistic, round thiab du. 3 Chaw ua hauj lwm chaw ua hauj lwm yog nruab nrog Safety grating tiv thaiv ntaus ntawv, Yog hais tias nrog cov neeg khiav dej num hla qhov kev ruaj ntseg thaum muaj xwm ceev nres tau txais.
Haum aluminium zaj duab xis tuab	0 1-0.2 hli
Haum aluminium zaj duab xis qhov loj	200 * 200mm (L * W), customized, nrog punching qhov tob Tsawg dua los yog sib npaug rau 6mm
Tso zis	200-450EA/H
Tso zis siab	0-5T, Kho tau
Cua qhov chaw	0 5-0.7MPa
Cov khoom siv pwm	S136 Tuag steel
Qhov Loj (L * W * H)	800 * 500 * 1850 hli
Qhov hnyav	Txog 220 kg
