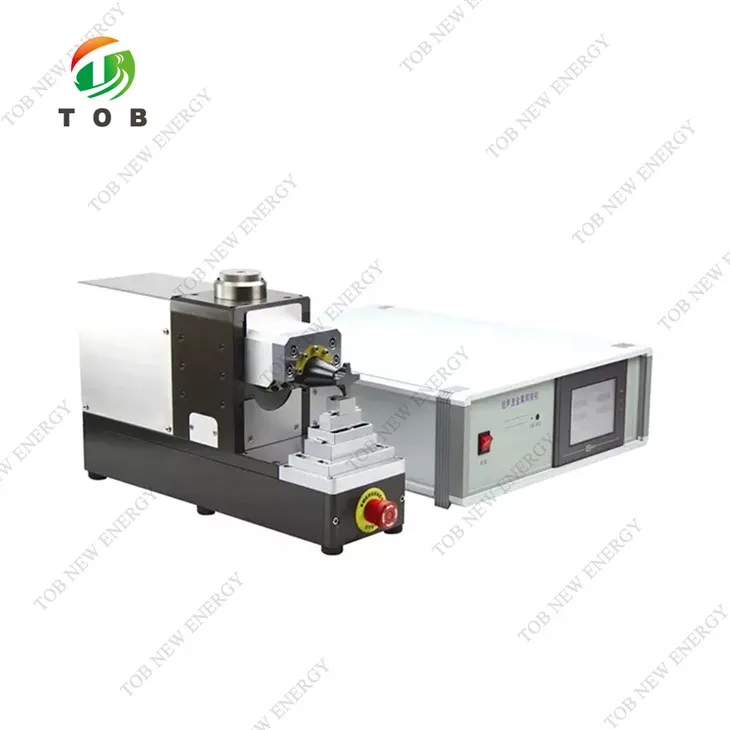

3600W Ultrasonic Hlau Vuam Tshuab

Muaj lub tshuab hluav taws xob nrog zaus tsis siv neeg taug qab thev naus laus zis, cov khoom siv hluav taws xob zoo, hnav-tiv taus vuam taub hau.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

3600W Ultrasonic Hlau Vuam Tshuab

Specification

Khoom piav qhia:

1.Nws muaj lub tshuab hluav taws xob nrog zaus tsis siv neeg taug qab tshuab, cov khoom siv hluav taws xob zoo, hnav ~ resistant vuam taub hau.

2. Khoom siv yog tus naj npawb txoj haujlwm qauv, siab, amplitude, vuam lub sij hawm thiab lwm yam parameters siv tag nrho ~ digital teeb thiab kev tswj;

3.Qhov kev siv lub zog, lub sijhawm, kev siv vuam zoo heev;

4.Welding lub zog ntawm lub sijhawm cov ntaub ntawv tau txais, cov duab digital, builtin hluav taws xob ntsuas, ntsuas qhov ntsuas qhov siab ntawm qhov vuam.

5.Txhua yam haujlwm no tau ua tiav ntawm lub vijtsam kov.

6. Cov cuab yeej ua haujlwm raug, ruaj khov thiab tswj cov txheej txheem yooj yim heev.

Device Parameters thiab configuration:

Qhov hnyav	45 KG
Case loj	480 x 600 x 180 mm
Khib Dimensions	150x560x350mm
Hwj chim	220V (ib theem)
Cov kev xav tau ntawm huab cua	Ntau dua lossis sib npaug li 5 .0kgf / cm²
Ua haujlwm zaus	20KHZ (tsis siv neeg taug qab, tsis muaj hloov kho)
Nominal zog	3600W (muaj peev xwm tiag tiag 4.5KW); siab tshaj plaws: 3000N
Lwm yam: 1,5.7 nti kov npo tag nrho cov tswj digital (nrog rau lub zog, qhov siab, lub sijhawm ntawm peb tswj hom; pneumatic NC; 100 yam tsis tau khaws cia hu tau yooj yim heev.); 2, Ntau yam kev tiv thaiv kev ua haujlwm (dhau tam sim no, kev tiv thaiv zaus), khau raj tsis siv neeg kuaj pom; 3, Digital stepless amplitude modulation (20 ~ 40μm ib nrab nthwv dej amplitude yog tsis tu ncua adjustable kom haum rau ntau yam ntaub ntawv thiab specifications).
