Pneumatic Tuag Cutter Rau Electrode



Pneumatic Tuag Cutter rau Electrode

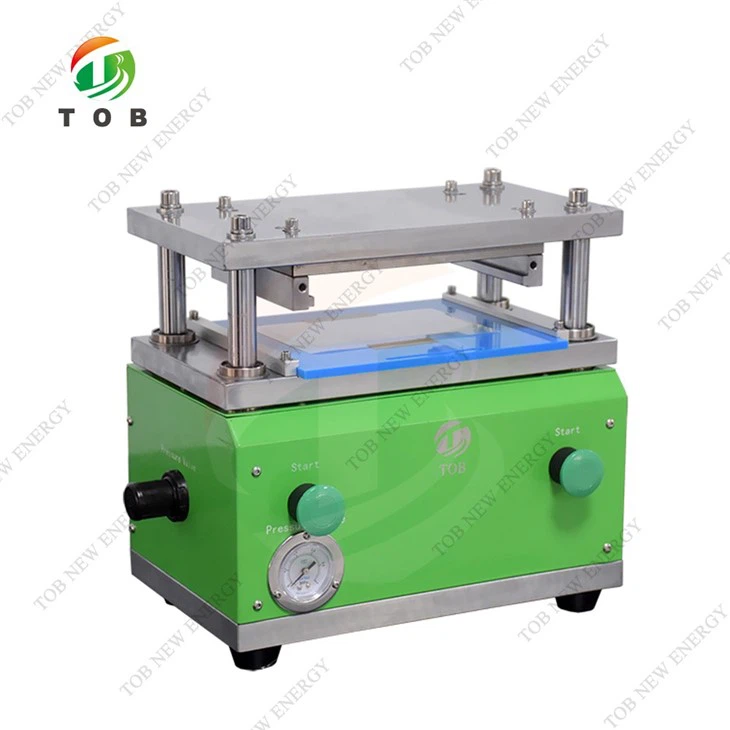

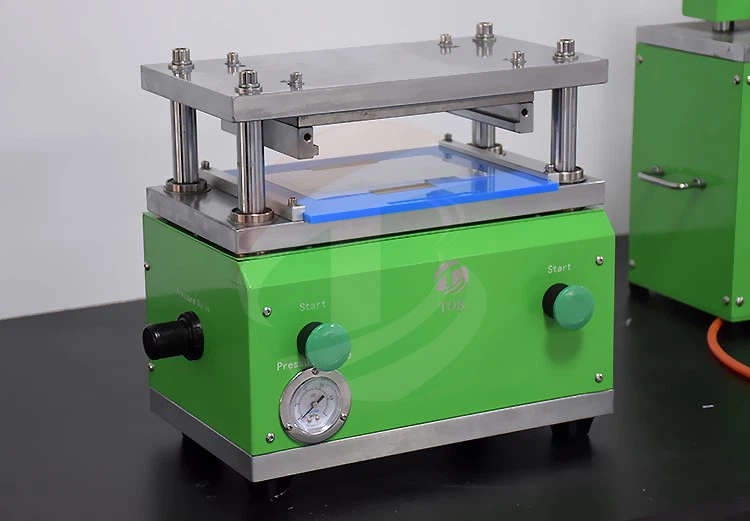

TOB-MC150 pneumatic tuag cutter yog tsim rau tuag-txiav ntawm zoo thiab tsis zoo electrodes ntawm roj teeb, xuas nrig ntaus ntawv hom electrode los ntawm pneumatic txoj kev thiab yuav muab tso rau hauv lub hnab looj tes box.



Cov yam ntxwv tseem ceeb:

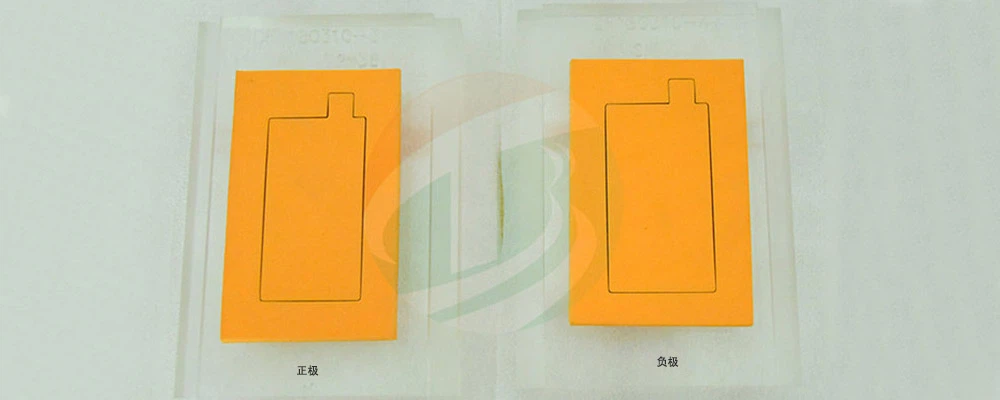

Daim ntawv hom electrode pub, riam template rau tuag txiav, tuaj yeem muab tso rau hauv lub hnab looj tes.

Yooj yim hloov lub cutter.

Lub neej ntev ntev, siv ib txwm siv ntau dua lossis sib npaug li 30,000 zaug.

Tsis muaj qhov tsis zoo xws li burrs, hmoov poob, thiab indentation.

Adopts plaub ncej qauv, nce thiab nqis plam du thiab siab precision.

Exquisite tsos, yooj yim rau kev khiav lag luam, nyab xeeb thiab txhim khu kev qha, me me.



Kev piav qhia txheej txheem ua haujlwm:

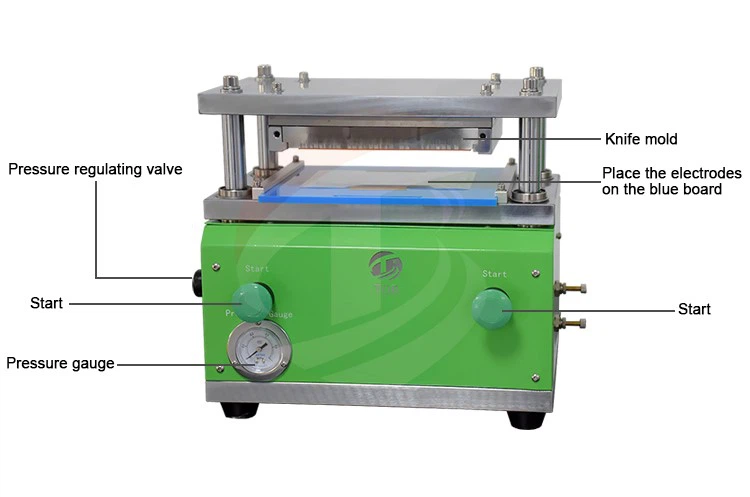

Muab cov electrode tso rau hauv qhov tuag-txiav txoj haujlwm, tom qab ntawd nias lub valve pib, lub tog raj kheej tsav cov riam txiav txiav txiav txiav txiav cov electrode rau hauv cov duab, thiab dua li tshem tawm cov electrode kom tiav.



Technical Specifications

Qauv	Pneumatic Roj teeb Electrode Tuag Cutter TOB-MC150
Vertical burr	Tsawg dua los yog sib npaug li 12μm
Kab rov tav burr	Tsawg dua los yog sib npaug li 20μm
Max punching loj	L150 (xws li TAB txoj haujlwm) * W100mm (tuaj yeem kho raws li qhov xav tau)
Punching raug	± 0.1 hli
Punching siab	Max. 1T (0.5MPa compressed cua) Punching lub roj teeb electrode pom zoo siab 500Kg
Mob stroke	35mm ib
Compressed cua	0.5MPa Yog tias muab tso rau hauv lub hnab looj tes, cov roj siv tau zoo ib yam li cov khoom siv hauv lub hnab looj tes.
Qhov Loj (L * W * H)	350 * 230 * 300 hli
Qhov hnyav	32kg ua
Warranty	Ib xyoos txwv warranty thiab kev txhawb nqa lub neej
