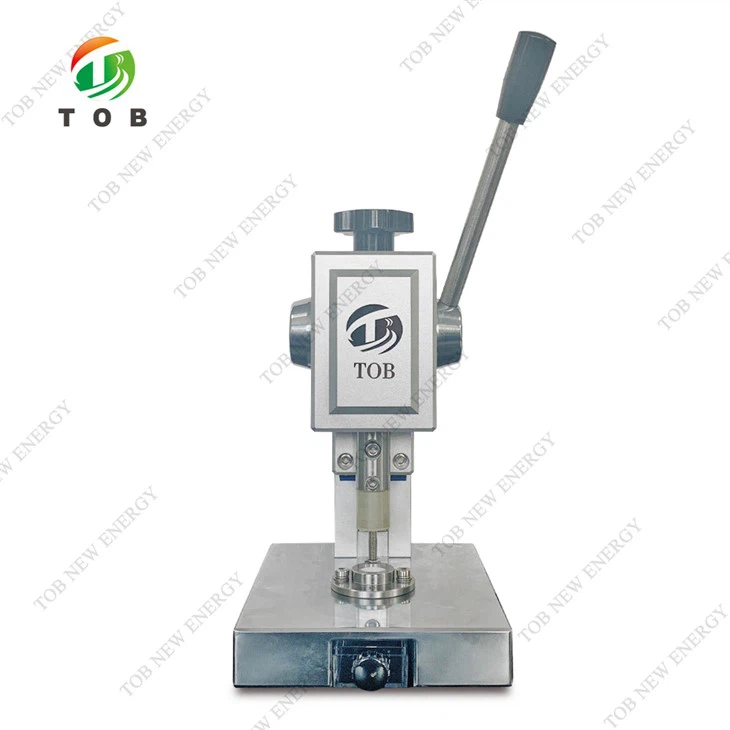

Phau ntawv Punching Tej Tshuab
2.Punching loj: φ8-24mm tuaj yeem xaiv
3.Punching stroke: 25mm
4.Punching thickness: 0 005-0.5 hli electrode thiab cais
5. Dimension: 110 * 150 * 235mm
6. Nyhav: Txog 6 kg

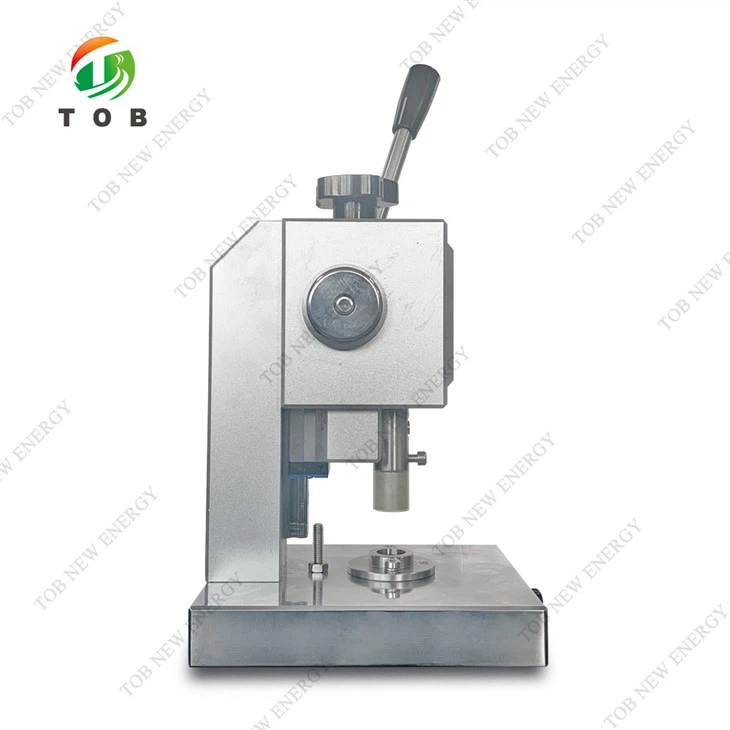

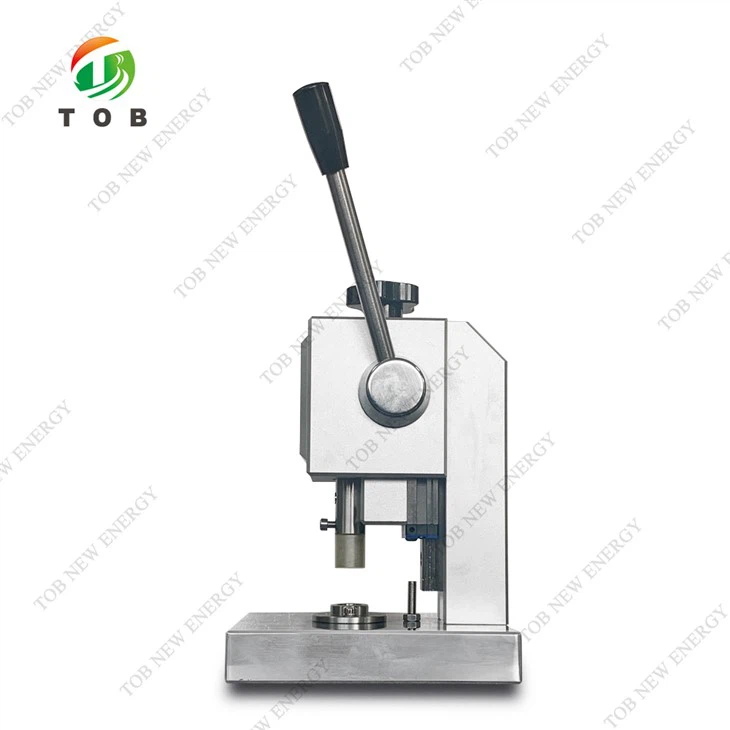

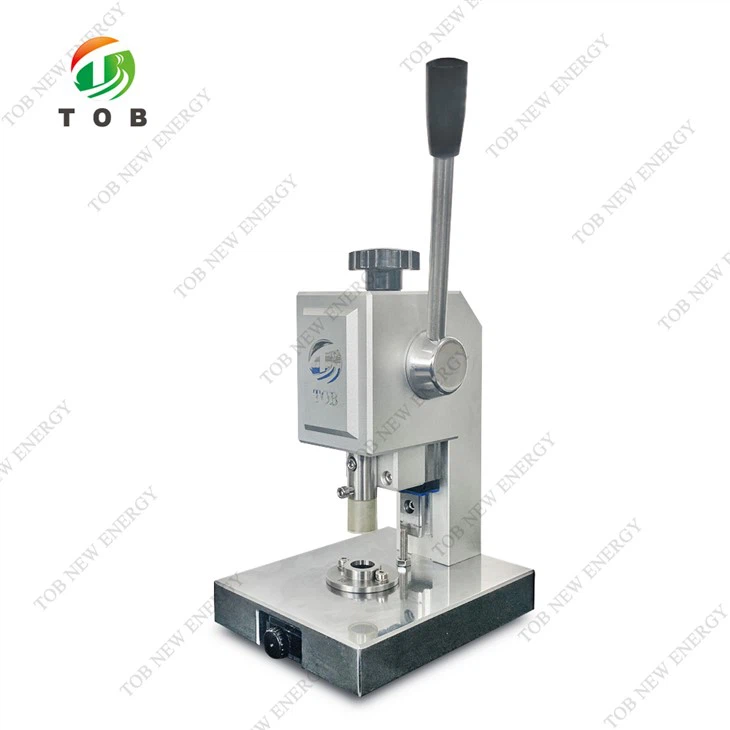

Precision Manual Punching Txiav Tshuab Rau Npib Cell Lab Tshawb Fawb
Product Video
Specification

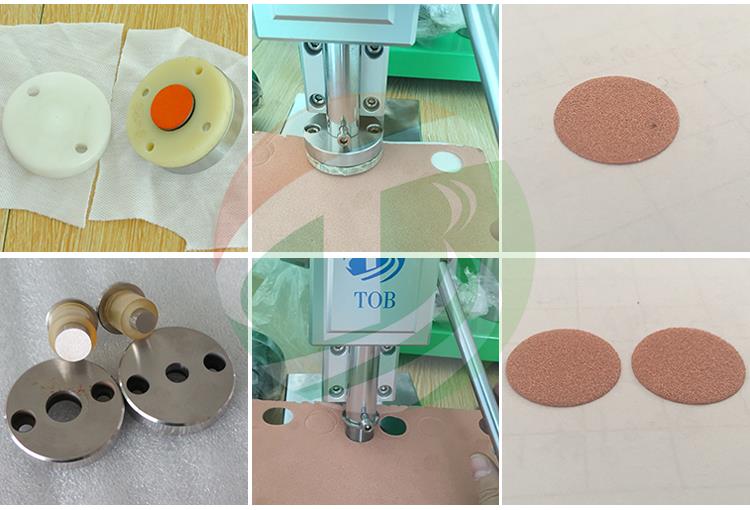

CovNpib cell disc cutter tshuabyog siv rau npib cell electrode xuas nrig ntaus nrog customized txiav tuag. Nws txoj haujlwm yog yooj yim nrog lub teeb yuag, cov txiaj ntsig discs tuaj yeem siv los ua electrode / cais discs ntawm kev sib cais ntawm tes thiab npib ntawm tes rau kev tshawb fawb roj teeb.
|
Tshuab qauv |
Disc cutter rau npib cell electrode punch TOB-CP60 |
|
Kev khiav haujlwm |
Phau ntawv |
|
Punching loj |
Standard configuration: φ14mm xuas nrig ntaus tuag, φ8-24mm tuaj yeem xaiv |
|
Daim ntawv thov |

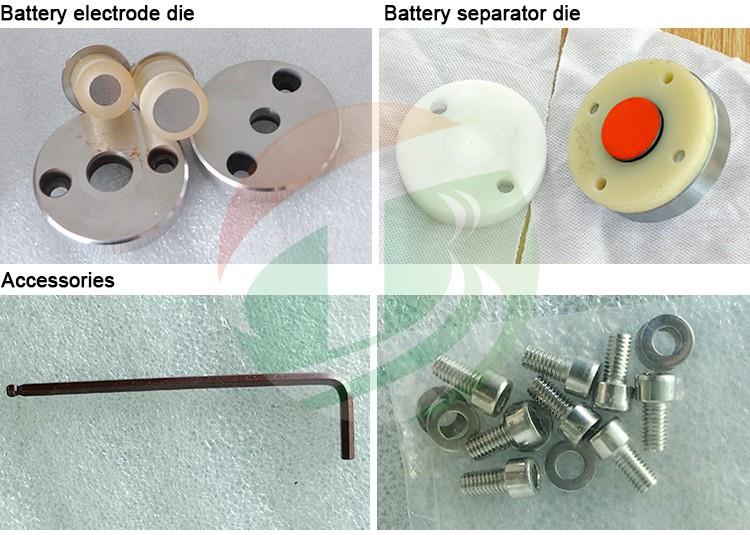

Rau ua CR2016, CR2025 lossis / thiab CR2032 npib roj teeb ntawm tes, peb yuav xav tau yam tsawg kawg peb txiav tuag: A 14mm (rau cov ntaub ntawv tsis zoo, uas yog 16.5mm inch) B 16mm (rau cov ntaub ntawv zoo, uas yog 20mm inch) C 19 hli (rau cais cais cov electrodes) Rau CR2450 npib cell: A18mm txiav tuag rau txiav tsis zoo electrode B 20mm txiav tuag rau txiav zoo electrode C 23mm txiav tuag rau electrode lossis cais disc. |
|
Punching mob stroke |
25 hli |
|
Punching thickness |
0 005-0.5 hli electrode thiab cais |
|
Qhov zoo |
Kev ua haujlwm yooj yim Lub teeb nyhav Ob leeg txiav electrode thiab separator |
|
Dimension |
110 * 150 * 235 hli |
|
Qhov hnyav |
Txog 6 kg |
|
Warranty |
Ib Xyoo txwv warranty nrog kev txhawb nqa lub neej |

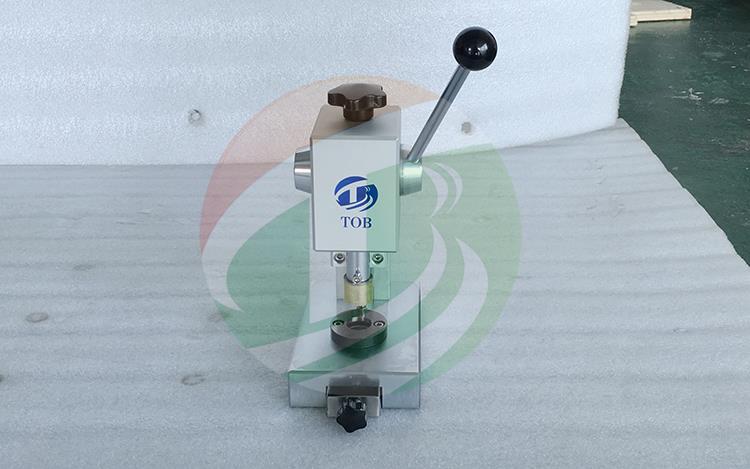

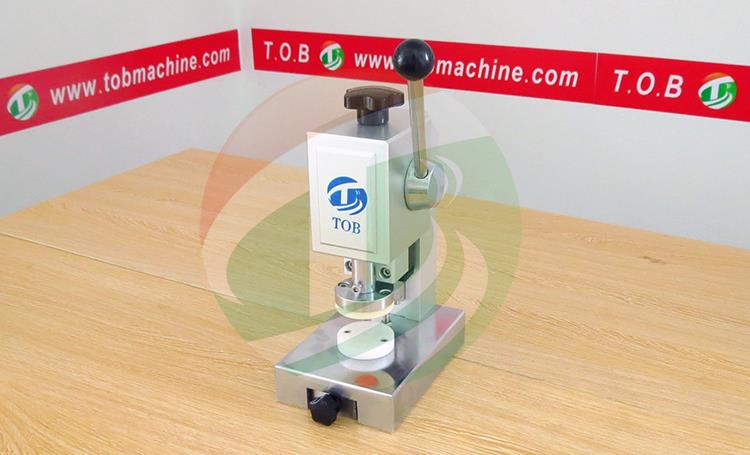

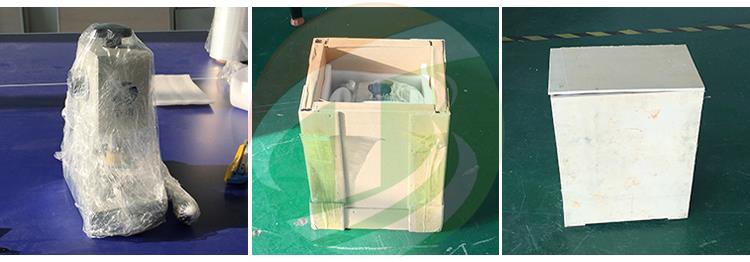

Khoom Qhia
Peb Daim Ntawv Pov Thawj
Ntau Daim Ntawv Pov ThawjDaim ntawv pov thawj Patent
ISO 9001 Cov
CE Daim Ntawv Pov Thawj
