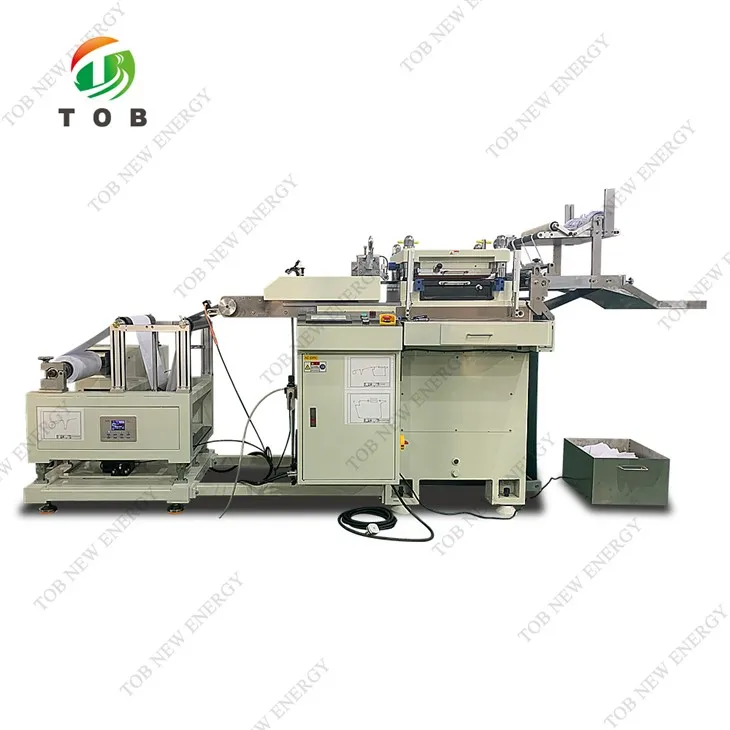

Tsis Siv Neeg Electrode Tuag Txiav Tshuab
2.Maximum ua cheeb tsam: Tsis siv neeg xuas nrig ntaus 340 * 280mm (kev tuav xuas nrig ntaus 350 * 350mm)
3. Cov khoom siv khiav ceev: 1000-9000times/h
4.Die thickness requirements:thickness>8mm ib
Polymer lithium roj teeb Tsis siv neeg electrode tuag txiav tshuab rau hnab cell
Product Video
Specification
Cov ntsiab lus ntawm cov khoom siv:
1.1. Cov khoom siv yog tsim rau tsis siv neeg tuag-txiav ntawm lithium roj teeb electrodes.
1.2. Kev ua haujlwm:
Cov khoom siv electrode coil yog tswj los ntawm zaus hloov lub cev muaj zog kom tsis txhob raug mob, thiab xa mus rau lub tshuab tuag txiav los ntawm highland barley ntawv circulating conveyor siv uas tau tsav los ntawm servo lub cev muaj zog los ntawm qhov nro ntab cov menyuam thiab cov kev sib txawv ntawm kev kho qhov tseeb. Tom qab tuag-txiav, ntug kev sib sau tshuab sau cov khoom ntug, thiab cov electrode cia li ntws mus rau hauv cov khoom siv tais.
Technology tsis
|
Yam khoom |
Parameter |
|
Cov khoom xa tuaj loj specification |
Tsawg dua lossis sib npaug li 300mm dav, Tsawg dua lossis sib npaug rau ￠400 txoj kab uas hla |
|
Yam khoom thickness |
20 ~ 180 hli |
|
Cov khoom tsim nyog tus nqi |
Ntau dua lossis sib npaug li 98% |
|
Ceev |
30-40 zaug / min |
|
Khoom ua txhaum tus nqi |
Tsawg dua lossis sib npaug li 5% (kev ua txhaum los ntawm lub tshuab no nkaus xwb) |
|
Qhov tseeb |
Punching loj Less dua los yog sib npaug rau {{0}}.1mm, burr Tsawg dua los yog sib npaug rau 0.015mm |
|
Fais fab mov |
AC220 ± 10% |
|
Hwj chim |
Tsawg dua lossis sib npaug li 4.5KW |
|
Compressed cua |
Ntau dua lossis sib npaug rau 0.6MPa |
|
Qhov hnyav |
2T |
|
Dimension |
3200 * 1250 * 1500mm, LxWxH |
Khoom Qhia
Peb Daim Ntawv Pov Thawj
Ntau Daim Ntawv Pov ThawjDaim ntawv pov thawj Patent
ISO 9001 Cov
CE Daim Ntawv Pov Thawj
