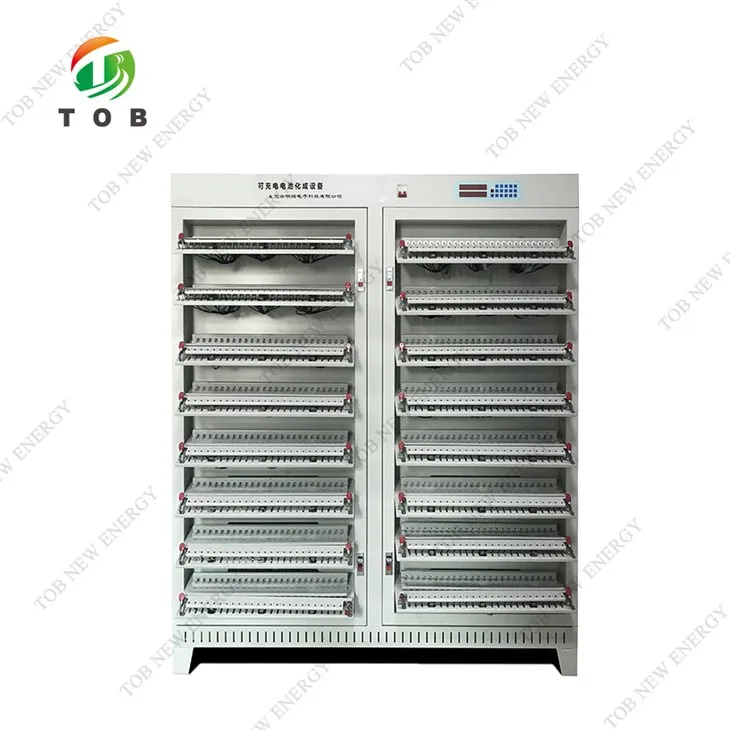

5V1A Cylindrical Cell Tsim Tshuab

Model: TOB-ED800-1K
Tus naj npawb ntawm cov khoom siv raws: tag nrho ntawm 800 raws hauv tag nrho lub tshuab.
Workflow tswj hom: tag nrho lub tshuab tswj.
Charging hom: tsis tu ncua tam sim no, qhov voltage tsis tu ncua.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

5V1A roj teeb tsim thiab muab qhab nia tshuab

Specification

1.Qhov yooj yim muaj pes tsawg leeg

Lub tshuab tsim lub roj teeb no yog tsim los ntawm lub computer, kev sib txuas lus interface thiab roj teeb tsim txee. Lub roj teeb tsim txee yog tsim los ntawm lub phaj lub cev nrog rau cov khoom siv thiab cov khoom siv, qhov tam sim no tsis tu ncua, qhov hluav taws xob tsis tu ncua, ib leeg-chip microcomputer thiab tswj vaj huam sib luag.

2. Kev ua haujlwm tseem ceeb

Tus naj npawb ntawm cov khoom siv channel:tag nrho ntawm 800 channel hauv tag nrho lub tshuab.

Workflow tswj hom:tag nrho tshuab tswj.

Charge hom:tsis tu ncua tam sim no, tsis tu ncua voltage.

Kev them nqi txiav tawm:sij hawm.

Tsis tu ncua tam sim no thiab qhov voltage tsis tu ncua:Txhua lub roj teeb muaj ib qho kev ywj pheej tsis tu ncua thiab qhov hluav taws xob tsis tu ncua, thiab nws tus kheej Circuit Court tsis cuam tshuam rau ib leeg. PWM them lub zog-txuag hom yog siv los txo cov cua sov thiab siv hluav taws xob zoo.

Kev tiv thaiv muaj nuj nqi:Txhua lub roj teeb muaj lub zog tiv thaiv kev tiv thaiv kev ua haujlwm kom ntseeg tau tias txhua lub roj teeb raug them rau qhov yuav tsum tau muaj qhov voltage.

Tam sim no thiab voltage settings:Kev them nyiaj tam sim no yog tswj hwm hauv nruab nrab thiab hloov kho, uas tuaj yeem teeb tsa los ntawm khoos phis tawj software lossis keyboard ua haujlwm.

Txheej txheem txheej txheem:Lub khoos phis tawj sab saud tuaj yeem teeb tsa 20 kauj ruam tsis, thiab them nyiaj thiab lwm yam haujlwm tuaj yeem ua tiav offline los ntawm kev ua haujlwm ntawm cov keyboard.

Kev tiv thaiv hluav taws xob:Nrog lub hwj chim-down tiv thaiv muaj nuj nqi, thawj qhov kev ua haujlwm tuaj yeem ua haujlwm txuas ntxiv tom qab hu.

Kev ntsuas hluav taws xob:Tom qab them nyiaj, cov xov tooj hluav taws xob qis tuaj yeem kuaj xyuas.

3. Cov yam ntxwv tseem ceeb

Channels No.	800
Workflow tswj txoj kev	Tag nrho Cabin tswj (Ib qho taw qhia tsis tu ncua tam sim no, hom tsis tu ncua voltage)
Kev them nyiaj yug qauv	Them lub zog-txuag hom: tsis tu ncua tam sim no, tas li voltage them
Kev them nyiaj txiav tawm	Sijhawm
Tam sim no ntau yam	Them 3mA-1A, daws teeb meem 1mA
Qhov tseeb tam sim no	±0.1% RD
Kev ntsuas hluav taws xob	0 ~ 4999mV
Lub Sijhawm Teem Sijhawm	0~ 999 feeb tuaj yeem teem caij sib txawv, lub sijhawm ntsuas yog min
Lub sij hawm raug	Tsawg dua lossis sib npaug rau ±0.1 feem pua
Clamp hom	Cylindrical plaub-xaim txoj kev ceev thawb clamp hom (nrog bracket)
Txhawb hom roj teeb	Cylindrical Cell
Clamp qhov siab adjustable ntau yam	Cylindrical Cell
Lub zog ua haujlwm	AC220V ± 10 feem pua, 50HZ, Kev siv hluav taws xob tsawg dua lossis sib npaug li 5KW
Txoj kev sib txuas lus	RS232, Baud tus nqi 4800
Khoom siv raws li qhov loj (mm)	1650 (L) × 500 (W) × 1914 (H) (Rau siv xwb, cov khoom siv tiag tiag yuav tsum yeej)
Ua haujlwm ib puag ncig	Kub: 0-40 degree , ntsig txog qhov kub thiab txias tsawg dua lossis sib npaug li 85 feem pua
Puv load ua haujlwm tam sim no	Theem kab mus txog 30A
Khoom hnyav	Txog 200 kg

4. CP System lub ntsiab configuration yuav tsum

Qhov tsawg kawg nkaus configuration ntawm lub computer system: CPU saum toj no P4, nco saum toj no 2G, hard disk qhov chaw saum 200G, EGA/VGA xim zaub, ib CD-ROM, ib nas, MicrosoftTM Windows XP los yog saum toj no operating system, ib tug muaj RS232 serial kev sib txuas lus chaw nres nkoj, Windows txhawb lub tshuab luam ntawv. Lub khoos phis tawj yuav tsum tau npaj los ntawm tus neeg siv, thiab tus naj npawb ntawm microcomputer tshuab tau txiav txim siab raws li qhov xav tau tiag tiag.
