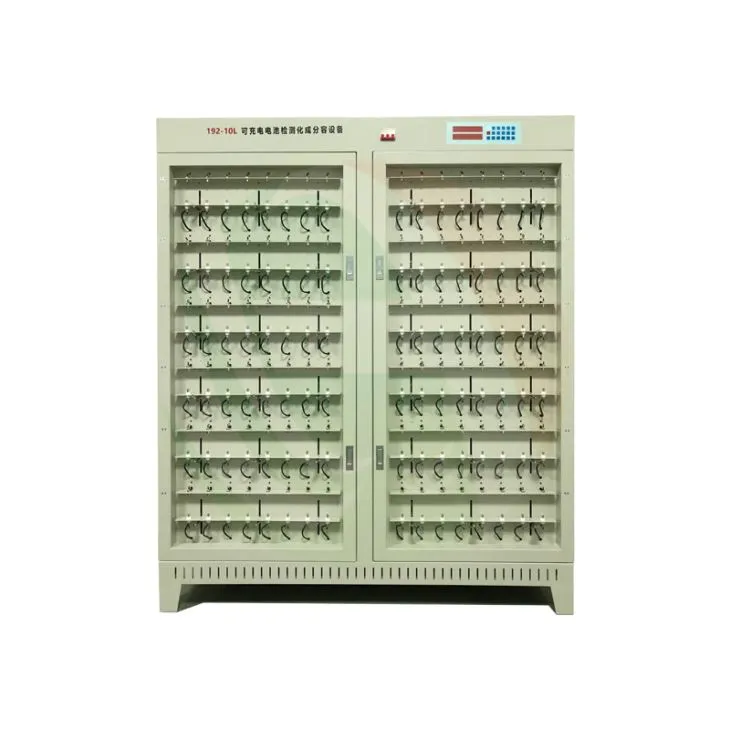

Battery Charge Tester

Model: TOB-192-10L
Channel No.: 192
Kev ntsuas hluav taws xob ntau: 0 ~ 5V, Kev daws teeb meem 1mV
Tam sim no ntau yam: Them: {{0}}.05-10A, Tawm :0.05-10A, daws teeb meem: 1mA

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

5V10A Roj teeb Charger thiab Discharge Tester Nrog 192 Channel

Specification

1. Tshuab piav qhia

TOB-192-10L Cov cuab yeej feem ntau yog tsim los ntawm kev sib txuas lus sib txuas lus thiab lub txee ntsuas roj teeb. Lub roj teeb kuaj lub txee yog tsim los ntawm cov roj teeb clamp thiab lub phaj lub cev rau qhov chaw teeb tsa, qhov tsis tu ncua tam sim no qhov hluav taws xob tsis tu ncua, kev tswj hwm kev sau npe, ib qho piv txwv Circuit Court, ib qho chip microcomputer thiab tswj vaj huam sib luag.

2. Lub ntsiab feature

1. Txhua yam khoom siv tuaj yeem ua qhov tam sim no tsis tu ncua, qhov nqi hluav taws xob tas li thiab qhov tso tawm tam sim no tsis tu ncua rau 192 pcs ntawm tes uas nyob hauv qhov hluav taws xob ntau.

2. Tsis tu ncua tam sim no-tsis tu ncua voltage fais fab mov, tas li tam sim no mus tas li voltage hloov yam tsis muaj kev cuam tshuam, tshwj xeeb tshaj yog haum rau lithium ion roj teeb uas yuav tsum tau them

3. Cov cuab yeej siv AVR ib leeg-chip computer ua qhov chaw tswj, thiab koom tes nrog cov khoom siv hluav taws xob peripheral, uas tuaj yeem tswj tau los ntawm lub khoos phis tawj sab saud. Thaum txuas nrog lub khoos phis tawj, qhov ua tiav ntawm kev them nqi thiab tawm qhov nkhaus ntawm txhua txoj kev tuaj yeem raug cawm, lossis nws tuaj yeem raug cais tawm ntawm lub khoos phis tawj sab saud thiab ua haujlwm los ntawm kev tswj hwm. Tsis tu ncua tam sim no tsis tu ncua voltage them, tas li tam sim no paug kuaj, sorting los ntawm lub sij hawm, thiab lwm yam.

4. Txhua lub roj teeb muaj nws tus kheej tsis tu ncua tam sim no thiab qhov hluav taws xob tsis tu ncua, thiab lub voj voog tus kheej tsis cuam tshuam rau ib leeg.

5. Ib lub teeb ci LED tau teeb tsa rau ntawm txhua lub roj teeb fixtures raws li cov xwm txheej ua haujlwm, thiab thaum qhov kev tso tawm tiav lawm, nws tuaj yeem siv los qhia txog kev xaiv lub roj teeb.

6. Kev tshawb nrhiav lub sijhawm tiag tiag txhua lub roj teeb voltage, thaum them nyiaj, thawj zaug them tam sim no, thaum lub roj teeb hluav taws xob nce mus txog tus nqi teev, nws yuav hloov mus rau qhov tsis tu ncua voltage them, thaum lub sij hawm teem los yog tam sim no qhov kev txiav txim siab txaus siab, them nyiaj xaus . Thaum lub sijhawm tam sim no raug tso tawm, thaum lub roj teeb hluav taws xob qis dua li tus nqi teev, qhov kev tawm mus tas li thiab cov teeb pom kev sib thooj roj teeb teeb.

7. Nrog lub hwj chim-down tiv thaiv muaj nuj nqi, thawj qhov kev ua haujlwm tuaj yeem ua haujlwm txuas ntxiv tom qab lub zog rov qab

8. Lub hwj chim raj siv 50N06, uas yog tsim rau cov roj teeb uas yuav tsum tau txo qis voltage, xws li lithium ion phosphate roj teeb.

9. Lub khoos phis tawj sab saud tuaj yeem teeb tsa 32 cov kauj ruam ua haujlwm thiab 256 lub voj voog. Txhua lub khoos phis tawj sab saud tuaj yeem txuas 1 mus rau 15 teeb ntawm ib qho nti microcomputer system.(qhia hauv qab 10 teeb)

10. Txhawb software nta

1). Siv lub graphical lag luam interface los tso saib cov ntaub ntawv xws li voltage, tam sim no, lub sij hawm, thiab muaj peev xwm ntawm txhua lub roj teeb, thiab tso saib cov xwm txheej ua hauj lwm thiab txawv txav nyob rau hauv ntau yam xim.

2) Arbitrary segmented roj teeb muaj peev xwm qhia tau (txog 100 ntu)

3) Cov ntaub ntawv cov ntsiab lus tuaj yeem raug kaw raws li qhov hloov pauv ntawm qhov hluav taws xob, tam sim no thiab lub sijhawm los ua kom tiav cov ntaub ntawv them nyiaj thiab tshem tawm cov ntaub ntawv nkhaus, thiab lub sijhawm luv ntawm cov ntaub ntawv nkhaus yog tsawg dua lossis sib npaug li 10 vib nas this.

4) Roj teeb sorting muaj nuj nqi nyob rau hauv ntau yam mob (muaj peev xwm, lub sij hawm, qhib Circuit Court voltage, paug platform, thiab lwm yam)

5) Tsis siv neeg suav cov nqi them tam sim no tsis tu ncua, muaj peev xwm poob, tso tawm efficiency, nruab nrab voltage, nruab nrab voltage, thiab lwm yam.

6) Tus neeg teb xov tooj tso cai teeb tsa, ua haujlwm hierarchical

7) tuaj yeem tso saib cov nqi them thiab tawm qhov nkhaus, daim duab voj voog

3. Technical parameter

Qauv	TOB-192-10L Battery Forming and Grading Machine
Channel No.	192
Workflow tswj txoj kev	Tag nrho Cabin tswj
Kev them nyiaj yug qauv	Tsis tu ncua voltage, tsis tu ncua tam sim no
Charge cutoff condition	Voltage, tam sim no, lub sijhawm, muaj peev xwm
Tso tawm hom	Tam sim no tsis tu ncua
Discharge cutoff condition	Voltage, lub sijhawm, muaj peev xwm
Kev kuaj xyuas lub voj voog	Tsawg dua los yog sib npaug li 6s
Voltage ntsuas ntau yam	0 ~ 5V, Kev daws teeb meem 1mV
Roj teeb voltage ntau	Charge: 0 ~ 4.5V, Tawm: 4.5 ~ 2V
Tsis tu ncua voltage ntau yam	3~4.5V
Voltage raug	± (0.05%RD+0.1%FS)
Tam sim no ntau yam	Them nqi: {{0}}.05-10A, Tawm :0.05-10A, daws teeb meem: 1mA
Qhov tseeb tam sim no	± (0.1%RD+0.1%FS)
Lub Sijhawm Teem Sijhawm	Txhua qhov chaw nyob hauv 0~30000 feeb, chav tsev lub sijhawm yog min
Lub sij hawm raug	Tsawg dua lossis sib npaug rau ±0.1%
Clamp hom	Plaub-xaim txoj kev fixture
Clamp kho ntau yam	10mm -90mm (kho tau
Txhawb hom roj teeb	Lub tog raj kheej cell
Voltage qhov chaw	3 theem 4 xaim, AC380V ± 5%, 50HZ, Lub zog noj 15KW
txoj kev sib txuas lus	RS485, Baud tus nqi 57600
Tshuab loj	1680mm (ntev) × 600mm (dav) × 1710mm (qhov siab)
ib puag ncig ua haujlwm	Kub: 0-40 degree , ntsig txog kub Tsawg dua lossis sib npaug li 85%
Puv load ua haujlwm tam sim no	Theem kab mus txog 18A, xoom kab mus txog 30A
Ntaus pib tam sim no	Cua hloov kaw lub sijhawm txog 60A
N.W	Nyhav 350 kg
System Main configuration xav tau	Qhov tsawg kawg nkaus configuration ntawm lub computer system: CPU saum toj no P4, lub cim xeeb saum toj no 2G, hard disk chaw saum 200G, EGA/VGA xim zaub, ib CD-ROM, ib nas, MicrosoftTM Windows XP thiab saum toj no, ib tug muaj RS232 serial kev sib txuas lus chaw nres nkoj, qhov rais txhawb tshuab luam ntawv . Lub khoos phis tawj yog tus kheej los ntawm tus neeg siv, thiab tus naj npawb ntawm microcomputer tshuab tau txiav txim siab raws li qhov xav tau tiag tiag.
