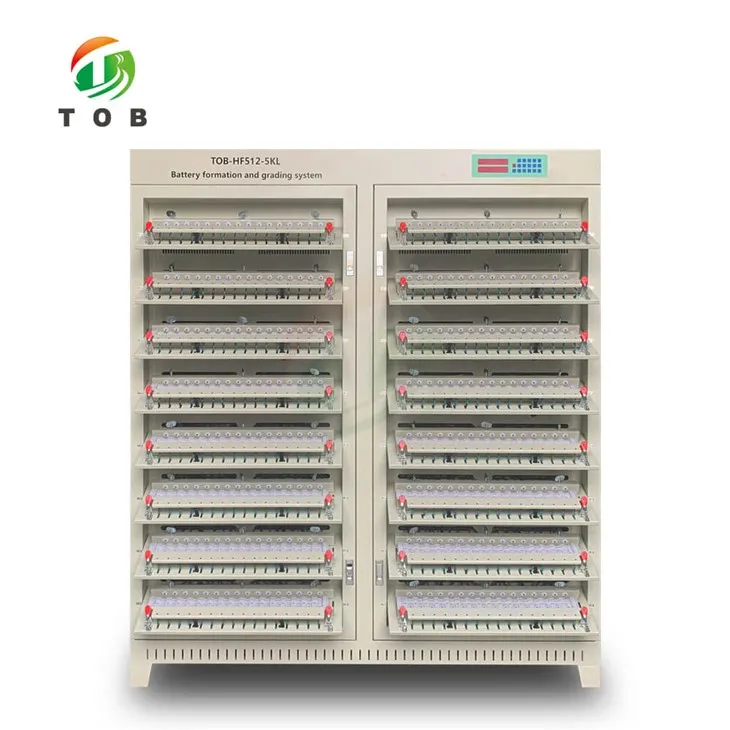

5V5A roj teeb tsim thiab muab qhab nia tshuab

5V5A Battery Formation And Grading Machine
5V5A Battery Formation And Grading Machine
5V5A Battery Formation And Grading Machine
5V5A Battery Formation And Grading Machine
5V5A Battery Formation And Grading Machine

5V5A roj teeb tsim thiab muab qhab nia tshuab

Model: TOB-HF512-5KL
Qhov no yog 512 channel lithium ion roj teeb tsim mahcine nrog ceev clamp los hloov cov hlwb thaum tsim tiav. Qhov clamp ceev no yog tsim rau txhua lub cylindrical hlwb thiab tuaj yeem kho tau.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

5V5A roj teeb tsim thiab muab qhab nia tshuab

Product Video

Specification

Khoom qauv thiab cov qauv qauv:

Cov khoom siv qauv: TOB-HF512-5KL

Cov khoom siv kev sib xyaw ua ke.

Equiment shape reference size (mm):1650 (L) × 500 (W) × 1914 (H) (Rau siv xwb, cov khoom siv tiag tiag yuav tsum yeej)

Lub hauv paus muaj pes tsawg leeg ntawm cov khoom siv

Cov cuab yeej no tsuas yog tsim los ntawm kev sib txuas lus sib txuas lus thiab lub roj teeb ntsuas lub txee. Lub roj teeb kuaj lub txee yog tsim los ntawm cov roj teeb clamp thiab lub phaj lub cev rau qhov chaw teeb tsa, qhov tsis tu ncua tam sim no qhov hluav taws xob tsis tu ncua, kev tswj hwm kev sau npe, ib qho piv txwv Circuit Court, ib qho chip microcomputer thiab tswj vaj huam sib luag.

Lub ntsiab kev ua tau zoo ntawm cov khoom siv
1. Txhua yam khoom siv tuaj yeem ua qhov tam sim no, qhov nqi hluav taws xob tas li thiab qhov tso tawm tsis tu ncua rau 512 pcs ntawm tes uas yog nyob rau hauv qhov ntsuas hluav taws xob ntau.
2. Cov khoom siv hluav taws xob tsis tu ncua-tam sim no, tsis tu ncua tam sim no mus rau qhov hloov pauv tsis tu ncua yam tsis muaj kev cuam tshuam, tshwj xeeb tshaj yog tsim rau lithium ion roj teeb uas yuav tsum tau them.
3. Cov cuab yeej siv AVR ib leeg-chip computer ua qhov chaw tswj, thiab koom tes nrog cov khoom siv hluav taws xob peripheral, uas tuaj yeem tswj tau los ntawm lub khoos phis tawj sab saud. Thaum txuas nrog lub khoos phis tawj, qhov ua tiav ntawm kev them nqi thiab tawm qhov nkhaus ntawm txhua txoj kev tuaj yeem raug cawm, lossis nws tuaj yeem raug cais tawm ntawm lub khoos phis tawj sab saud thiab ua haujlwm los ntawm kev tswj hwm. Tsis tu ncua tam sim no tsis tu ncua voltage them, tas li tam sim no paug kuaj, sorting los ntawm lub sij hawm, thiab lwm yam.
4. Txhua lub roj teeb muaj nws tus kheej tsis tu ncua tam sim no thiab qhov hluav taws xob tsis tu ncua, thiab lub voj voog tus kheej tsis cuam tshuam rau ib leeg.
5. Ib lub teeb ci LED tau teeb tsa rau ntawm txhua lub roj teeb fixtures raws li cov xwm txheej ua haujlwm, thiab thaum qhov kev tso tawm tiav lawm, nws tuaj yeem siv los qhia txog kev xaiv lub roj teeb.
6. Real-time detection txhua lub roj teeb voltage, thaum them, thawj qhov kev them nqi tam sim no, thaum lub roj teeb voltage nce mus txog tus nqi teev, nws yuav smoothly hloov mus rau qhov tsis tu ncua voltage them, thaum lub sij hawm teem los yog tam sim no qhov kev txiav txim siab txaus siab, lub them nyiaj xaus . Thaum lub sijhawm tam sim no raug tso tawm, thaum lub roj teeb hluav taws xob qis dua li tus nqi teev, qhov kev tawm mus tas li thiab cov teeb pom kev sib thooj roj teeb teeb.
7. Nrog lub hwj chim-down tiv thaiv muaj nuj nqi, thawj qhov kev ua haujlwm tuaj yeem ua haujlwm txuas ntxiv tom qab lub zog rov qab
8. Lub khoos phis tawj sab saud tuaj yeem teeb tsa 32 cov kauj ruam ua haujlwm thiab 256 lub voj voog. Txhua lub khoos phis tawj sab saud tuaj yeem txuas 1 mus rau 15 teeb ntawm ib qho nti microcomputer system.(qhia hauv qab 10 teeb)
9. Txhawb software nta
1) Siv cov graphical ua haujlwm interface los tso saib cov ntaub ntawv xws li voltage, tam sim no, lub sijhawm, thiab lub peev xwm ntawm txhua lub roj teeb, thiab tso saib cov xwm txheej ua haujlwm thiab cov xwm txheej txawv txav hauv ntau xim.
2) 3) Cov ntsiab lus cov ntaub ntawv tuaj yeem raug kaw raws li qhov hloov pauv ntawm qhov hluav taws xob, tam sim no thiab lub sijhawm los ua kom tiav cov ntaub ntawv them nyiaj thiab tshem tawm cov ntaub ntawv nkhaus, thiab lub sijhawm luv ntawm cov ntaub ntawv nkhaus yog tsawg dua lossis sib npaug li 10 vib nas this.
3) Cov ntaub ntawv cov ntsiab lus tuaj yeem raug kaw raws li qhov hloov pauv ntawm qhov hluav taws xob, tam sim no thiab lub sijhawm los ua kom tiav cov ntaub ntawv them nyiaj thiab tshem tawm cov ntaub ntawv nkhaus, thiab lub sijhawm luv ntawm cov ntaub ntawv nkhaus yog tsawg dua lossis sib npaug li 10 vib nas this.
4) Roj teeb sorting muaj nuj nqi nyob rau hauv ntau yam mob (muaj peev xwm, lub sij hawm, qhib Circuit Court voltage, paug platform, thiab lwm yam)
5) Tsis siv neeg suav cov nqi them tam sim no tsis tu ncua, muaj peev xwm poob, kev ua haujlwm tawm, qhov nruab nrab voltage, nruab nrab voltage, thiab lwm yam;
6) Tus neeg teb xov tooj tso cai teeb tsa, ua haujlwm hierarchical
7) tuaj yeem tso saib tus nqi thiab tawm qhov nkhaus, daim duab voj voog;

Main Technical Parameter

Qauv	TOB-HF512-5KL
Channel No.	512
Workflow tswj txoj kev	Tag nrho Cabin tswj
Kev them nyiaj yug qauv	Tsis tu ncua voltage, tsis tu ncua tam sim no
Charge cutoff condition	Voltage, tam sim no, lub sijhawm, muaj peev xwm
Tso tawm hom	Tam sim no tsis tu ncua
Discharge cutoff condition	Voltage, lub sijhawm, muaj peev xwm
Kev kuaj xyuas lub voj voog	Tsawg dua los yog sib npaug li 10s
Voltage ntsuas ntau yam	0 ~ 5V, Kev daws teeb meem 1mV
Roj teeb voltage ntau	Charge: {{0}} ~ 4.5V, Tawm: 4.5 ~ 2.0V
Tsis tu ncua voltage ntau yam	3~4.5V
Voltage raug	± ({{0}}}.05 feem pua RD ntxiv rau 0.1 feem pua FS)
Tam sim no ntau yam	Them {{0}}}025-5A, Tawm 0.025-5A, daws teeb meem 1mA
Qhov tseeb tam sim no	± ({0}}.1 feem pua RD ntxiv rau 0.1 feem pua FS)
Lub Sijhawm Teem Sijhawm	0 ~ 30000 feeb tuaj yeem teeb tsa arbitrarily, lub sij hawm chav tsev yog min
Lub sij hawm raug	Tsawg dua lossis sib npaug rau ±0.1 feem pua
Clamp hom	Quick laub clip
Txhawb hom roj teeb	18650 thiab 21700
Clamp qhov siab adjustable ntau yam	18650 thiab 21700
Lub zog ua haujlwm	3 theem 4 xaim, AC380V ± 10 feem pua, 50HZ, Lub zog siv tsawg dua lossis sib npaug li 23KW
Txoj kev sib txuas lus	RS485, Baud tus nqi 57600
Tshuab loj	1650mm (W) × 500mm (D) × 1914mm (H)
Ua haujlwm ib puag ncig	Kub: 0-40 degree , ntsig txog qhov kub thiab txias tsawg dua lossis sib npaug li 85 feem pua
Puv load ua haujlwm tam sim no	Theem kab mus txog 30A, xoom kab mus txog 3A
Ntaus pib tam sim no	Cua hloov kaw lub sijhawm txog 60A
Khoom hnyav	Txog 400 kg
