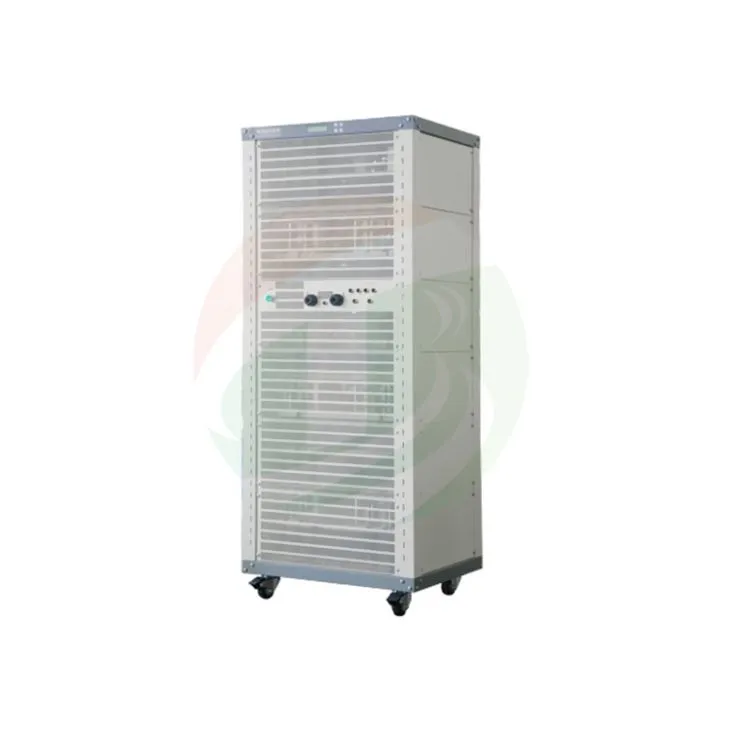

60V50A roj teeb pob Tester

1.Npe: Roj teeb pob tester
2.Input zog: 7848w
3.Channel tswj hom: Independent Control
4. Dimension: W * D * H: 606 * 606 * 990 (mm)

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

60V50A roj teeb pob Tester Feem ntau rau lub tsheb roj teeb

Specification

1 TOB-BTS-60V50A Roj teeb ntsuas qhov system feem ntau yog siv rau Kev Ntsuas Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob, nws tuaj yeem kuaj lithium roj teeb pob hluav taws xob mus txog 60v nrog Max tam sim no 50A.

2 Nws kuj tseem tuaj yeem kuaj cov roj teeb pob nrog tiv thaiv pawg thawj coj saib (PCB / PCM)

Qhov project index		Parameter index
Lub zog nkag		AC 380V ± 10% / 50Hz
Kev daws teeb meem		AD: 15 ntsis; DA: 12 ntsis
Input Resistance		Ntau dua lossis sib npaug li 1MΩ
Lub zog nkag		7848W
Channel Features		Qhov chaw tam sim no tsis tu ncua thiab qhov chaw qhov hluav taws xob tas li nrog Independent khub ntawm Closed-loop Structure
Channel Tswj hom		Independent Control
Qhov hluav taws xob	Raws li Channel Voltage Range	Them nqi: 300mV ~ 60V; Tawm: 2.5V ~ 60V
	Tshem tawm Min Voltage	2.5V
	Qhov tseeb	± 0.1% ntawm FS
	Kev ruaj ntseg	± 0.1% ntawm FS
Tam sim no	Raws li Channel Current Range	250mA ~ 50A
	Qhov tseeb	± 0.1% ntawm FS)
	Kev ruaj ntseg	± 0.1% ntawm FS
Hwj chim	Raws li Channel tso zis zog	3000W
	Kev ruaj ntseg	± 0.2% ntawm FS
Sijhawm	Lub sij hawm teb tam sim no	Lub sij hawm teb tam sim no yog 20ms
	Kauj Ruam Lub Sij Hawm	1s Tsawg dua lossis sib npaug rau Ib Kauj Ruam Lub Sij Hawm Tsawg dua lossis sib npaug rau 365 * 24 h, Lub Sijhawm Daim Ntawv Txhawb Nqa 00:00:00(h,min,s)
Cov ntaub ntawv kaw	Cov ntaub ntawv xwm txheej	Lub sij hawm ua piv txwv qis: 100ms
		Kev ntsuas qis qis: 150mV
		Kev ntsuas qis tam sim no: 5mA
	Sau Zaus	10Hz
Them nqi	Charge hom	Them tsis tu ncua tam sim no, Them tsis tu ncua Voltage, Tsis tu ncua tam sim no thiab tsis tu ncua Voltage Charge
	Xaus Conditon	Voltage, Tam sim no, txheeb ze lub sij hawm, muaj peev xwm
Tso tawm	Tso tawm hom	Kev tso tawm tsis tu ncua
	Qhov xwm txheej kawg	Tam sim no, Tam sim no, txheeb ze lub sij hawm, muaj peev xwm
Lub voj voog	Loop Measure Range	1-65535x
	Ib Loop Kauj Ruam No.	254
	Nested Loop	Nested voj muaj nuj nqi, Max Txhawb 3 Txheej
Kev tiv thaiv	Kev Tiv Thaiv Software	l Fais fab-down Data Protection
		l Off-line Test Function
		lSetting Protection Condition, Teem Parameter: Voltage Tsawg txwv, Voltage Upper limit, Tam sim no Tsawg txwv, Tam sim no Upper txwv, ncua sij hawm
	Kev tiv thaiv kho vajtse	Ntxiv Kev Tiv Thaiv Kev Tiv Thaiv Reverseconnection Model
Voltage thiab Current Test Sample		4-kev sib txuas
Suab nrov		<80dB
Database		Kuv SQL Databace
Ib Hom Kev Sib Txuas Lus ntawm Upper Machine		TCP/IP raws tu qauv
Cov ntaub ntawv tso zis		EXCEL, TXT, Graph
Kev ua haujlwm system		Office 2010, Win 7 system
Kev sib txuas lus Interface		Ethernet Chaw nres nkoj
Ib Unit Main Channels No.		1
Qhov ntev		18U, W * D * H: 606 * 606 * 990 (mm)
