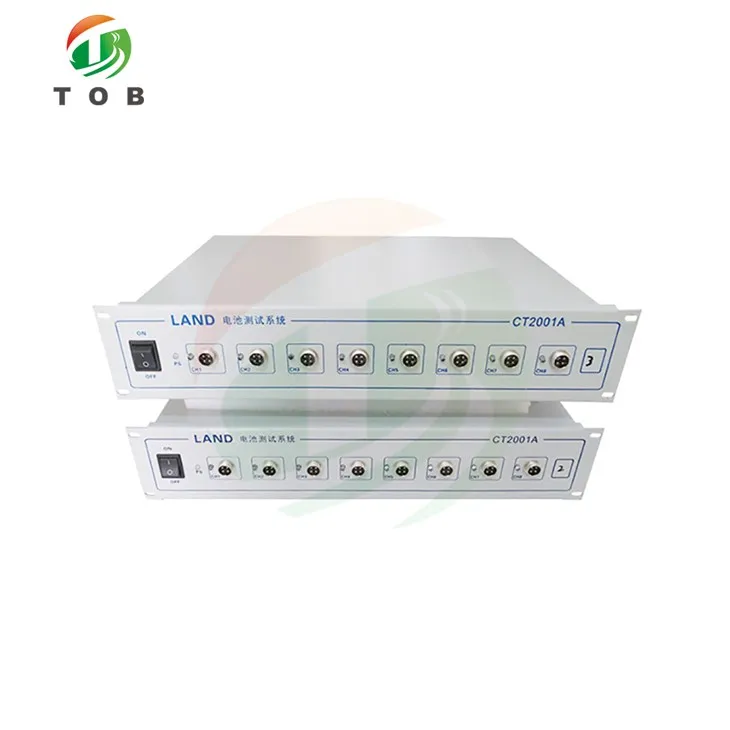

5V20mA Npib Cell Roj Teeb Tester

Tshuab qauv

8 Channels Battery Analyzer TOB-5V20mA

Qhov chaw voltage

110v rau 220v 50/60HZ

Hwj chim

30W

Tam sim no ntau yam

{{0}}mA 0.05%RD±0.1%FS (tswj thiab ntsuas)

Voltage ntau

{{0}}V 0.1%RD±0.1%FS (tswj thiab ntsuas)

Lub voj voog

9 999 kwg

Cov ntsiab lus ntawm kauj ruam

Tsis tu ncua tam sim no c / d, tsis tu ncua voltage c / d, tsis tu ncua fais fab tuag,

tas li tsis kam tawm, DCIR, so

Cov xwm txheej ntawm kev txwv

Lub sij hawm, voltage, tam sim no, muaj peev xwm, thiab lwm yam.20 yam

Kev tiv thaiv hom

Overvoltage, nyob rau hauv voltage, tshaj tam sim no, nyob rau hauv tam sim no, tshaj muaj peev xwm, thiab lwm yam.

Programming cov kauj ruam

Unlimited (ntau tshaj 200 kauj ruam)

Cov channel

Yim ywj pheej programmable channels

Txhua tus channel tuaj yeem teeb tsa hom kev ua haujlwm sib txawv thiab ua haujlwm ntawm nws tus kheej

Tso zis hom

4 electrode (txhawb kev siv electrode test)

Software

1 Lub software nrog calibration muaj nuj nqi suav nrog los teeb tsa ntau yam haujlwm

hom kev ntsuas lub peev xwm thiab lub neej voj voog rau txhua hom roj teeb rov qab

2 Hom kev ua haujlwm suav nrog kev tso tawm tsis tu ncua, tus nqi tam sim no tsis tu ncua,

tsis tu ncua voltage them, so, thiab lwm yam

3 Cov xwm txheej txwv tsis pub muaj xws li voltage, tam sim no, lub sijhawm, muaj peev xwm,

negative voltage nqes hav, thiab lwm yam

4 Nrog rau lub sijhawm saib xyuas qhov rais thiab cov duab sib xyaw ua ke / cov ntaub ntawv qhov rais,

cov txheej txheem xeem tuaj yeem pom ncaj qha thiab ua haujlwm tau zoo

5 Lub calibration software yuav siv tau los calibrate lub analyzer

Daim ntawv ntsuam xyuas thiab

nkhaus

1 Ntau hom nkhaus tuaj yeem tsim los ntawm software raws li tus neeg siv txhais.

(Voltage-lub sij hawm nkhaus, tam sim no-lub sij hawm nkhaus, muaj peev xwm-voltage nkhaus, voj sij hawm-them /

Tshem tawm muaj peev xwm nkhaus, voj voj voog sij hawm them / tso tawm efficiency nkhaus, thiab lwm yam)

2 Cov ntaub ntawv ceeb toom yog tsim los ntawm software.

3 Cov neeg siv tau yooj yim piv cov kev ua tau zoo ntawm cov roj teeb uas tau sim

nyob rau hauv cov channel ob qho tib si visually thiab statisticically

Dimension

250 * 200 * 60mm

Qhov hnyav

12kg ua

Kuaj clamps

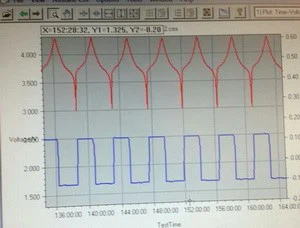

Kuaj cov txiaj ntsig nkhaus

Kev teeb tsa zaub mov
