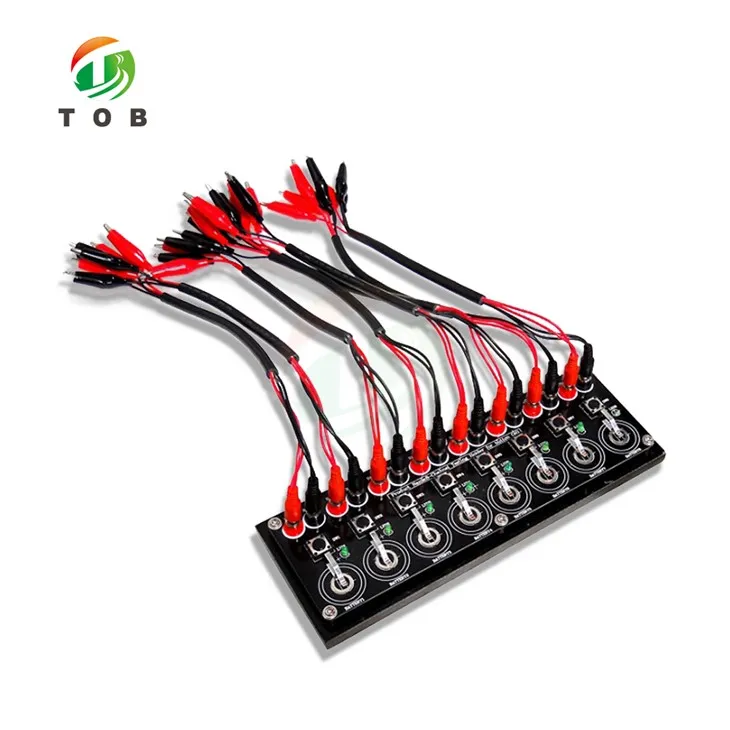

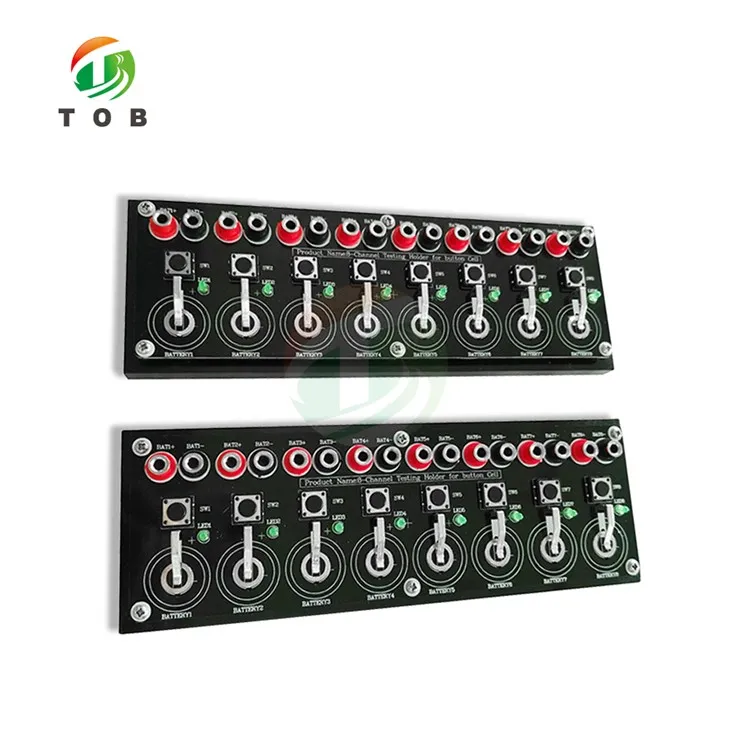

Npib Cell Test Clamp



8 Channel Npib Cell Test Clamp haum rau kab hauv qab Φ25mm Npib Cell





8 cables nrog kev xaiv cov khoom sib txuas tau suav nrog hauv cov txheej txheem pob rau kev siv tam sim

Cov connectors rau lub rooj tsavxwm yog cov txiv tsawb ntsaws kom yooj yim ntxig thiab tshem tawm, txoj kab uas hla ntawm yim puag ncig plugs ntawm Test Board yog nyob ib ncig ntawm 4 mm. , Banana Plug ntawm lub cable yog 4mm txiv tsawb plug, Max hlau diam.4.2mm

Lwm qhov kawg lossis ntawm cov khoom siv sib txuas yog cov kev xaiv yeem txuas (xaiv qhov zoo rau koj los ntawm saum toj "hom txuas" thaum txiav txim)

4-pin bayonet connectors

4 Alligator clamps (Ob tug me me rau qhov hluav taws xob thiab ob lub loj rau tam sim no) tau tshaj lwm tus neeg muag khoom qhov kev sim



Built-in roj teeb polarity check lub teeb yuav nyob rau thaum txoj cai tso lub npib ntawm tes thiab nias lub pob kos

Yuav kuaj npib cell nrog diam. mus txog 25mm thiab sib xws nrog feem ntau ntawm cov npib nrov ntawm tes, xws li CR2016, CR2032, CR2325, thiab CR2450

8 channel ua haujlwm ntawm nws tus kheej

Ib qho yooj yim roj teeb ntxig thiab tshem tawm

Khoom siv: Polypropylene

Qhov Loj: 230mm L * 80mm W * 32mm H











Cim npe nrov: npib cell test clamp, lwm tus neeg, manufacturers, hoobkas, nqe
