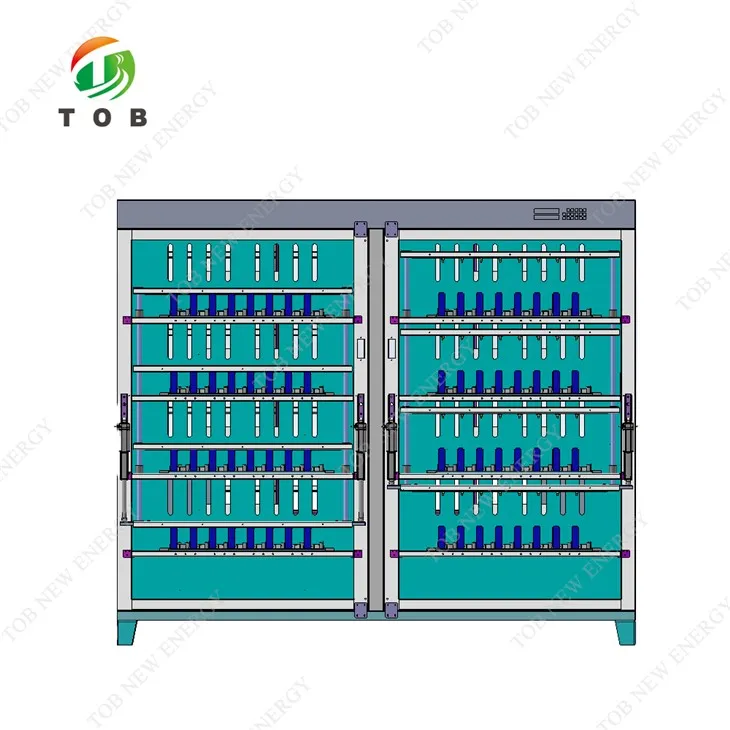

5VMax240A Prismatic Cell Tsim Tshuab

Tus naj npawb ntawm cov channel

128 256 512channels Customizable

Charge / tawm tam sim no ntau yam (mA)

300~240000

Qhov tseeb ntawm kev ntsuas tam sim no

±{{0}}.05 feem pua ​​FS ntxiv rau 0.05 feem pua ​​RD

Tam sim no daws teeb meem (mA)

1

Kev ntsuas voltage (mV)

0~5000

Kev ntsuas hluav taws xob ntau (mV)

0~4500

Tawm voltage ntau (mV)

800~4500

Qhov tseeb ntawm qhov ntsuas voltage

±{{0}}.05 feem pua ​​FS ntxiv rau 0.05 feem pua ​​RD

Voltage daws teeb meem (mV)

0.1

Lub sijhawm ntsuas qhov ntsuas thiab qhov tseeb

999 min / kauj ruam, qhov tseeb ±0.1 feem pua

Ntaus calibration hom

Software digital calibration

Calibration voj voog

6 hli

Cov ntsiab lus ua haujlwm kauj ruam

Kev them nyiaj tam sim no tsis tu ncua, tsis tu ncua tam sim no thiab tsis tu ncua voltage them, tas li tso tawm, so

Ua hauj lwm kauj ruam kawg mob

Tam sim no, voltage, lub sij hawm, muaj peev xwm

Qhov siab tshaj plaws ua hauj lwm kauj ruam tus naj npawb

Tiv tauj peb

Qhov siab tshaj plaws kev teeb tsa tus lej

Tiv tauj peb

Curve qhia

Them thiab tawm tam sim no nkhaus, them thiab tawm voltage nkhaus, muaj peev xwm nkhaus

Qib hom

Capacity grading, time grading, capacity plus curve grading, time plus curve grading, Peev plus voltage grading, taag point voltage grading

Kev tiv thaiv hom

Overcurrent, undercurrent, overvoltage, undervoltage, tshaj-muaj peev xwm, to tam sim no, nyob rau hauv uas them overvoltage / tawm undervoltage siv hardware thiab software dual tiv thaiv

Cov ntaub ntawv txheeb cais

Qhib Circuit Court voltage, nruab nrab voltage, lub sij hawm ua hauj lwm, tam sim no, muaj peev xwm thiab platform peev ntawm txhua lub roj teeb ntawm txhua kauj ruam ua hauj lwm; nthuav dav nkhaus thiab cov ntaub ntawv rau txhua kauj ruam ua haujlwm; Sau cov txheeb cais ntawm tus naj npawb ntawm cov roj teeb hauv txhua ntu muaj peev xwm

Routing soj ntsuam ceev (s)

Tsawg dua los yog sib npaug 3

Kev sib txuas lus hom

RS485 / WIFI kev twb kev txuas

Roj teeb scan muaj nuj nqi

Txhawb nqa barcode scanning, tuaj yeem luam theej duab ib-dimensional code, ob-dimensional code, sequence scan code, channel hla scan code, khi nrog cov cuab yeej channel cov ntaub ntawv, yooj yim rau taug qab yav tom ntej. (Tsib B yuav tsum muab lub wireless code scanning phom raws li barcode ntawm tus neeg siv)

Cov ntaub ntawv ua haujlwm

1. Cov ntaub ntawv hauv zos

Khaws cov ntaub ntawv ntxaws ntxaws ntawm cov cuab yeej ua haujlwm hauv zos. Txuag ib cov ntaub ntawv rau ib kwj ib khiav. Cov ntaub ntawv tuaj yeem luam tawm mus rau lwm lub khoos phis tawj saib.

Khaws cov ntaub ntawv tshwm sim hauv zos. Txuag ib daim ntawv CSV rau txhua tus txheej txheem. Tsuas yog cov ntaub ntawv kawg ntawm txhua kauj ruam ua haujlwm tau txais kev cawmdim hauv cov ntaub ntawv cov ntaub ntawv tshwm sim.

2. Cov ntaub ntawv server

Nyob rau hauv cov ntaub ntawv ntawm configuration cov ntaub ntawv neeg rau zaub mov, cov ntaub ntawv tshwm sim tuaj yeem xa mus rau lub server database, thiab lub neej cia tuaj yeem tsim raws li cov neeg siv khoom xav tau. Cov ntaub ntawv CSV no yog cov qauv database thiab tuaj yeem txuas nrog MES system

Txhua lub khoos phis tawj tuaj yeem tswj tau tus lej ntawm cov khoom siv

1 ~ 20, Pom zoo tswj 10 units

Ncej loj (mm) (rau siv)

L2030mm * W 700mm * H 2020mm

Tag nrho lub zog (KW)

Tsawg dua los yog sib npaug li 23

Lub zog efficiency

Kev them nyiaj thiab tso tawm hluav taws xob siv hluav taws xob txuag hluav taws xob, thiab lub roj teeb tawm hluav taws xob tau rov qab mus rau kab sib chaws.

Lub siab tshaj plaws them cov zis efficiency ntawm PSU yog tsis tsawg tshaj li 70 feem pua, thiab lub siab tshaj plaws zog rov qab efficiency yog tsis tsawg tshaj li 65 feem pua.

Kev ruaj ntseg ntawm cov cuab yeej

Cov cuab yeej muaj kev ruaj ntseg zoo rau kev ua haujlwm ntev, thiab xyuas kom meej tias nws tsis pub dhau qhov raug tswj ntau ntawm cov txheej txheem hauv 6 lub hlis tom qab precision calibration.

Fais fab mov

3 theem AC380V ± 10% 50Hz
