Energy Feedback Roj teeb Tsim Tshuab

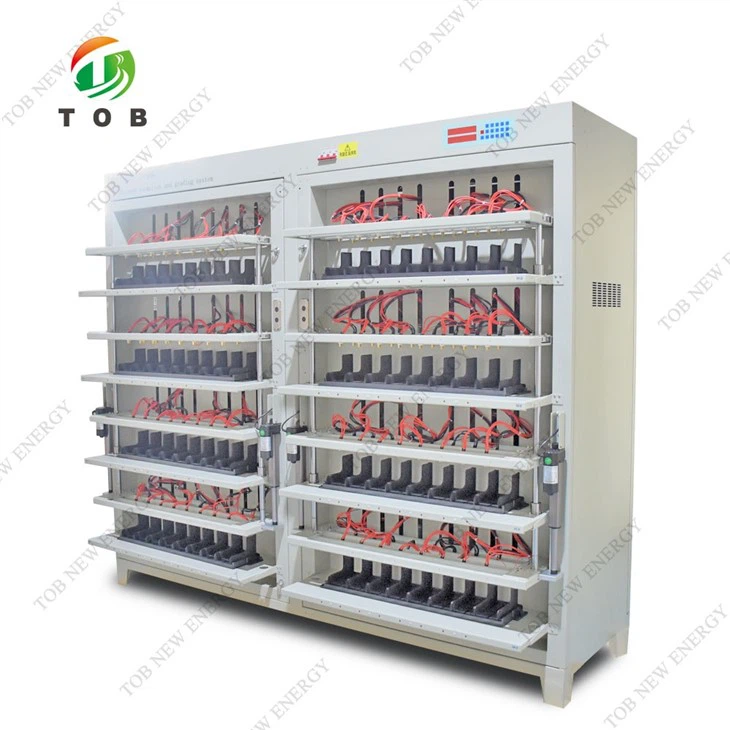

Model: TOB-EF128-20K
5V20A Qhov no TOB-EF128-20K roj teeb tsim tshuab yog lub zog tawm tswv yim hom lithium roj teeb tsim thiab ntsuas tshuab, Nws yog tsim rau prismatic cell.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Lub zog tawm tswv yim Lithium roj teeb tsim tshuab

Specification

Channel Parameter:128 raws, voltage 5V, them tam sim no 20A, tso tawm tam sim no 20A

Khoom Specifications:Lub zog txuag kev tawm tswv yim hom, qhib ncej tsis siv neeg nias, tshwj xeeb rau loj prismatic cell

Khoom qauv thiab cov qauv zoo li:

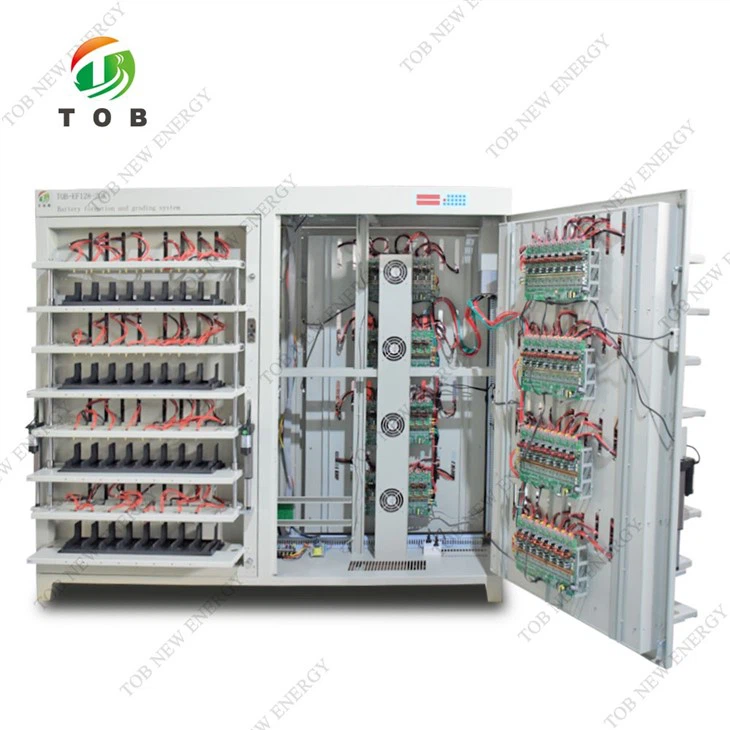

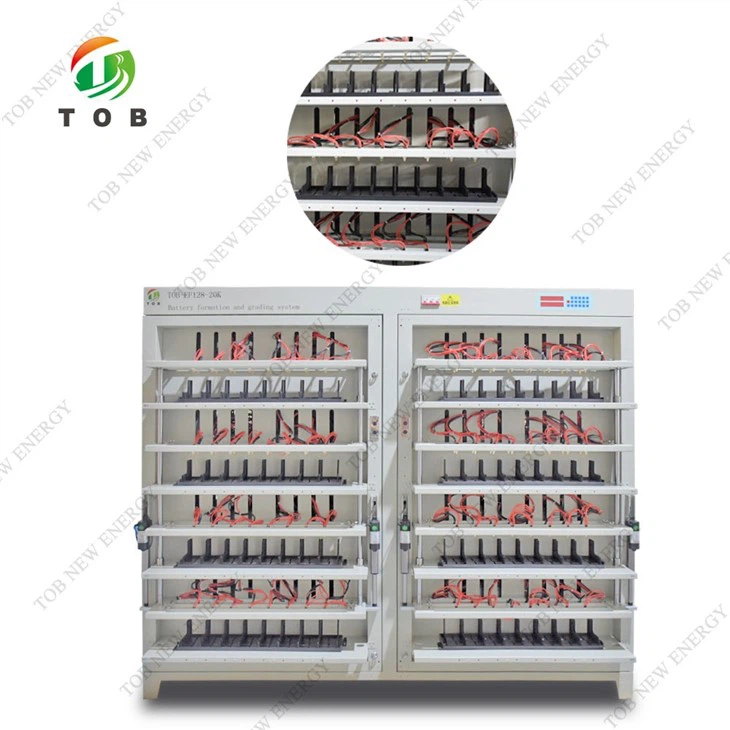

Structure: Lub fixture txais tag nrho tsis siv neeg nias hom, thiab lub roj teeb muab tso rau ntawm ob sab

Ib txheej txheej txheej txheem siv qhov ntev (mm): ntev 2030mm x dav 700mm x qhov siab 2020mm. (rau kev siv, cov khoom siv tiag tiag yuav yeej)

Cov cim tseem ceeb

Qauv	TOB-EF128-20K
Tus naj npawb ntawm cov channel	128 channel
Charge / tawm tam sim no ntau yam (mA)	200~20000
Qhov tseeb ntawm kev ntsuas tam sim no	±{{0}}.05 feem pua FS ntxiv rau 0.05 feem pua RD
Tam sim no daws teeb meem (mA)	0.1
Kev ntsuas voltage (mV)	0~5000
Kev ntsuas hluav taws xob ntau (mV)	0~4500
Tawm voltage ntau (mV)	1800~4500
Qhov tseeb ntawm qhov ntsuas voltage	±{{0}}.05 feem pua FS ntxiv rau 0.05 feem pua RD
Voltage daws teeb meem (mV)	0.1
Lub sijhawm ntsuas qhov ntsuas thiab qhov tseeb	999 min / kauj ruam, qhov tseeb ±0.1 feem pua
Ntaus calibration hom	Software digital calibration
Calibration voj voog	6 hli
Cov ntsiab lus ua haujlwm kauj ruam	Kev them nyiaj tam sim no tsis tu ncua, tsis tu ncua tam sim no thiab tsis tu ncua voltage them, tas li tso tawm, so
Ua hauj lwm kauj ruam kawg mob	Tam sim no, voltage, lub sij hawm, muaj peev xwm
Qhov siab tshaj plaws ua hauj lwm kauj ruam tus naj npawb	32
Qhov siab tshaj plaws kev teeb tsa tus lej	256
Curve qhia	Them thiab tawm tam sim no nkhaus, them thiab tawm voltage nkhaus, muaj peev xwm nkhaus
Qib hom	Capacity grading, time grading, capacity plus curve grading, time plus curve grading, Peev plus voltage grading, taag point voltage grading
Kev tiv thaiv hom	Overcurrent, undercurrent, overvoltage, undervoltage, tshaj-muaj peev xwm, to tam sim no, nyob rau hauv uas them overvoltage / tawm undervoltage siv hardware thiab software dual tiv thaiv
Cov ntaub ntawv txheeb cais	Qhib Circuit Court voltage, nruab nrab voltage, lub sij hawm ua hauj lwm, tam sim no, muaj peev xwm thiab platform peev ntawm txhua lub roj teeb ntawm txhua kauj ruam ua hauj lwm; nthuav dav nkhaus thiab cov ntaub ntawv rau txhua kauj ruam ua haujlwm; Sau cov txheeb cais ntawm tus naj npawb ntawm cov roj teeb hauv txhua ntu muaj peev xwm
Routing soj ntsuam ceev (s)	Tsawg dua los yog sib npaug li 6
Kev sib txuas lus hom	RS485 / WIFI kev twb kev txuas
Roj teeb scan muaj nuj nqi	Txhawb nqa barcode scanning, tuaj yeem luam theej duab ib-dimensional code, ob-dimensional code, sequence scan code, channel hla scan code, khi nrog cov cuab yeej channel cov ntaub ntawv, yooj yim rau taug qab yav tom ntej. (Tsib B yuav tsum muab lub wireless code scanning phom raws li barcode ntawm tus neeg siv)
Cov ntaub ntawv ua haujlwm	1. Cov ntaub ntawv hauv zos Khaws cov ntaub ntawv ntxaws ntxaws ntawm cov cuab yeej ua haujlwm hauv zos. Txuag ib cov ntaub ntawv rau ib kwj ib khiav. Cov ntaub ntawv tuaj yeem luam tawm mus rau lwm lub khoos phis tawj saib. Khaws cov ntaub ntawv tshwm sim hauv zos. Txuag ib daim ntawv CSV rau txhua tus txheej txheem. Tsuas yog cov ntaub ntawv kawg ntawm txhua kauj ruam ua haujlwm tau txais kev cawmdim hauv cov ntaub ntawv cov ntaub ntawv tshwm sim. 2. Cov ntaub ntawv server Nyob rau hauv cov ntaub ntawv ntawm configuration cov ntaub ntawv neeg rau zaub mov, cov ntaub ntawv tshwm sim tuaj yeem xa mus rau lub server database, thiab lub neej cia tuaj yeem tsim raws li cov neeg siv khoom xav tau. Cov ntaub ntawv CSV no yog cov qauv database thiab tuaj yeem txuas nrog MES system
Txhua lub khoos phis tawj tuaj yeem tswj tau tus lej ntawm cov khoom siv	1~10
Ncej loj (mm) (rau siv)	L2030mm * W 700mm * H 2020mm
Tag nrho lub zog (KW)	Tsawg dua los yog sib npaug li 20
Lub zog efficiency	Kev them nyiaj thiab tso tawm hluav taws xob siv hluav taws xob txuag hluav taws xob, thiab lub roj teeb tawm hluav taws xob tau rov qab mus rau kab sib chaws. Lub siab tshaj plaws them cov zis efficiency ntawm PSU yog tsis tsawg tshaj li 70 feem pua, thiab lub siab tshaj plaws zog rov qab efficiency yog tsis tsawg tshaj li 65 feem pua.
Kev ruaj ntseg ntawm cov cuab yeej	Cov cuab yeej muaj kev ruaj ntseg zoo rau kev ua haujlwm ntev, thiab xyuas kom meej tias nws tsis pub dhau qhov raug tswj ntau ntawm cov txheej txheem hauv 6 lub hlis tom qab precision calibration.
Fais fab mov	3 theem AC380V ± 10% 50Hz
Cua hloov	Peb-theem plaub xaim nrog nruab nrab xaim xaim tiv thaiv kev ua haujlwm cua hloov

Jig frame size parameters

Yam khoom	Spec
Jig hom	Muaj tseeb plaub-hlau txoj kev multi-pin fixture, qhov zoo thiab qhov tsis zoo tuaj yeem hloov kho
Pallet qhov siab sib nrug	270mm 0
Qhov qis tshaj pallet qhov siab tawm hauv av	270mm 0
Qhov siab tshaj plaws pallet qhov siab tawm ntawm lub grou	16 20 MM
Qhov deb nruab nrab ntawm cov chaw kho kom haum	78.5mm ib
Tau tshaj roj teeb qhov siab	50-220MM

Ntaus lub ntsiab muaj nuj nqi

Modular manufacturing, muaj zog versatility, yooj yim txij nkawm.

Txoj kev plaub-kab tau txais yuav los txhim kho qhov kev xeem raug.

Txhua channel muaj ib qho kev ywj pheej tam sim no thiab qhov hluav taws xob tas li, uas tsis muaj kev cuam tshuam rau ib leeg.

Cov cuab yeej txais kev tswj hwm ntawm tag nrho lub tshuab ntws xa.

Cov qauv ntsuas nrawm nrawm, thiab lub sijhawm tshuaj xyuas ntawm tag nrho cov txee yog tsawg dua 6S.

Ua kom tiav WINDOWS platform software, software muaj zog, tus phooj ywg txiv neej-tshuab interface, ua haujlwm yooj yim. Lub khoos phis tawj sab saud tuaj yeem teeb tsa mus txog 32 cov kauj ruam ua haujlwm thiab 256 lub voj voog, thiab txhua kauj ruam tuaj yeem xaiv los ntawm plaub tus yam ntxwv, xws li kev them nyiaj tam sim no tsis tu ncua, them nyiaj tsis tu ncua, tsis tu ncua tam sim no, thiab pw tsaug zog.

Nws tuaj yeem kos lub zog nkhaus ntawm txhua lub roj teeb tsim thiab kev muab qhab nia hauv lub sijhawm, suav nrog voltage / lub sijhawm nkhaus, tam sim no / lub sijhawm nkhaus, muaj peev xwm / lub sijhawm nkhaus, lub zog / lub sijhawm nkhaus, muaj peev xwm / voltage nkhaus thiab lwm yam kev ua haujlwm.

Siv qhov taw qhia LED los qhia txog kev ua haujlwm ntawm lub roj teeb.

Kev sib txuas lus hom: RS485 / WIFI.

Txhua lub khoos phis tawj sab saud tuaj yeem saib xyuas ntau tshaj 10 cov khoom siv.

Nrog cov ntaub ntawv fais fab tawm kev tiv thaiv muaj nuj nqi, tuaj yeem ua haujlwm txuas ntxiv tom qab lub hwj chim qhib.

Lub software muaj lub luag haujlwm ntawm kev kho thiab hloov cov txheej txheem tsev qiv ntawv cov ntaub ntawv, tsim kev saib xyuas, qhib thiab kaw cov ntaub ntawv, luam ntawv thiab teeb tsa.

AC / DC bidirectional fais fab mov

Kev txuag hluav taws xob AC / DC ob txoj kev siv hluav taws xob yog siv rau cov khoom siv hluav taws xob, uas muaj kev them nqi siab thiab cov roj teeb tawm hluav taws xob tau rov qab rau hauv daim phiaj hluav taws xob.

Energy Feedback

Raws li pom nyob rau hauv daim duab saum toj no, ib feem ntawm lub roj teeb tso tawm lub zog yog siv los ntawm lub hwj huam mov nws tus kheej, lwm qhov yog siv los ntawm lwm yam khoom siv them, thiab tus so yog pub rov qab rau hauv daim phiaj fais fab siv los ntawm lwm cov khoom siv.

Main configuration yuav tsum tau ntawm lub system

P4 CPU lossis siab dua, 2G nco lossis siab dua, 200G hard disk lossis siab dua, EGA / VGA xim zaub, CD-ROM, nas, Microsoft TM Windows XP lossis saum toj no operating system, muaj RS232 serial kev sib txuas lus chaw nres nkoj, thiab lub tshuab luam ntawv txhawb nqa los ntawm Windows.
