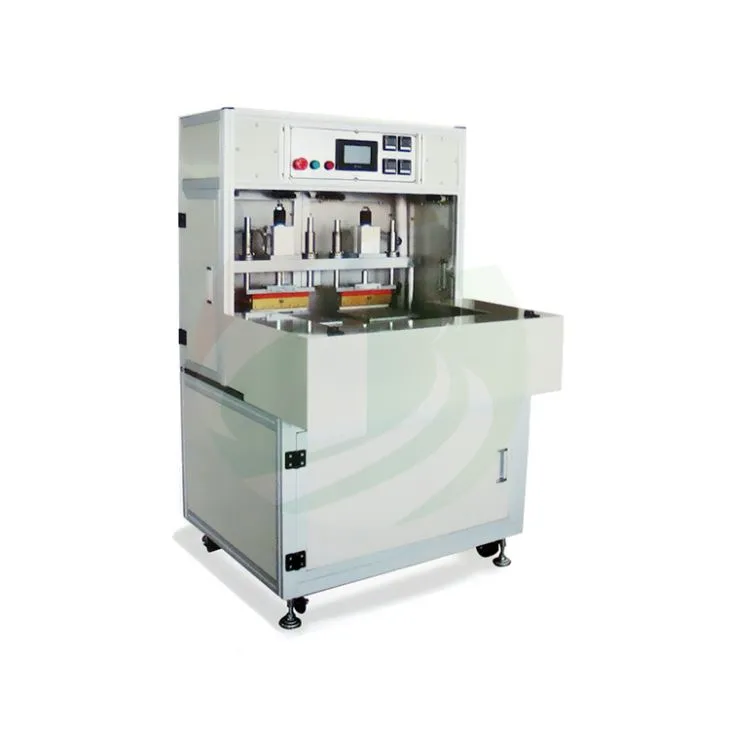

Hnab Cell Battery Sealer

1.Modle: TOB-MY-06-300-4 Plaub qhov chaw nres tsheb sealing tshuab
2. Lub zog: 3500w
3.Sealing Thickness: 0 19-0.3mm
4.Sealing kub: RT-260 degree adjustable, Qhov tseeb ± 3 degree

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Plaub Chaw Nres Nkoj Hnab Cell Roj Teeb Sealer rau Kab Ntau Lawm

Specification

TOB-MY-06-300-4 Plaub qhov chaw nres tsheb sealing tshuab rau lub hnab ntim khoom loj loj.

Qauv	TOB-MY-06-300-4
Hom	Turntable hom, Plaub qhov chaw ua haujlwm
Qhov chaw voltage	AC 220V, 50HZ
Hwj chim	3500W
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej
Cua compression	Ntau dua lossis sib npaug rau 0.6MPa
Qhov Loj (L * W * H)	870 * 870 * 1500 hli
Haum roj teeb loj	Sab saum toj sealing Tsawg dua lossis sib npaug li 280mm, Sab sealing Tsawg dua lossis sib npaug li 280mm
Sealing stamp dav	2-10mm, Sab saum toj sealing: 4mm, Sab sealing: 6mm (customized)
Sealing thickness	0 19-0.3 hli
Sealing kub	RT -260 degree adjustable, Qhov tseeb ± 3 degree
Lub sijhawm sealing	0-99.9s, kho tau
Pub raug	± 0.05 hli
Tso zis	400-600 Sijhawm/H
Sab sealing taub hau	Length: 300mm, Dav: 6mm
Sab saum toj sealing taub hau	Customized
Chaw nyob qhov siab	4mm, Sealing roj teeb thickness: 2-10mm
Tshuab Configure	Txheem ib feem
PLC	Mitsubishi
Txiv neej-tshuab interface	Mitsubishi
Teem controller	Omron
Relay	Shanghai
Lub tshuab nqus tsev vacuum	SMC
Qhov sib thooj hloov	Omron
Lub cev muaj zog	DDK
Lub teeb ntaub	SUNX
Lub tog raj kheej, Pneumatic element	AIRTAC/SMC

Daim ntawv ceeb toom tseem ceeb.

1) Cov neeg siv khoom yuav tsum paub tseeb tias lawv lub teb chaws puas raug tso cai los ntawm kev yuav khoom no.

2) Yog tias koj tsis paub meej tias koj lub tebchaws puas tso cai rau cov khoom lag luam no lossis tsis.

3) peb xav kom koj hu rau kev cai rau kev pom zoo.

4) Peb yuav tsis muaj lub luag haujlwm rau kev poob vim kev lis kev lis kev cai.

Kev pabcuam

1. Peb muab cov cav tov nrog roj teeb technology txhawb.

2. Peb kuj tuaj yeem muab cov khoom siv tag nrho rau cov roj teeb lithium nrog rau cov roj teeb polymer, lub tog raj kheej roj teeb, lub xov tooj ntawm tes, EV roj teeb.

3. Peb kuj tuaj yeem muab cov khoom siv roj teeb lithium tag nrho rau kev tshawb fawb hauv chav kuaj, ntsuas ntsuas kev tshawb fawb thiab cov kab ntau lawm.
