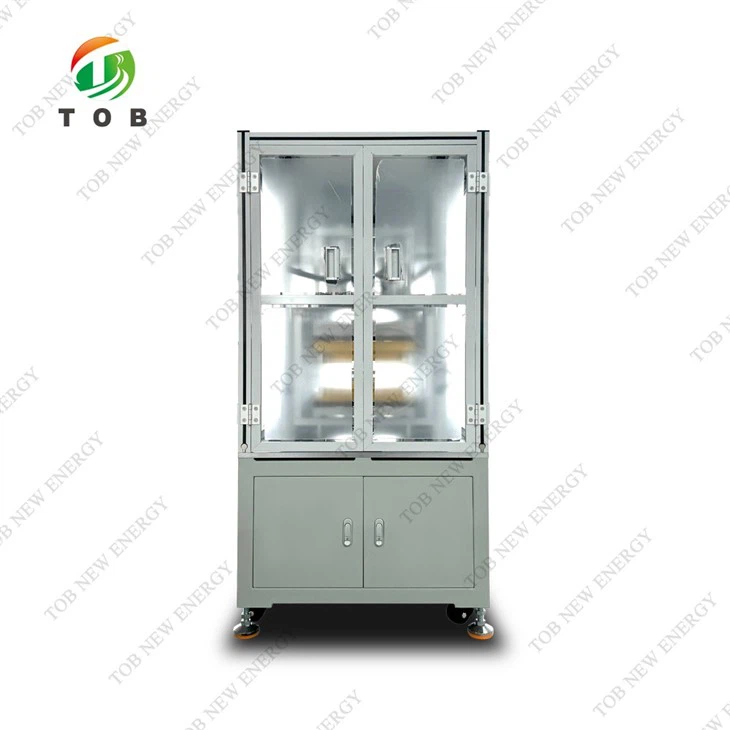

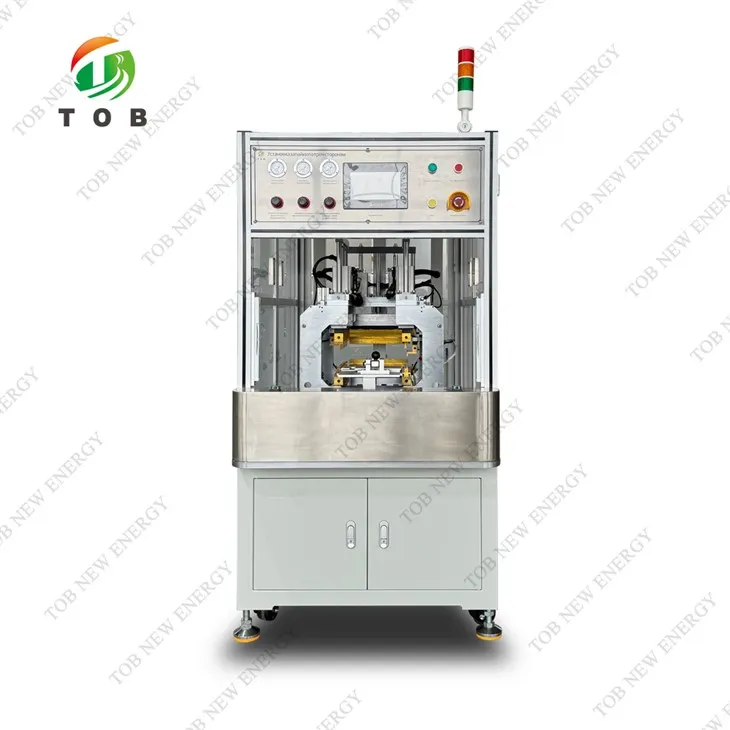

Pib Sab saum toj Thiab Sab Sealing Tshuab
Qhov no TOB-TTS-L350 pib sab saum toj thiab sab sealing tshuab yog tsim rau sab saum toj sealing txheej txheem rau lub hnab ntawm tes. Nws yog tsim rau kev npaj ntawm tib sab tab hnab cell thiab opposite tab pouch cell.
Pib Sab saum toj thiab Sab Sealing Tshuab Rau Hnab Cell
Product Video
Specification
Cov cuab yeej ua haujlwm piav qhia
Qhov no TOB-TTS-L350 pib sab saum toj thiab sab sealing tshuab yog tsim rau sab saum toj sealing txheej txheem rau lub hnab ntawm tes. Nws yog tsim rau kev npaj ntawm tib sab tab hnab cell thiab opposite tab pouch cell.
Txheej txheem khiav
Manually muab cov tsim aluminium laminated zaj duab xis rau hauv lub clamp rau qhov chaw, muab lub xov tooj rau hauv aluminium laminated zaj duab xis plhaub, fixture clamping phaj, lub servo tsav lub fixture thiab thauj lub cell mus rau ob sab saum toj sealing txoj hauj lwm, lub tog raj kheej txav mus los thiab ua kom tiav. muab ob npaug rau sab saum toj sealing (los yog ib qho saum toj kawg nkaus sealing) tib lub sijhawm, lub servo txuas ntxiv thauj cov khoom siv rau sab sealing txoj hauj lwm, ua tiav ib sab ntawm sab sealing. ua hauj lwm, lub fixture cia li rov qab mus rau qhov chaw muab khoom, phau ntawv tso tawm khoom; lub voj voog rov ua dua.
Cov cuab yeej layout
Basic tsis
| Fais fab mov | AC220V / 50Hz; Lub Zog: 6.8KW |
| Compressed cua | Ntau dua los yog sib npaug rau 0.6MPa 15L/min (neeg siv-muab) |
| Khoom hnyav | Txog 400 kg |
| Tag nrho qhov ntev | LxWxH (yuav tsum tau txiav txim) |
| Xim xim | International sov grey 1C lossis customized |
Technical parameters
| Siv tau specifications | Sab saum toj foob 50-320mm (nrog rau lub hnab cua), sab foob 100-250mm (tab qhov siab tsawg dua 50MM) |
| Sealing taub hau ntev | Sab saum toj foob Ntau dua lossis sib npaug rau 320MM, sab foob: Ntau dua lossis sib npaug rau 250MM |
| Foob dav | Sab saum toj foob 8 hli sab foob 10 hli (qhov loj me, tuaj yeem kho raws li tus neeg siv los muab kev lees paub daim phiaj) |
| Sealing taub hau kub | Kho tau los ntawm chav tsev kub txog 260 degree, kev them nyiaj tuaj yeem teeb tsa, tswj qhov tseeb ± 2 degree |
| Sealing taub hau parallelism | Siv triple carbon dawb luam ntawv, nrog lub taub hau sealing siab ntawm 0.4-0.6Mpa thiab kub ntawm 180 degree, nias lub foob sib npaug |
| Lub sijhawm encapsulation | 0-99.9 vib nas this (adjustable) |
| Sealing thickness | ± 0.02mm |
| Cov cuab yeej muaj peev xwm | 4 PPM |
