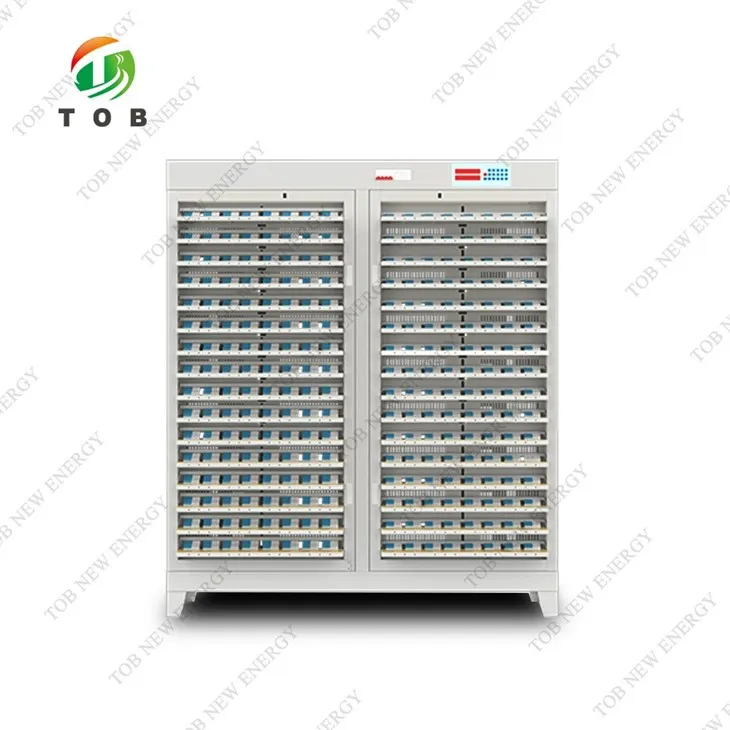

5V5A Hnab Cell Charge Tshuab

Model: TOB-HF256-5D
Qhov no 5V1A them thiab tawm tshuab yog tsim los ntawm lub computer, kev sib txuas lus interface thiab roj teeb tsim txee. Lub roj teeb tsim txee yog tsim los ntawm lub phaj lub cev nrog rau lub clamp thiab lub phaj rau clamp, qhov tam sim no tsis tu ncua, qhov hluav taws xob tsis tu ncua, ib qho chip microcomputer thiab tswj vaj huam sib luag.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

5V5A Hnab Cell Charge Tshuab

Specification

Cov duab khoom yog ib yam li siv, thov nyob rau hauv hom prevail

1.Qhov yooj yim muaj pes tsawg leeg

Cov cuab yeej no yog tsim los ntawm lub computer, kev sib txuas lus interface thiab lub roj teeb kuaj lub txee. Lub roj teeb kuaj lub txee muaj lub rooj sib dhos thiab lub rooj tsavxwm rau kev tso cov khoom sib dhos, qhov chaw tsis tu ncua thiab qhov hluav taws xob, qhov chaw tswj hwm kev tswj hwm, ib qho piv txwv Circuit Court, microcontroller thiab tswj vaj huam sib luag.

2.Main feature

(1) Txhua lub cuab yeej tuaj yeem ua qhov tam sim no tsis tu ncua, qhov nqi hluav taws xob tas li thiab qhov tso tawm tam sim no tsis tu ncua rau 256 pcs ntawm tes uas nyob hauv qhov hluav taws xob ntau.

(2) Tsis tu ncua tam sim no-tsis tu ncua voltage fais fab mov, tas li tam sim no mus tas li voltage hloov yam tsis muaj kev cuam tshuam, tshwj xeeb tshaj yog tsim rau lithium ion roj teeb uas yuav tsum tau them

(3) Cov cuab yeej siv AVR ib leeg-chip lub khoos phis tawj ua lub chaw tswj hwm, thiab koom tes nrog cov khoom siv hluav taws xob peripheral, uas tuaj yeem tswj tau los ntawm lub khoos phis tawj sab saud. Thaum txuas nrog lub khoos phis tawj, qhov ua tiav ntawm kev them nqi thiab tawm qhov nkhaus ntawm txhua txoj kev tuaj yeem raug cawm, lossis nws tuaj yeem raug cais tawm ntawm lub khoos phis tawj sab saud thiab ua haujlwm los ntawm kev tswj hwm. Tsis tu ncua tam sim no tsis tu ncua voltage them, tas li tam sim no paug kuaj, sorting los ntawm lub sij hawm, thiab lwm yam.

(4) Txhua lub roj teeb muaj nws tus kheej tsis tu ncua tam sim no thiab qhov hluav taws xob tsis tu ncua, thiab lub voj voog tus kheej tsis cuam tshuam rau ib leeg.

(5) Lub LED yog ntsia rau ntawm txhua lub roj teeb fixtures raws li cov xwm txheej ua haujlwm, thiab thaum qhov tso tawm tiav, nws tuaj yeem siv los qhia txog kev xaiv roj teeb.

(6) Kev tshawb pom lub sijhawm tiag tiag txhua lub roj teeb hluav taws xob, thaum them nyiaj, thawj zaug them tam sim no, thaum lub roj teeb hluav taws xob nce mus txog tus nqi teev, nws yuav hloov mus rau qhov tsis tu ncua voltage them, thaum lub sijhawm teem sijhawm lossis qhov kev txiav tawm tam sim no txaus siab, them nyiaj xaus. Thaum lub sijhawm tam sim no raug tso tawm, thaum lub roj teeb hluav taws xob qis dua li tus nqi teev, qhov kev tawm mus tas li thiab cov teeb pom kev sib thooj roj teeb teeb.

(7) Nrog lub hwj chim-down tiv thaiv muaj nuj nqi, thawj qhov kev ua haujlwm tuaj yeem ua haujlwm txuas ntxiv tom qab lub zog rov qab

(8) Lub khoos phis tawj sab saud tuaj yeem teeb tsa 32 cov kauj ruam ua haujlwm thiab 256 lub voj voog. Txhua lub khoos phis tawj sab saud tuaj yeem txuas 1 mus rau 15 teeb ntawm ib qho nti microcomputer system.(qhia hauv qab 10 teeb)

(9) Txhawb nqa software nta

① Siv lub graphical lag luam interface los tso saib cov ntaub ntawv xws li voltage, tam sim no, lub sijhawm, thiab lub peev xwm ntawm txhua lub roj teeb, thiab tso saib cov xwm txheej ua haujlwm thiab cov xwm txheej txawv txav hauv ntau xim.

② Arbitrary segmented roj teeb muaj peev xwm qhia tau (txog 100 ntu)

③ Cov ntsiab lus cov ntaub ntawv tuaj yeem raug kaw raws li qhov hloov pauv ntawm qhov hluav taws xob, tam sim no thiab lub sijhawm los ua kom tiav cov ntaub ntawv them nyiaj thiab tshem tawm cov ntaub ntawv nkhaus, thiab lub sijhawm luv ntawm cov ntaub ntawv nkhaus yog tsawg dua lossis sib npaug li 10 vib nas this.

④ Roj teeb sorting muaj nuj nqi nyob rau hauv ntau yam mob (muaj peev xwm, lub sij hawm, qhib

Circuit Court voltage, tawm platform, thiab lwm yam)

⑤ Tsis siv neeg suav cov nqi them tam sim no tsis tu ncua, muaj peev xwm poob, kev ua haujlwm tawm, qhov nruab nrab voltage, nruab nrab voltage, thiab lwm yam.

⑥ Tus neeg teb xov tooj tso cai teeb tsa, ua haujlwm hierarchical

⑦ Muaj peev xwm tso saib cov nqi thiab tawm nkhaus, daim duab voj voog

3. Technical parameter

Channel No.	256
Workflow tswj txoj kev	Tag nrho Cabin tswj
Kev them nyiaj yug qauv	Tsis tu ncua voltage, tsis tu ncua tam sim no
Charge cutoff condition	Voltage, tam sim no, lub sijhawm, muaj peev xwm
Tso tawm hom	Tam sim no tsis tu ncua
Discharge cutoff condition	Voltage, lub sijhawm, muaj peev xwm
Kev kuaj xyuas lub voj voog	Tsawg dua los yog sib npaug li 10s
Voltage Measurement ntau yam	0 ~ 5V, Kev daws teeb meem 1mV
Roj teeb voltage ntau	Charge: {{0}} ~ 4.5V, Tawm: 4.5 ~ 2.0V
Tsis tu ncua voltage ntau yam	3~4.5V
Voltage raug	± ({{0}}}.05 feem pua RD ntxiv rau 0.1 feem pua FS)
Tam sim no ntau yam	Them nqi: {{0}} 025-5A, Tawm :0.025-5A, daws teeb meem: 1mA
Qhov tseeb tam sim no	± ({0}}.1 feem pua RD ntxiv rau 0.1 feem pua FS)
Lub Sijhawm Teem Sijhawm	Txhua qhov chaw nyob hauv 0~30000 feeb, chav tsev lub sijhawm yog min
Lub sij hawm raug	Tsawg dua lossis sib npaug rau ±0.1 feem pua
Qhov system tseem ceeb configuration xav tau	Qhov tsawg kawg nkaus configuration ntawm lub computer system: CPU saum toj no P4, nco saum toj no 2G, hard disk qhov chaw saum 200G, EGA/VGA xim zaub, ib CD-ROM, ib nas, MicrosoftTM Windows XP thiab saum toj no, ib tug muaj RS232 serial kev sib txuas lus chaw nres nkoj, qhov rais txhawb tshuab luam ntawv . Lub khoos phis tawj yog tus kheej los ntawm tus neeg siv, thiab tus naj npawb ntawm microcomputer tshuab tau txiav txim siab raws li qhov xav tau tiag tiag.
