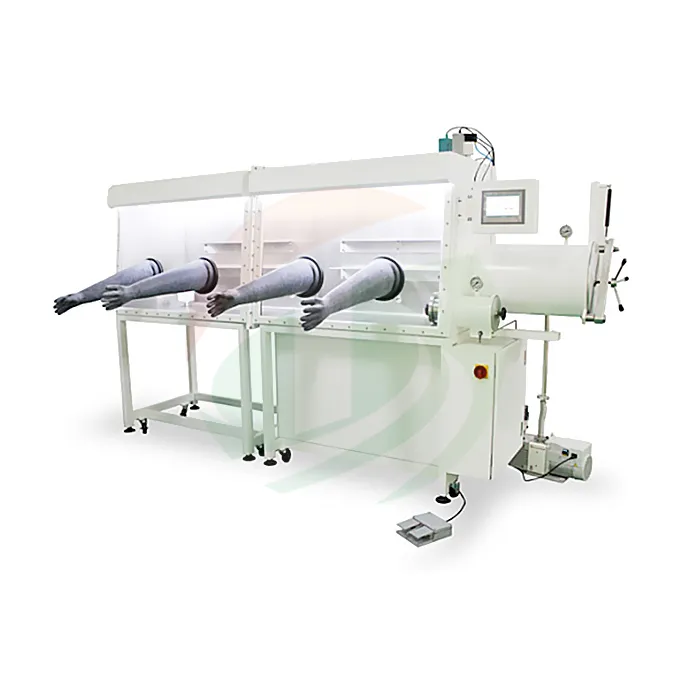

Dual Stainless Lab Hnab looj tes Box
1. H2O, O2: Tsawg dua lossis sib npaug li l ppm
2. Ua haujlwm roj: nitrogen, argon, helium (purity 99.5%)
3.Tus nqi xau: Tsawg dua lossis sib npaug rau 0.05Vol% h (txog txhua hli ntawm oxygen<1L)
High Quality Dual Stainless Lab hnab looj tes-TOB-GB-2440
Specification
Nta
Nruab nrog lub zog loj ntawm cov organic hnyav adsorption ntaus ntawv, uas tuaj yeem nqus HF thiab txo qhov kev puas tsuaj ntawm electrolyte rau lub hnab looj tes cov khoom.
Kaw Loop Gas Circulation - Inert gas nyob rau hauv lub voj kaw. Cov pa roj yog circulated los ntawm blower thiab purifier, H2O, O2 tuaj yeem raug tshem tawm tsis tu ncua.
Auto Purging - Kev hloov cov huab cua hauv lub hnab looj tes tuaj yeem ua tiav tau los ntawm cov purging li qub.
Automatic Regeneration - H2O thiab O2 tshem tawm cov khoom tuaj yeem rov tsim dua. Cov txheej txheem rov tsim dua tuaj yeem tswj tau qhov program.
Kev Tswj Siab Hauv Lub Hnab Hnab - Lub siab hauv lub hnab looj tes yog tswj tau los ntawm Programmable Logic Controller (PLC). Kev ua haujlwm siab tuaj yeem teem caij nruab nrab ntawm +10mba thiab -10mba. Yog tias qhov siab dhau +/- 12mbar, lub kaw lus yuav raug tiv thaiv tsis tu ncua.
Automatic Nqus Pump Control - Lub tshuab nqus tsev twj tso kua mis yuav qhib tau thaum tsim nyog, thiab yuav tua tom qab lub sijhawm tsis ua haujlwm.
Basic Configuration
Ib qho - Lub tsev ua los ntawm 3mm - 304 Stainless Steel (acid resistant), Ob lub thawv rau flange txuas. 2440mm (96 ") dav * 750mm (29.5 ") tob * 900mm (35.4") siab, 900mm (35.4") Sawv siab
Ib qho - Antechamber ua los ntawm Stainless Hlau, 360mm (14.2 ") inch x 600mm (23.6") ntev, sab xis lossis sab laug
Ib - Mini Antechamber , 150mm (5.9 ") inch x 300mm (11.8") ntev, sab xis
Ob - Lub Teeb Pom Kev nrog 2 lub hnab looj tes ntawm txhua sab, ib sab ntawm ib sab
Ob - Pairs ntawm Butyl hnab looj tes
Ob - Teeb pom kev zoo
Ob - Plua Plav Lim: 0.3 µm - [One Gas Inlet Filter thiab Ib Lub Roj Lim Lim]
Ib qho - Stainless Hlau Txee nrog Ob Lub Txee txuas rau sab nraub qaum
Ib qho - Kev Ua Tau Zoo Tshaj Plaws [90 cubic meters / teev]
Ib - Lub Tshuab Nqus Tsev [8 cubic meters / teev]
Ib qho - Hluav Taws Xob Feedthrough -Seven - Dig Muag Flanges ib KF 40
Ib-ko taw Hloov
Rollers rau Stand
Technical Parameters:
|
Yam khoom |
Parameter |
|
Hnab looj tes |
Dimensions: 2440 (96 ") mm dav x 750) mm (29.5 "dav x 900mm (35.4") siab, Stand 900mm (35.4") siab Yuav tsum tau ua haujlwm Ib sab, nrog ob lub hnab looj tes ntawm txhua sab. Khoom siv rau lub thawv: 3mm tuab. 304 stainless hlau, acid resistant Qhov rai - Safety Glass Hnab looj tes Ports - POM (Polyoxymethylen Plastic) 220mm (8.7 ") txoj kab uas hla - Ob chav O-ring kaw ntawm txhua lub hnab looj tes. Hnab looj tes - Butyl - 8" cuff diameter - .015" Thick - 32" Length Plua plav lim - 0.3 µm - 1 gas inlet thiab 1 gas qhov hluav taws xob lim Txee - Stainless - 2 txheej - Mounted hauv. Sab Nraud Fluorescent Teeb - 2 teeb Ib qho - Hluav taws xob pub-los ntawm - Xya-qhov muag tsis pom Flanges KF 40 |
|
Lub ntsiab Antechamber |
Ib - Loj Antechamber - 304 Stainless Hlau - 360mm(14.2") Dia. - 600mm(23.6") Ntev (R lossis L) Sliding Tray ntawm Stainless drawer slides Spindle Lock Qhov Rooj nrog ntsug ua haujlwm Kov Screen - Tsis siv neeg ntawm Solenoid |
|
Mini Antechamber |
Ib - Mini Antechamber - 304 Stainless Steel - 150mm(5.9") Diam. - 300mm(11.8") Ntev (R lossis L) Ntsia Hlau Qhov Rooj Kev tuav haujlwm ntawm tes Valve |
|
Gas Purification
|
Kev tshem tawm H2O thiab O2. Gas Container - 304 Stainless Hlau Absorber Unit: Copper Catalyst: 4.5Kg - Molecular Sieve: 4.5Kg Ua tau Purity: H2O - Tsawg dua 1ppm; O2 Tsawg dua 1ppm Capsulated Blower - 90 cubic meters/teev nrog zaus converter Regeneration - PLC tswj tag nrho cov txheej txheem xws li cua sov, sau cov roj sib xyaw (ua haujlwm roj / 5-10% H2 sib tov), thiab lwm yam. |
|
Tswj System |
PLC (Programmable Logic Controller). Cov yam ntxwv muaj xws li: Kev Tswj Xyuas Kev Ruaj Ntseg, Kev Tswj Xyuas Kev Ruaj Ntseg, Kev Tswj Kev Tsim Kho, Kev Tswj Siab, nrog rau kev kuaj xyuas tus kheej, lub zog tsis ua haujlwm rov pib dua thiab tiv thaiv tus password. Siemens 7 nti xim kov npo nrog kev ua haujlwm interface, qhia txog xwm txheej, lub thawv siab, noo noo thiab oxygen tus nqi thiab cov ntaub ntawv kaw lus. Lub siab hauv lub hnab looj tes tuaj yeem tswj tau nrog ob txhais taw pedals lossis PLC. Lub siab tuaj yeem teem caij nruab nrab ntawm +/- 10mbar. Yog tias qhov siab dhau +/- 12mbar lub kaw lus nrog tiv thaiv nws tus kheej. * Ntau yam li qub yuav tsum tau muab tso rau hauv lub rooj zaum valve ua los ntawm cov hlau tsis muaj steel, tsawg dua cov yeeb nkab txuas kom txo tau cov pa tawm. |
|
Lub tshuab nqus tsev twj |
Rotary Vane Pump nrog roj pos huab thiab roj ballast tswj. Peev xwm yog 8 cubic meters / teev. Dual Stage feem nrog qhov kawg nqus ntawm 3 x 10-2mbar |
| Organic kuab tshuaj adsorber |
Loj: muab tso rau hauv lub thawv, txoj kab uas hla 136mm, qhov siab 256mm, ntim nrog 2kg activated carbon, tuaj yeem hloov cov khoom sai sai, thiab tsis rhuav tshem cov huab cua purity siab.
|
|
Ua kom cov organic hnyav adsorption ntaus ntawv
|
Nyob rau hauv ib tug ywj siab purification txee
Dimensions: txoj kab uas hla 237mm, qhov siab 407mm, thickness 0.3mm Khoom siv: 304 stainless hlau Sau nrog 9kg high-performance activated carbon.Txuas mus rau lub ntsiab ncig pipeline, cov circulating gas tuaj yeem ua ntej ntws los ntawm cov organic hnyav tshem tawm cov khoom kom nqus cov organic hnyav hauv cov roj. lub circulating cua. |
Khoom Qhia
Ib qho chaw nres tsheb hnab looj tes TOB-GB-1220
Ob chav chaw nres tsheb hnab looj tes TOB-GB-2440
Sab Saib Ntawm Hnab looj tes Box
Pront Saib ntawm Hnab looj tes Box
Muab ntau hom Lab hnab looj tes
Peb Daim Ntawv Pov Thawj
Ntau Daim Ntawv Pov ThawjDaim ntawv pov thawj Patent
ISO 9001 Cov
CE Daim Ntawv Pov Thawj
