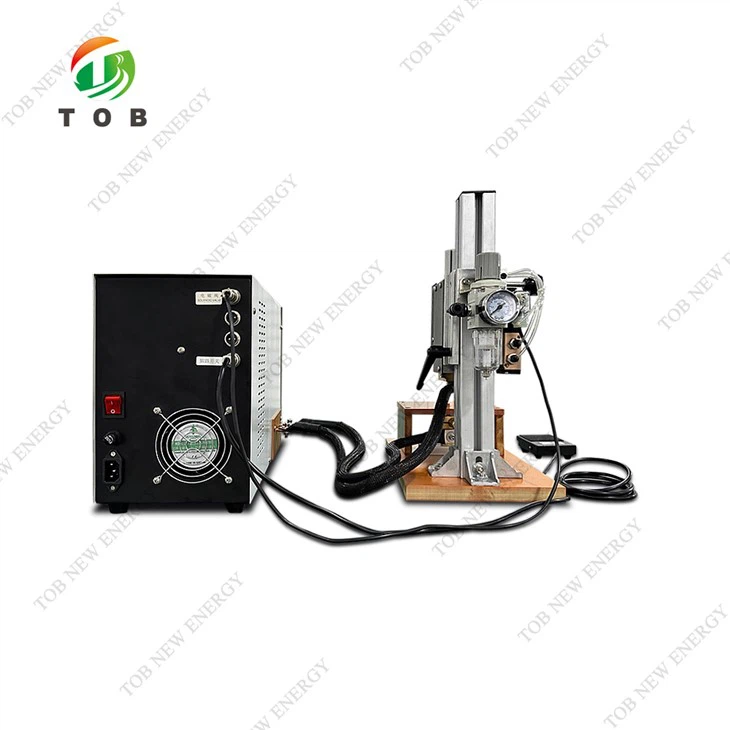

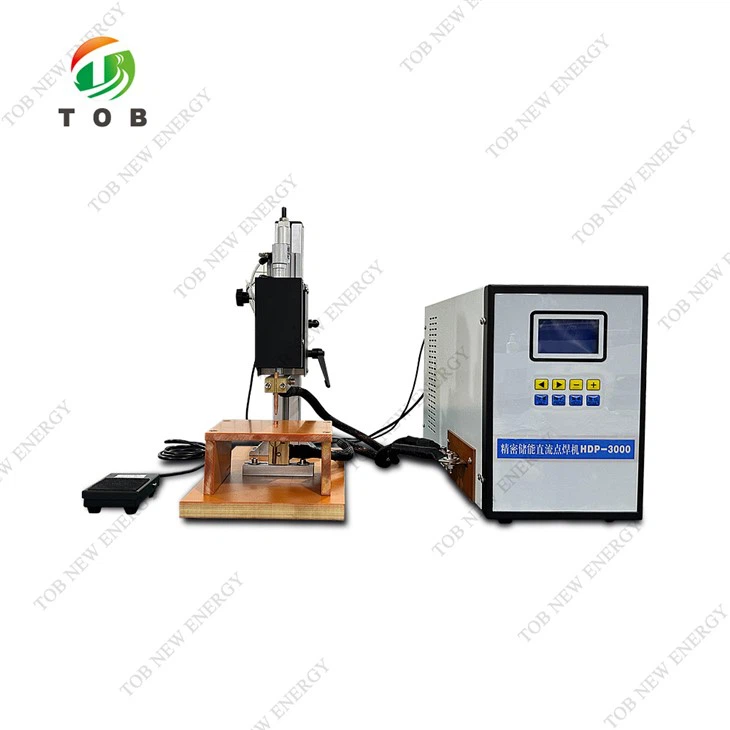

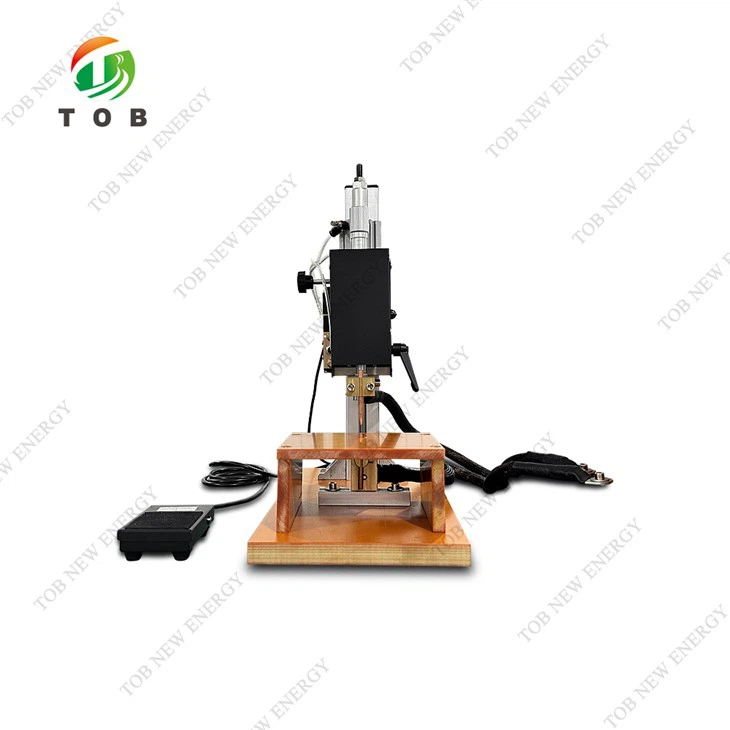

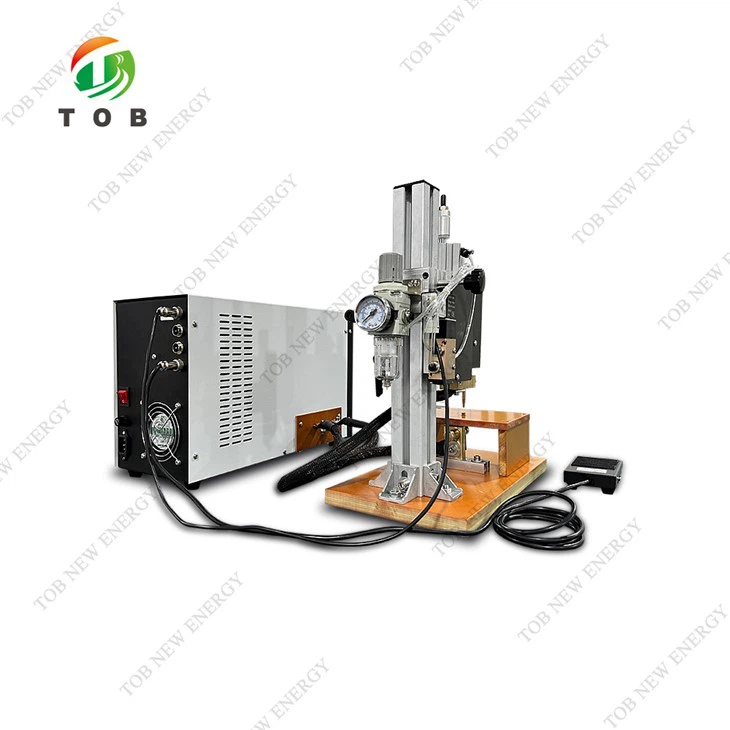

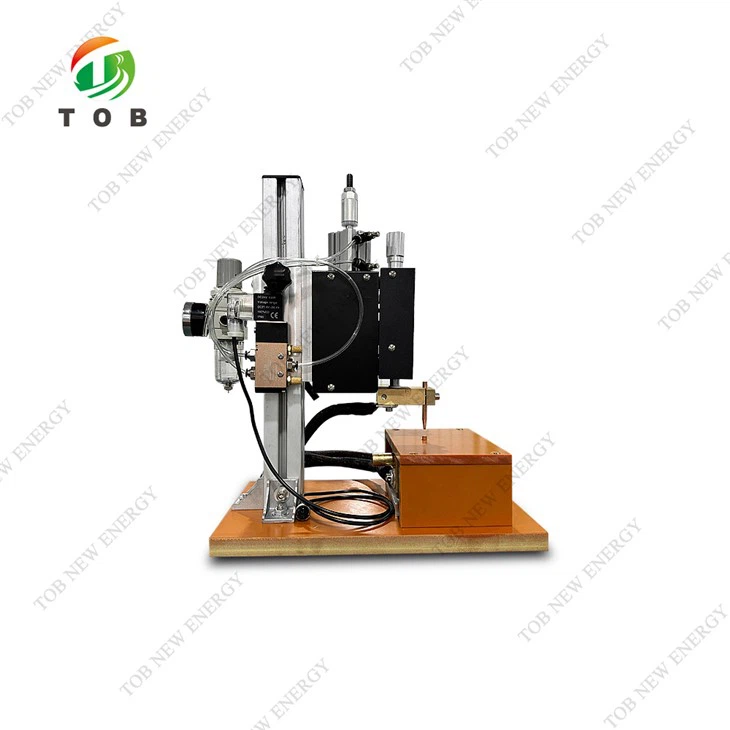

18650 Roj Teeb Pob Spot Welder



Mini roj teeb Spot Welder rau roj teeb pob





Main technical nta:



1. Lub vuam tam sim no yog dc, thiab tsis muaj qhov tsis zoo ntawm cov cua kub tsis tu ncua ntawm lub workpiece. Lub tshav kub concentration txhim kho cov vuam thermal efficiency, uas yog tshwj xeeb tshaj yog haum rau welding ntawm non-ferrous hlau cov ntaub ntawv thiab ib co refractory ntaub ntawv. Cov txheej txheem vuam yog qhov ruaj khov thiab qhov vuam zoo tau zoo dua qub. Lub neej electrode kuj tau txuas ntxiv.

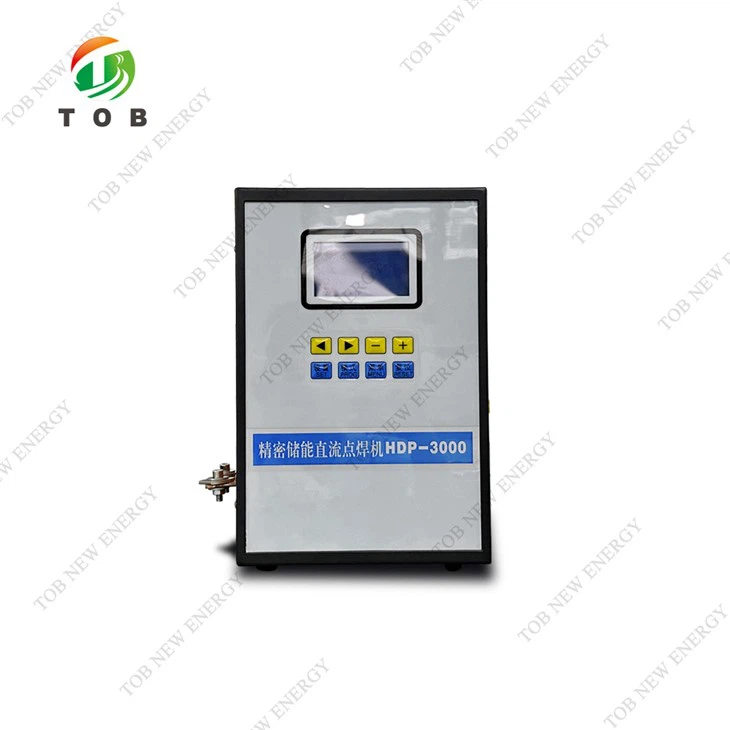

2. Lub LCD qhia tau ntau yam ntsiab lus, thiab cov duab qhia txog kev ua haujlwm tam sim no, tus phooj ywg ua haujlwm interface, vuam mem tes graphics los txhim kho qhov yooj yim ntawm kev soj ntsuam debugging.

3. Muaj kev kuaj mob tshwj xeeb thiab lub tswb ua haujlwm los daws cov teeb meem tam sim no, saib xyuas tus nqi overlimit, voltage overlimit thiab lwm yam txhaum.

4. Tus choj inverter txais cov cuab yeej hloov kho kom txo qis kev hloov pauv thiab cuam tshuam electromagnetic.

5. Kev kub ceev thiab siab precision microprocessor (MCU) tswj, muab kev ruaj khov rov ua dua vuam, nrog kev saib xyuas tam sim no.

6. Kev kub ceev vuam: pib ceev thiab siab polarity switching txo cov nyhuv kub kom ua rau cov vuam nto huv si thiab zoo nkauj.

7. Polarity switching: kev tawm tsam ntawm qhov tshwm sim asymmetrical ua rau ob lub ntsiab lus vuam lub zog zoo ib yam thiab txuas ntxiv lub neej kev pab cuam ntawm electrode.

8. Lub imported IBGT module tag nrho tswj cov paug, vuam zoo thiab vuam ceev, tsis zoo tib yam vuam tshuab yuav piv nrog nws.

9. Cov ntaub ntawv khaws cia siv EEPROM, tsis muaj teeb meem roj teeb, ib txwm rov qab mus rau yav dhau los siv cov txheej txheem vuam thaum koj pib.

10. Ob chav mem tes tuaj yeem txo qhov vuam spatter, zoo txhim kho qhov zoo ntawm vuam.

11. Vuam voltage locking tshuab los tiv thaiv net voltage fluctuations cuam tshuam rau vuam tam sim no.

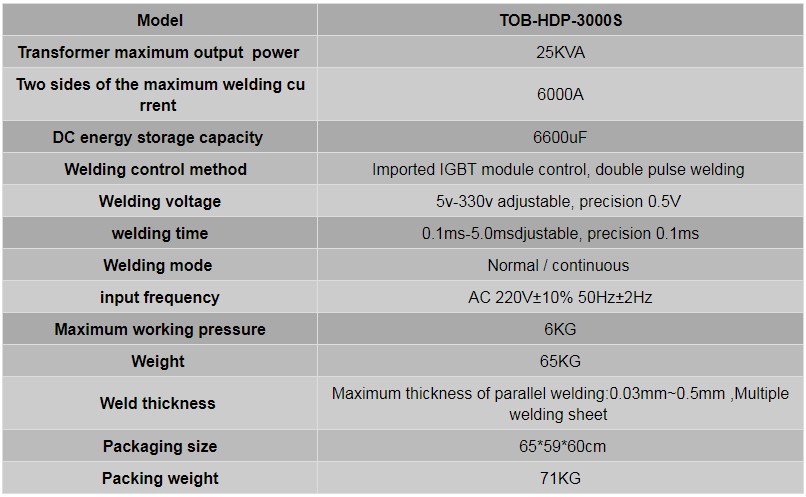

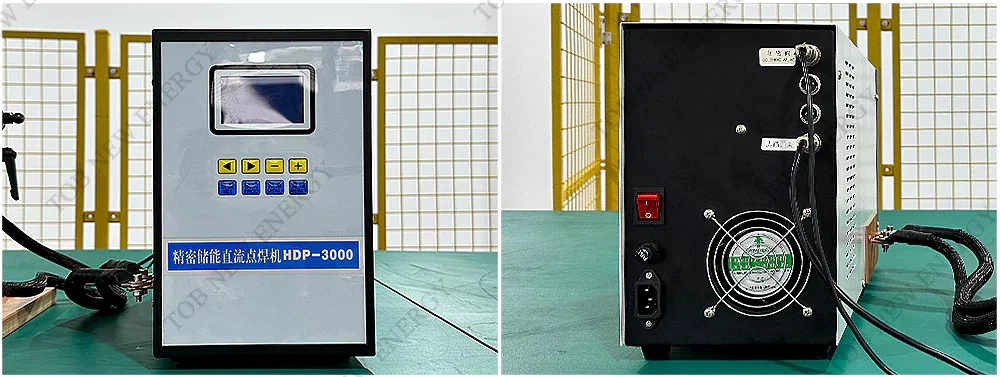

Model: TOB-HDP-3000S









Qauv: TOB-HDP-3000
