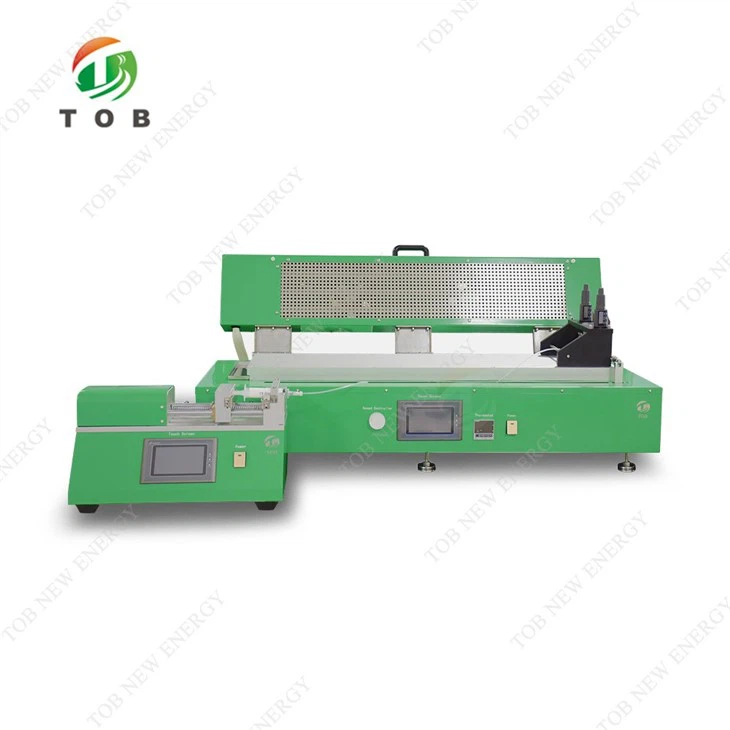

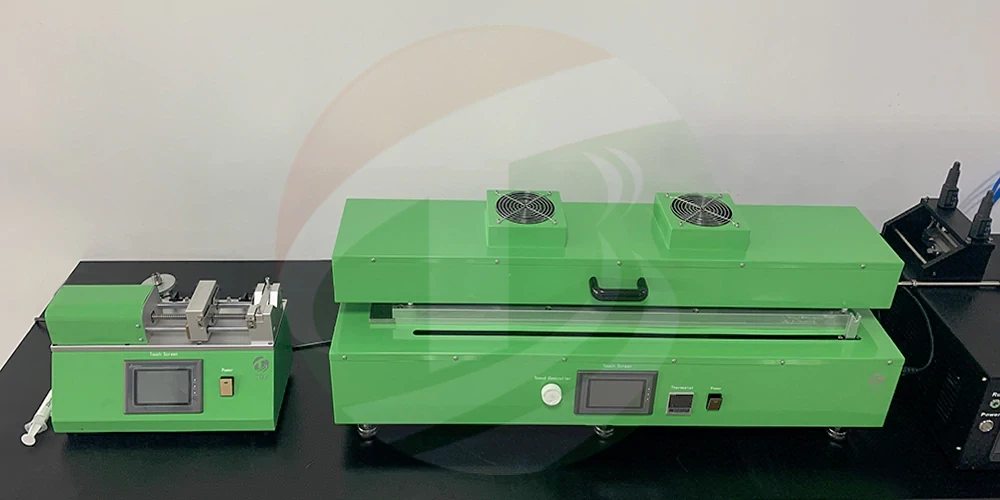

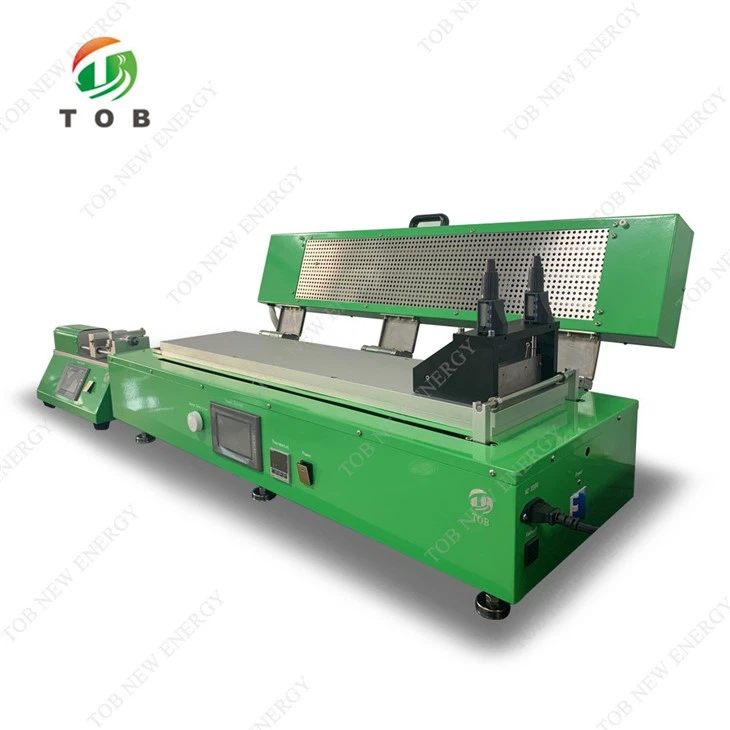

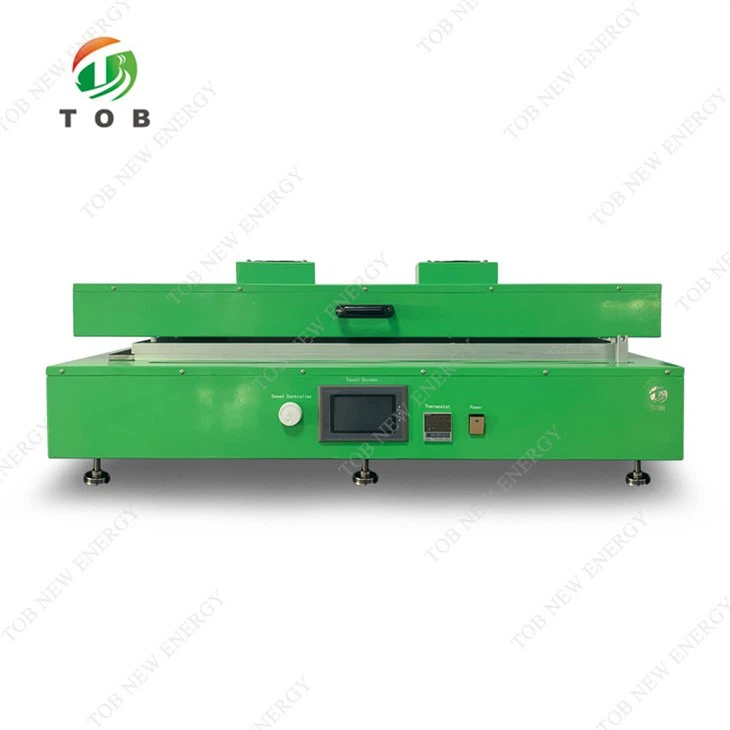

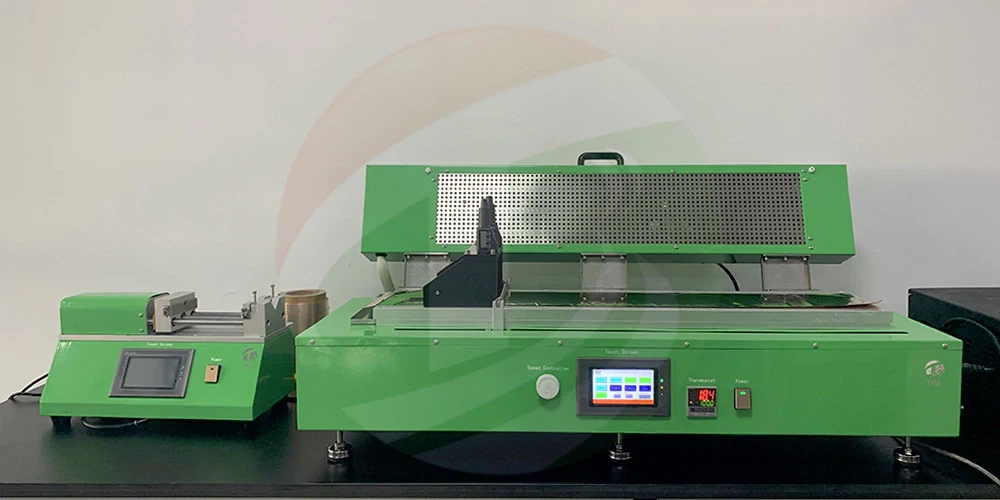

Lab Slot Tuag Coater

Model: TOB-JYCM-800
Txheej ceev: 0-200mm/s
Kho tau ntau yam ntawm scraper: 0 01-3.5mm
Cua sov thiab ziab tshuab: Chav ntsuas kub -130 degree, digital zaub kub tswj, raug ± 1 degree

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Lab Slot Tuag Coater

Product Video

Specification

Txais txoj kev tuag extrusion txheej txheem (txheej txheej txheem xws li scraper txheej, plaub-sab txheej txheej thiab hlau pas nrig txheej tuaj yeem xaiv). Feem ntau siv rau daim ntawv hom khoom nto txheej ntawm lithium roj teeb substrate txheej, hnub ci photovoltaic zaj duab xis thiab polymer conductive zaj duab xis, OLED thiab lwm yam teb.

coating device

* Muaj zog cua kiv cua kom qhuav cua sov, digital zaub kub tswj, siab tshaj plaws ua haujlwm kub 130 degree.

* Digital zaub timer, teem sijhawm kom qhuav.

* Txheej ceev tuaj yeem hloov kho li ntawm 0 - 120mm / s.

* Lub tshuab nqus tsev aluminium yias rau kev tso sai lossis tshem tawm cov substrates.

* Kev mob stroke tuaj yeem hloov kho los ntawm kev hloov pauv stroke ntawm 0 - 800mm.

* Squeegee nrog adjustable txheej thickness ({0}}.01mm raug).

* Me me tuaj yeem txuag chaw.

* Exquisite tsos, ntawv hlau txais peb-dimensional geometric tsim, yooj yim thiab zoo nkauj.

Qauv	TOB-JYCM-800
Qhov hluav taws xob	AC110V-220V, 50/60Hz, Ib Phase
Txheej txheej	Slot tuag tiaj phaj zaj duab xis txheej, txheem nruab nrog TOB-JY100 Slot tuag zaj duab xis applicator
Txheej tsav	Lub cev muaj zog tsav, txheej ceev nrog cov kauj ruam-tsawg teeb thiab hloov kho hauv lub vijtsam kov
Txheej ceev	0-200mm/s
Max Stroke	Cov hlab ntsha tuaj yeem hloov kho los ntawm kev hloov stroke ntawm 0-800mm
Lub tshuab nqus tsev phaj	Nrog lub tshuab nqus tsev aluminium phaj
Lub tshuab nqus tsev phaj loj	L900mm × W200mm × H32mm
Adjustable ntau yam ntawm scraper	0 01-3.5 hli
Cua sov thiab ziab system	Chav ntsuas kub -130 degree, digital zaub ntsuas kub tswj, raug ± 1 degree
fais fab mov	220V / 50Hz
Qhov hnyav	70 KG
Qhov ntev	L1000mm × W350mm × H320mm
Txheem accessories	Applicator, Crossbar, Collection box

Yuav siv li cas?

* Muab Al / Cu ntawv ci rau ntawm lub tshuab nqus tsev, lub zog rau, tig lub tshuab nqus tsev, Al / Cu ntawv ci adsorbed ntawm lub tshuab nqus tsev phaj;

* Tso tus neeg thov zaj duab xis rau ntawm Al / Cu ntawv ci;

* Pib txheej, lub laub pas nrig cia li thawb tus neeg thov zaj duab xis kom txav thiab txiav cov zaj duab xis;

* Tshem tawm cov yeeb yaj kiab applicator thiab thawb pas nrig, npog lub npog cua sov, teeb lub cua sov thiab lub sijhawm, thiab ua kom sov thiab ziab;

* Tom qab ziab, qhib lub hau cua sov, tshem tawm cov electrode tom qab txheej, ces rov pib dua zaj duab xis applicator.
