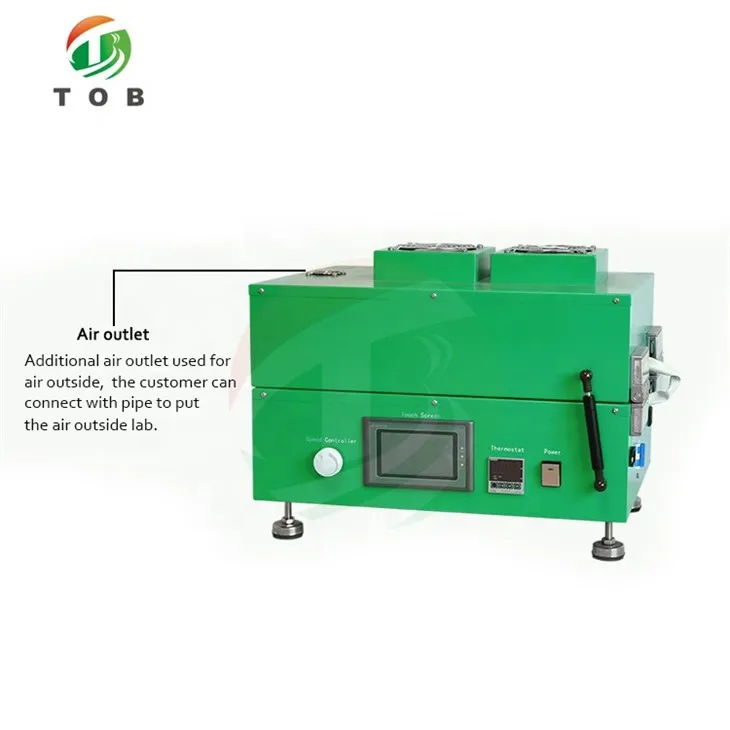

Desktop Slot Tuag Txheej Tshuab



Desktop Slot Tuag Txheej Tshuab







Txais txoj kev tuag extrusion txheej txheem (txheej txheej txheem xws li scraper txheej, plaub-sab txheej txheej thiab hlau pas nrig txheej tuaj yeem xaiv). Feem ntau siv rau daim ntawv hom khoom nto txheej ntawm lithium roj teeb substrate txheej, hnub ci photovoltaic zaj duab xis thiab polymer conductive zaj duab xis, OLED thiab lwm yam teb.



Main feature:

* Txais txheej txheem txheej txheej extrusion, txheej txheej raug thiab zoo sib xws.

* Kev txhaj tshuaj twj tso kua mis pub, kev pub noj kaw, tsis muaj kev cuam tshuam sab nraud, xim xav tau thiab pov tseg tsawg dua;
* Coated substrate yog lub tshuab nqus tsev nqus phaj, built-in lub tshuab nqus tsev twj;
* Ib qho yooj yim rau disassemble thiab ntxuav lub txheej pwm thiab pub system;
* Txais cov cua sov hauv cheeb tsam loj kom ntseeg tau tias qhov ntsuas kub tsis sib xws hauv cov kab noj hniav;
* Plat txheej, lub cev muaj zog tsav scraper txheej, txheej ceev yog ruaj khov thiab kho tau;
* Yuav siv tau rau hauv lub hnab looj tes, yooj yim rau kev khiav lag luam, me me, txuag chaw;
* PLC. Kov npo tswj, cov cuab yeej tsis hloov kho, cia, tswj tau yooj yim thiab ceev.



Qauv	TOB-JYCM-250
Qhov hluav taws xob	AC110V-220V, 50/60Hz, Ib Phase

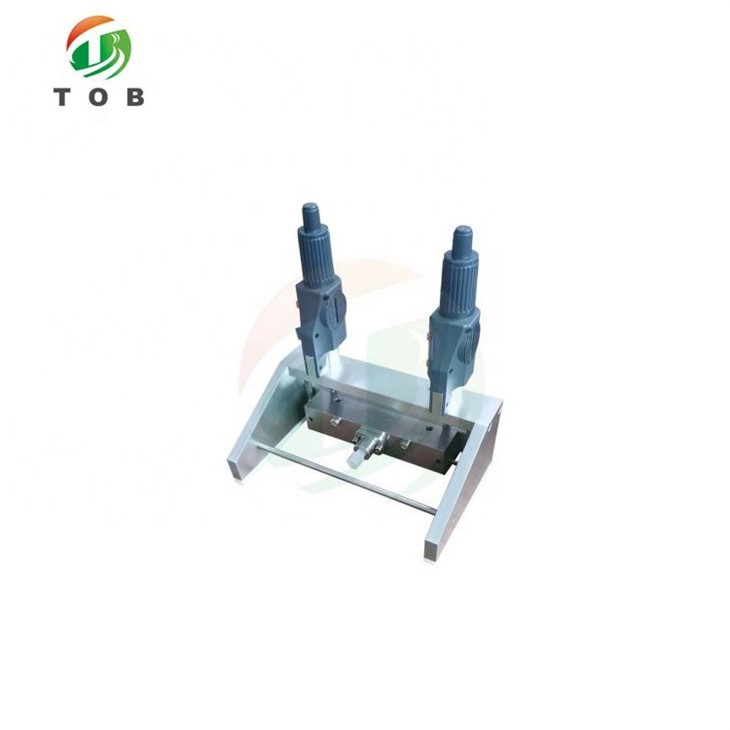

Txheej txheej	Slot tuag tiaj phaj zaj duab xis txheej, txheem nruab nrog TOB-JY100 Slot tuag zaj duab xis applicator
Txheej stroke	Txog 250mm Stroke nrog cov kauj ruam-tsawg thiab hloov kho hauv lub vijtsam kov
Txheej tsav	Lub cev muaj zog tsav, txheej ceev nrog cov kauj ruam-tsawg teeb thiab hloov kho hauv lub vijtsam kov
Txheej ceev	0 5-20mm/s
Lub tshuab nqus tsev phaj	Aluminium phaj nrog lub tshuab nqus tsev
Nqus phaj dimension	L365mm × W200mm × H32mm
Zaj duab xis applicator thickness kho ntau yam	0-5mm adjustable
Txhaj ntim	Stainless hlau txhaj tshuaj: max 60ml
Pub ceev	0 05-5mm/s (Piston ceev ntawm txhaj koob txhaj tshuaj)
Qhov tseeb	± 3μm, xaiv tau 1μmdigital dial meter
Cua sov kom qhuav qhov system	Chav ntsuas kub -130 degree, digital zaub ntsuas kub tswj, raug ± 1 degree
Tshuab dimension	L560mm × W420mm × H370mm
Tshuab hnyav	Txog 65 kg
Lus ceeb toom	Xws li ua-hauv roj-tsawg lub tshuab nqus tsev twj



Yuav siv li cas?

* Muab Al / Cu ntawv ci rau ntawm lub tshuab nqus tsev, lub zog rau, tig lub tshuab nqus tsev, Al / Cu ntawv ci adsorbed ntawm lub tshuab nqus tsev phaj;

* Tso tus neeg thov zaj duab xis rau ntawm Al / Cu ntawv ci;

* Pib txheej, lub laub qws cia li thawb tus neeg thov zaj duab xis kom txav mus thiab txiav cov zaj duab xis;

* Tshem tawm cov yeeb yaj kiab applicator thiab thawb pas nrig, npog lub npog cua sov, teeb lub cua sov thiab lub sijhawm, thiab ua kom sov thiab ziab;

* Tom qab ziab, qhib lub hau cua sov, tshem tawm cov electrode tom qab txheej, ces rov pib dua zaj duab xis applicator.
