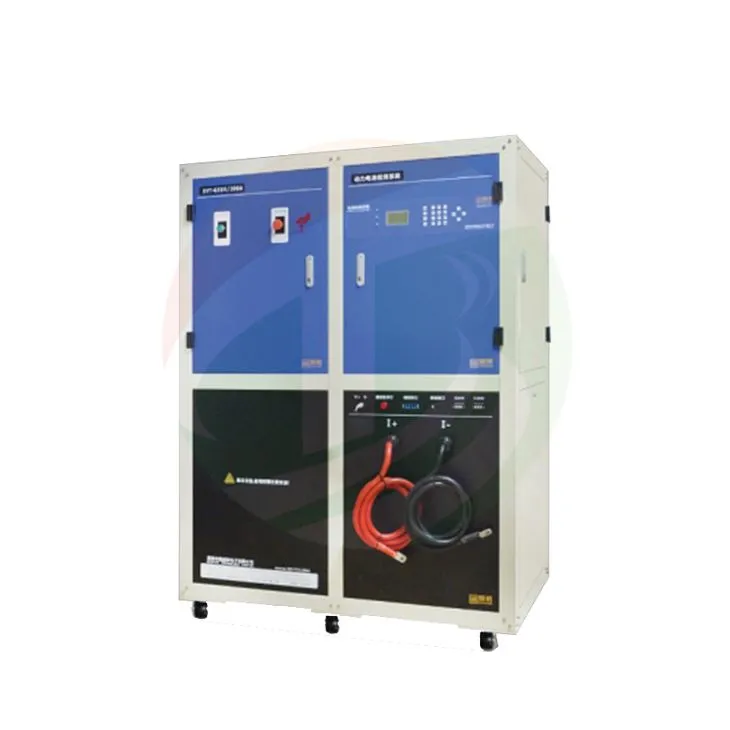

100V 100A Roj teeb Pob Them Tawm Tawm Tester

1.Model: 100V100A
2.Channel No.:1
3.Input Lub Zog: 12911W
4.MOQ: 1set

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

100V100A Roj teeb Pob Them Tawm Tawm Tester

Specification

100V100A yog qhov loj specification roj teeb tester siv rau kev ntsuas roj teeb muaj peev xwm.

Los ntawm kev them nyiaj thiab tawm mus kuaj lub peev xwm, DC tsis kam, lub neej voj voog thiab lwm yam.

Nws tuaj yeem txuas nrog lub khoos phis tawj los txheeb xyuas txhua hnub xeem nrog cov lus Askiv version ua haujlwm software.

Qhov project index		Parameter index
Lub zog nkag		AC 380V ± 10% / 50Hz
Kev daws teeb meem		AD: 16 ntsis; DA: 16 ntsis
Input Resistance		Ntau dua lossis sib npaug li 1MΩ
Lub zog nkag		12911W
Qhov hluav taws xob	Raws li Channel Voltage Range	Them nqi: 600mV ~ 100V
	Tshem tawm Min Voltage	2.5V
	Qhov tseeb	± 0.1% ntawm FS
	Kev ruaj ntseg	± 0.1% ntawm FS
Tam sim no	Raws li Channel Current Range	500mA ~ 100A
	Qhov tseeb	± 0.1% ntawm FS
	Kev ruaj ntseg	± 0.1% ntawm FS
	Tsis tu ncua voltage txiav tawm tam sim no	0.2A
Hwj chim	Raws li Channel tso zis zog	10000W
	Kev ruaj ntseg	± 0.2% ntawm FS
Sijhawm	Lub sij hawm teb tam sim no	Lub sijhawm nce siab tshaj plaws tam sim no 20ms
	Kauj Ruam Lub Sij Hawm	Tsawg dua lossis sib npaug rau (365 * 24) teev / kauj ruam, Lub Sijhawm Daim Ntawv Txhawb Nqa 00:00:00.000(h,min,s,ms)
Cov ntaub ntawv kaw	Cov ntaub ntawv xwm txheej	Lub sijhawm luv luv: 100ms
		Yam tsawg kawg nkaus Voltage: 200mV
		Lub sijhawm tam sim no yam tsawg kawg nkaus: 200mA
	Sau Zaus	10Hz
Them nqi	Charge hom	Them tsis tu ncua tam sim no, Them tsis tu ncua Voltage, Tsis tu ncua tam sim no thiab tsis tu ncua Voltage Charge, Tsis tu ncua lub zog them, roj teeb tsis tu ncua tam sim no tsis tu ncua voltage them
	Xaus Conditon	Voltage, Tam sim no, txheeb ze lub sij hawm, Peev xwm, -△V
Tso tawm	Tso tawm hom	CCD, CPD, CRD
	Qhov xwm txheej kawg	Voltage, Tam sim no, txheeb ze lub sij hawm, Peev xwm, -△V
Pulse hom	Them nqi	Hom tam sim no tsis tu ncua, Lub zog tsis tu ncua
	Tso tawm	Hom tam sim no tsis tu ncua, Lub zog tsis tu ncua
	Tsawg kawg pulse dav	500ms ib
	Tus naj npawb ntawm pulses	Ib kauj ruam pulse txhawb 32 txawv pulses.
	Them thiab tso tawm tsis tu ncua hloov pauv Qhov xwm txheej kawg	Ib kauj ruam mem tes tuaj yeem siv los ntawm kev them nyiaj mus rau qhov tso tawm ntawm kev hloov mus tas li Voltage, txheeb ze lub sijhawm
DCR kev xeem	Kev them nyiaj yug rau kev cai coj point xam ntawm DCR
Lub voj voog	Loop Measure Range	1-65535x
	Max Steps Per Loop	254
	Nested Loop	Nested voj muaj nuj nqi, Max Txhawb 3 Txheej
Kev tiv thaiv	Kev Tiv Thaiv Software	l Fais fab-down Data Protection
		l Off-line Test Function
		l Kev Tiv Thaiv Kev Tiv Thaiv, Kev Teeb Meem: Tsawg Voltage limit, Upper Voltage limit, Tsawg Tam sim no txwv, Upper Tam sim no txwv, ncua sij hawm
	Kev tiv thaiv kho vajtse	Ntxiv Anti-reverse Protection Model
Voltage thiab Current Test Sample		4-kev sib txuas
Suab nrov		<85dB
Database		MySQL Database
Ib Hom Kev Sib Txuas Lus ntawm Upper Machine		TCP/IP raws tu qauv
Cov ntaub ntawv tso zis		EXCEL 2003, 2010, TXT
Server disk configuration		500 GB
leakage tam sim no		0.1mA
Kev khiav hauj lwm qhov kub thiab txias		{{0}} degree ~ 40 degree (Nyob rau hauv thaj tsam ntawm 25 + 10 C, kom paub meej qhov tseeb ntawm kev ntsuas: precision drift 0.005% FS ntawm / C)
IP tiv thaiv chav kawm		Kev tiv thaiv chav kawm IP20
Channel yam ntxwv		Qhov chaw tam sim no tsis tu ncua thiab qhov chaw siab tsis tu ncua txais cov qauv kaw ob npaug
Channel tswj hom		ywj siab tswj
Cia qhov kub thiab txias		-10 degree ~ 50 degree
Ua hauj lwm ib puag ncig txheeb ze humidity ntau		Tsawg dua lossis sib npaug li 70% RH (Tsis muaj dej vapor condensation)
Cia ib puag ncig txheeb ze humidity ntau		Tsawg dua lossis sib npaug li 80% RH (Tsis muaj dej vapor condensation)
Hom kho		Alligator clamp
Fixture duab
		Alligator clamp Polymer clamp Hlau qhov ntswg clamp
Chassis loj ib chav (W * D * H) (mm)		36U（24"）,7306001780
