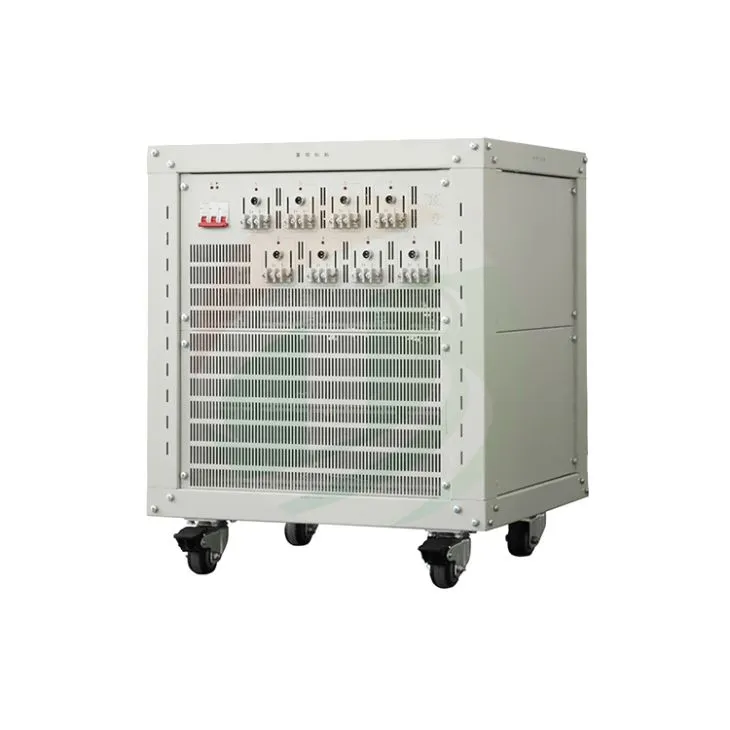

5V30A Roj teeb thiab Super Capacitor Tester

1. Lub zog hluav taws xob: 220 V ± 10% / 50 Hz2. daws teeb meem: AD: 16 ntsis; DA: 16 ntsis 3. Input Resistance: Ntau dua lossis sib npaug rau 1MΩ

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

5V30A Roj teeb thiab Super Capacitor Tester

Specification

TOB-CT-4008-5V30A-NFA Roj teeb thiab Super Capacitor Tester feem ntau yog siv rau lithium roj teeb thiab kev ntsuas supercapacitor nrog kev them nyiaj thiab tso tawm lub neej kev sim ntsuas lub neej.

Qhov project index		Parameter index
Lub zog nkag		AC 220V ± 10% / 50Hz (AC110V / 60HZ)
daws teeb meem		AD: 16 ntsis; DA: 16 ntsis
Input Resistance		Ntau dua lossis sib npaug li 1MΩ
Lub zog nkag		2127W
Channel Features		Qhov chaw tam sim no tsis tu ncua thiab qhov chaw qhov hluav taws xob tas li nrog Independent khub ntawm Closed-loop Structure
Channel Tswj hom		Independent Control
Qhov hluav taws xob	Raws li Channel Voltage Range	Them nqi: 25mV ~ 5V; Tawm: 25mV ~ 5V
	Tshem tawm Min Voltage	2.5V
	Qhov tseeb	± 0.05% ntawm FS
	Kev ruaj ntseg	± 0.05% ntawm FS
Tam sim no	Raws li Channel Current Range	Them nqi: 150mA ~ 30A; Tawm: 150mA ~ 30A
	Qhov tseeb	± 0.05% ntawm FS
	Kev ruaj ntseg	± 0.05% ntawm FS
Hwj chim	Raws li Channel tso zis zog	150W
Hwj chim	Kev ruaj ntseg	± 0.1% ntawm FS
Sijhawm	Lub sij hawm teb tam sim no	1ms (0-Ntaus puv)
Sijhawm	Kauj Ruam Lub Sij Hawm	Tsawg dua lossis sib npaug rau (365 * 24) teev / kauj ruam, Lub Sijhawm Daim Ntawv Txhawb Nqa 00:00:00(h,min:s,ms)
Cov ntaub ntawv kaw	Cov ntaub ntawv xwm txheej	Lub sij hawm ua piv txwv qis: 100ms
		Kev ntsuas qis qis: 5mV
		Kev ntsuas qis tam sim no: 30mA
	Sau Zaus	10Hz
Them nqi	Charge hom	Them tsis tu ncua tam sim no, Them tsis tu ncua Voltage, Tsis tu ncua tam sim no thiab tsis tu ncua Voltage Charge, CPC
Them nqi	Xaus Conditon	Voltage, Tam sim no, txheeb ze lub sij hawm, muaj peev xwm
Tso tawm	Discharge hom	CCD, CPD, CRD
Tso tawm	Qhov xwm txheej kawg	Voltage, Tam sim no, txheeb ze lub sij hawm, muaj peev xwm,
mem tes	nqi	CCC
	Tso tawm	CCD
	Min mem tes dav	500ms ib
	Automated Hloov	Automated swith los ntawm tus nqi kom tso tawm rau txhua tus mem tes
	Qhov xwm txheej kawg	Voltage, Test Sijhawm
Lub voj voog	Loop Measure Range	1-65535x
	Max Steps Per Loop	254
	Nested Loop	Nested voj Function, Max Txhawb 3 Txheej
Kev tiv thaiv	Kev Tiv Thaiv Software	l Fais fab-down Data Protection
		l Off-line Test Function
		l Kev Tiv Thaiv Kev Tiv Thaiv, Kev Teeb Meem: Tsawg Voltage limit, Upper Voltage limit, Tsawg Tam sim no txwv, Upper Tam sim no txwv, ncua sij hawm
	Kev tiv thaiv kho vajtse	Ntxiv Anti-reverse Protection Model
Voltage thiab Current Test Sample		4-kev sib txuas
Suab nrov		<85dB
Database		MySQL Database
Ib Hom Kev Sib Txuas Lus ntawm Upper Machine		TCP/IP raws tu qauv
Cov ntaub ntawv tso zis		EXCEL, TXT, Graph
Kev sib txuas lus Interface		Ethernet Chaw nres nkoj
Ib Unit Main Channels No.		8
Qhov ntev		12U, 482 * 508 * 378 (mm)
