Hluav taws xob Sodium Ion roj teeb Calendar Tshuab

Rolling Press Dav:
TOB-DG-100L: Max 100mm
TOB-DG-200L: Max 200mm
TOB-DG-300L: Max 300mm
TOB-DG-500L: Max 500mm

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

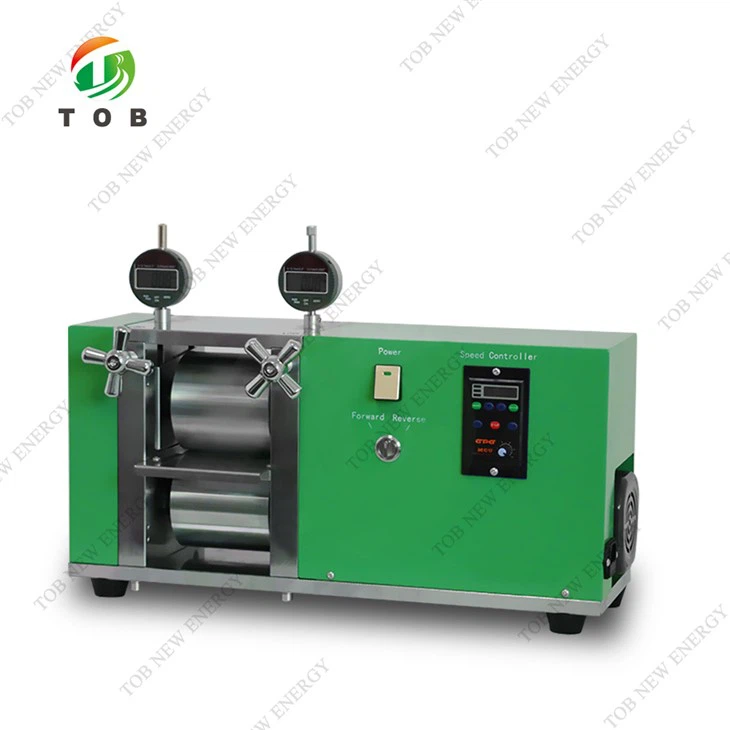

TOB-DG Series Fais Roj Teeb Calender Tshuab Rau Sodium ion Battery Electrode Rolling

Product Video

Specification

TOB-DG series dov xovxwm tshuab yog tsuas yog siv rau cov khoom siv roj teeb, cov khoom siv me me xws li cov khoom kub thiab nyiaj thiab Cu lossis Al nonferrous hlau cov ntaub ntawv hluav taws xob calendering. Nws yog dov xovxwm tuab yog adjustable nrog yooj yim ua hauj lwm, tshwj xeeb tshaj yog muaj feem xyuam rau lithium ion roj teeb electrode ceev nce.

Yog tias tseem xav tau cua sov ua haujlwm, tuaj yeem xaiv TOB-JS system, yog tias koj xav tau ib qho pheej yig dua, tuaj yeem xaiv phau ntawv qauv TOB-SG system.

2 Main feature:

* Cov menyuam muaj zog siab, hardness txog HRC62 thiab xeb kuj.

* Txais inclined thaiv los kho qhov sib txawv, nrog siab precision. Digital zaub rau kev ua haujlwm yooj yim.

* Vertical tsim, yooj yim rau yob cov ntaub ntawv.

* Txais cov iav meshing kev sib hloov kom ua tiav cov xovxwm.

* Lub thickness thiab ceev ntawm cov ntsiav tshuaj tuaj yeem hloov kho, thiab cov duab zoo nkauj thiab zoo nkauj.

* Hluav taws xob dov, khiav automation.

* Me me, ua haujlwm yooj yim, yoog raws thiab siv tau sai.

* Siab dov qhov tseeb, Lub cylindricity ntawm cov menyuam Tsawg dua los yog sib npaug rau ± 2um

Qauv	TOB-DG-100L	TOB-DG-200L	TOB-DG-300L	TOB-DG-500L
Ua haujlwm Qhov hluav taws xob	110V / 220V AC ib theem yeem xaiv tau
Hwj chim	120W	200W	200W	300W
Roller Size	Φ100 * 100 hli	Φ100 * 200 hli	Φ100 * 300 hli	Φ100 * 500 hli
Rolling xovxwm dav	Max 100 hli	Max 200 hli	Max 300 hli	Max 500 hli
Khoom dimension (LWH)	385 * 245 * 355 hli	660 * 220 * 290 hli	700 * 245 * 355 hli	900 * 245 * 355 hli
Khoom siv hnyav	55kg ua	8 5 KG	130 KG	180 KG
Roller Cylindricity	Tsawg dua lossis sib npaug ± 2um
Roller Hardness	HRC62
Roller tiav	Ntau dua lossis sib npaug rau 0.4
Rolling xovxwm tuab	0-2mm adjustable clearance, nrog Digital zaub dial qhia
Pub ceev	Infinitely variable ceev, 0-40mm/s adjustable, Digital zaub ceev teeb
Daim ntawv ceeb toom	Cov menyuam no yog tsim tshwj xeeb rau cov roj teeb R & D raws li nws qhov zoo raws li tus nqi pheej yig, compact thiab meej. 1. Yuav tsum tau siv acetone los ntxuav thiab qhuav cov menyuam qhov chaw tom qab siv txhua zaus kom tsis txhob xeb 2. Coated Rust-proof roj yog lub tshuab yuav tsum tsis txhob siv rau lub sij hawm ntev 3. Qhov tsawg kawg nkaus thickness ntawm daim ntawv dov yuav tsum nyob ntawm seb lub cev khoom ntawm cov ntaub ntawv.
Warranty	Ib xyoos txwv kev tsim khoom warranty nrog kev txhawb nqa lub neej
Daim ntawv pov thawj	CE
Txheem configuration	Sab hauv hexagon wrench * 1set Dial taw qhia * 1 khub Kev ntsuas ntsuas ntsuas * 1pcs

Siv cov ntaub ntawv tester(Sample xeem yog muaj raws li tus neeg thov kev thov)

Hluav taws xob	Loj	Thawj thickness	Ua tiav thickness
LiFePO4 ob sab	50mm Dav x 260mm Length	0.205 hli	0.09 hli
LiMn2O4 ob sab	50mm Dav x 260mm Length	0.205 hli	0.09 hli
Copper ntawv ci + graphite (ib sab)	75mm Dav x 240mm Length	0.09 hli	0.04 hli
