Roj Teeb Kub Sealing Tshuab

1.Model:TOB-YF200-JZ
2.Function: Roj teeb Thaum tshav kub kub sealing thiab sawv ob hauv ib lub tshuab
3. Warranty: ib xyoos
4.Net nyhav: Txog 76kg

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

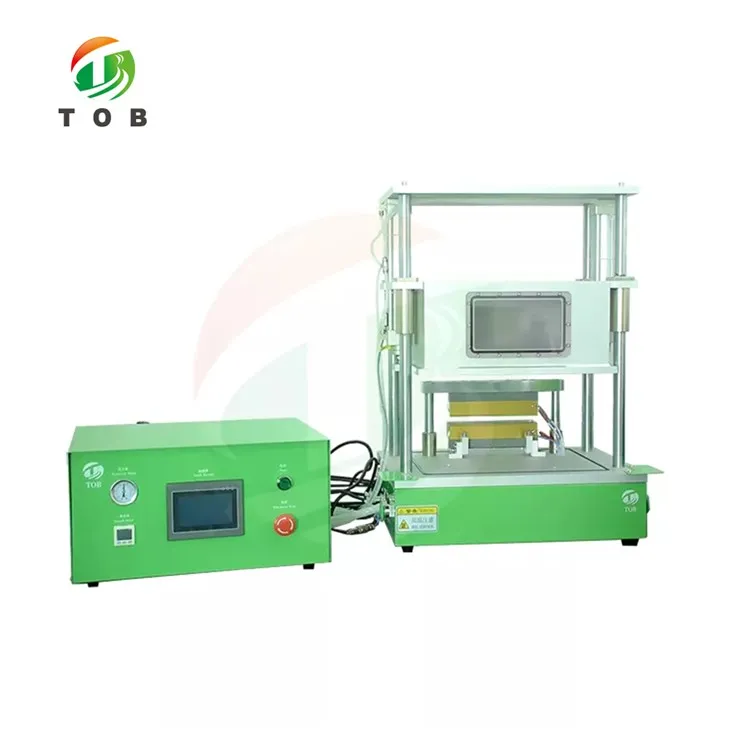

Roj teeb Thaum tshav kub kub Pre-sealing thiab Nqus Diffusion Tshuab Ob nyob rau hauv ib tug

Product Video

Specification

TOB-YF200-JZ Vacuum diffusion thiab pre-sealing all-in-one tshuab yog tsim los rau kev tshawb fawb roj teeb lithium-ion. Nws yog tsuas yog siv los tshem tawm cov huab cua los ntawm electrolyte nyob rau hauv lub tshuab nqus tsev tej yam kev mob tom qab lub electrolyte yog txhaj rau hauv lub polymerized lithium ion roj teeb / cylindrical roj teeb, thiab thaum kawg tsim ib lub foob. Nws yog ib qho yooj yim rau kev khiav lag luam thiab haum rau txhua hom roj teeb (tshwj xeeb tshaj yog lub hnab mos roj teeb thiab lub tog raj kheej roj teeb). Lub sijhawm tshwj xeeb ntawm lub tshuab nqus tsev tswj lub tshuab tso cai rau cov electrolyte kom huv si saturate lub electrodes kom ntseeg tau tias lub roj teeb zoo tshaj plaws them-tso tawm kev ua haujlwm.

Qauv	TOB-YF200-JZ
Fais fab mov	110-240 V, Ib Theem 50/60Hz
Max. Hwj chim	500W
Warranty	Ib xyoos txwv nrog kev txhawb nqa lub neej
Compress Cua	0 5-0.8Mpa
Chamber Lub Cev	12mm tuab Aluminium rooj plaub nrog kev soj ntsuam qhov rais
Nqus Qib	Lub tshuab nqus tsev nyob ruaj khov, Lub tshuab nqus tsev kawm ntawv thiab lub tshuab nqus tsev lub sij hawm tuaj yeem teeb tsa ntawm nws tus kheej Lub tshuab nqus tsev hom (ib zaug lossis ob zaug) tuaj yeem xaiv Kev teeb tsa yooj yim rau lub tshuab nqus tsev tshwj xeeb Lub tshuab nqus tsev kawm ntawv tuaj yeem ncav cuag -90Kpa-0, nrog kev sib khi zoo, tuaj yeem lav 1 feeb cua nkag tsis ntau tshaj 0.01 MPa
Vacuum Condition Tuav Sijhawm	0 - 9999 sec, kho tau
Sealing kom zoo dua	1 Sealing Lub taub hau txais cov khoom siv tooj liab, zoo hloov hluav taws xob, 2 Nrog kho phaj, tuaj yeem siv rau cov roj teeb sib txawv, thiab kho tau yooj yim
Sealing taub hau TEM	RT -250 degree, kho tau
TEM qhov tseeb	± 2 degree
Thaum tshav kub kub sealing siab	0-7Kg/cm2, kho tau
Kub Sealing Sijhawm	0-99s, kho tau
Sealing Hniav	Hom tawv (tsis muaj roj hmab, tsuas yog rau Al case sealing, tsis haum rau sealing rooj nrog tab nyob nruab nrab)
Sealing dav	5mm, customized
Sealing taub hau ntev	200 hli
Haum roj teeb loj (Inner size)	180 * 120 * 10mm
Qhov ntev	Lub thawv ua haujlwm: 570 * 420 * 750mm Control Unit: 460 * 480 * 250mm Sab hauv Chamber Loj: 350 * 285 * 165mm
Net nyhav	76kg ib
