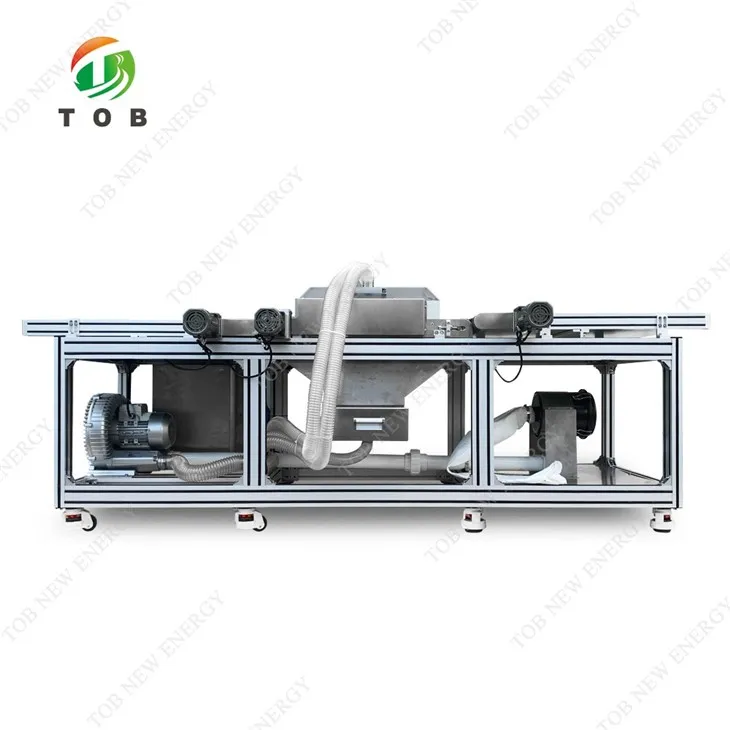

Hmoov Txhuam Tshuab

Functional Overview

1.Cov khoom siv no yog tsim rau cov txheej txheem txhuam hniav tom qab tuag-txiav ntawm electrode thiab lithium roj teeb electrode

2. Kev khiav haujlwm:

Cov cuab yeej txuas nrog tom qab lub tshuab electrode tuag-txiav. Tom qab lub tshuab txiav tuag ua cov tshuab electrode, txoj kab nqes nqes nqes mus rau txoj siv conveyor, cov khoom siv conveyor siv electrode raug thauj mus rau hauv cov hmoov txhuam hniav rau cov hmoov txhuam, thiab tom qab ntawd cov conveyor siv yog thauj, thiab cov phaj nqes nqes mus rau hauv cov hmoov txhuam hniav. cov ntaub ntawv phaj.

Basic tsis

1. Khoom siv fais fab: AC220 / 50Hz ± 10 feem pua,

2.power Tsawg dua lossis sib npaug ntawm 2KW;

3.Compressed cua: Ntau dua lossis sib npaug rau 0.6MPa;

4. Nyhav: li ntawm 0.25T

5. Dimensions: 3200mmx1050mmx1100mm (LxWxH)

Technical parameter

1. Ua hauj lwm ceev: khiav ceev ntawm hmoov txhuam mesh siv 200mm / s

2.Electrode loj: Ntev 150mm ~ 260mm; Dav 80mm ~ 130mm

Kev ua tau zoo

1.Mesh siv hom hmoov txhuam tshuab, sab sauv thiab qis ntawm cov electrode yog txhuam tib lub sijhawm.

2.Multiple txhuam kab thiab txhuam txhuam ua haujlwm ua ke kom tiav cov txheej txheem txhuam hniav kom ntseeg tau tias cov hmoov txhuam hniav zoo.

3.Lub sab sauv thiab qis kaw plua plav suction chamber ntawm cov hmoov txhuam hniav mechanism tiv thaiv cov electrode los ntawm cov pa phem thib ob thiab tsis txhob muaj kuab paug ntawm qhov chaw ua haujlwm.

4.Large cua ntim centrifugal tso kiv cua rau plua plav sau.

5.Exhaust kiv cua inlet lim, tiv thaiv kiv cua, thawj pom; Lub qhov hluav taws xob daim ntaub lub hnab yog siv rau qhov thib ob pom ntawm cov pa tawm.
