Model: TOB-WF-10M-304/316
Lub kauv cua ntws crushing yog tias cov huab cua ceev ceev ua rau cov khoom sib tsoo nrog ib leeg nyob rau hauv kev sib tsoo chamber nyob rau hauv cov kev taw qhia tangential, thiab cov khoom tawg nyob rau hauv lub comprehensive quab yuam xws li shear.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

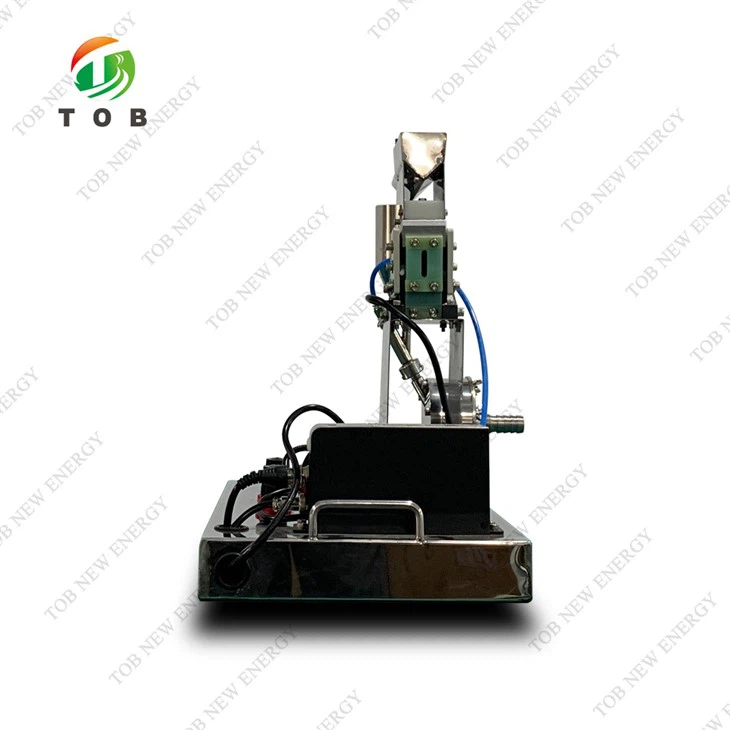

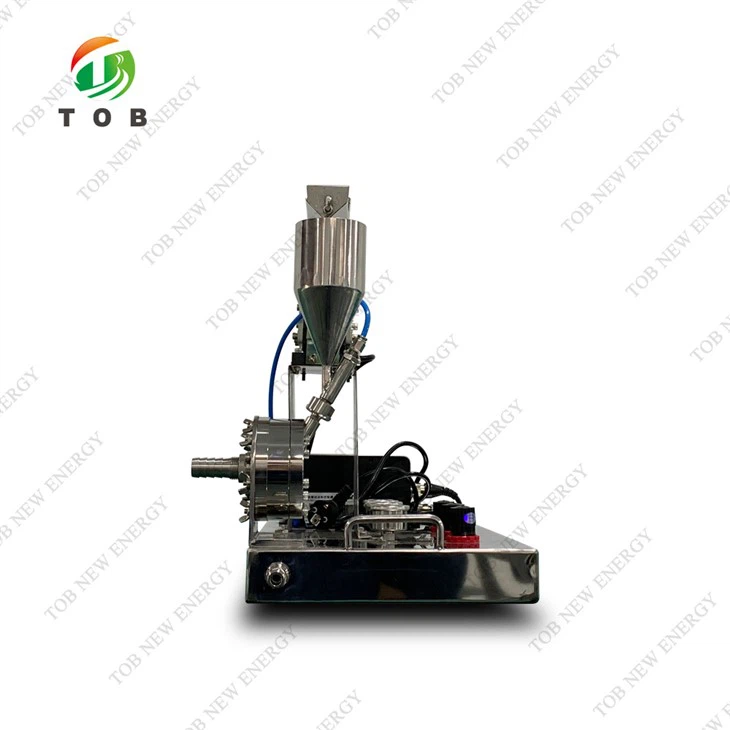

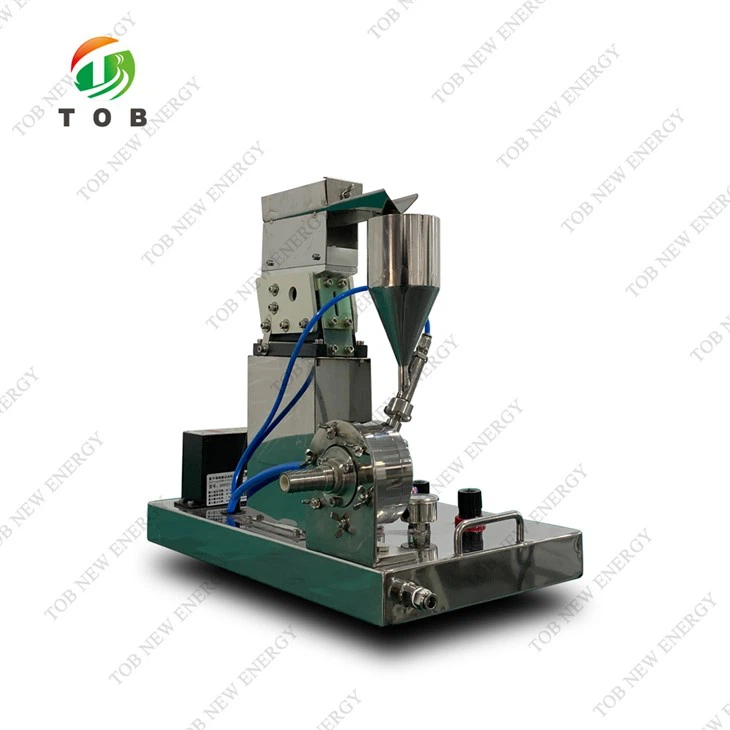

Laboratory Jet Mill

Specification

Khoom siv yeem:(Tiv tauj peb rau ib qho kev tsocai)

Qauv: TOB-WF-10M-304/316

304 SS Ceramic Lining Jet Mill

304 SS Ceramic hauv ob sab phlu dav hlau zeb

316 SS Jet Mill

316 SS Dav Hlau Mill

1. Lub hauv paus ntsiab lus ua haujlwm

Lub kauv cua ntws crushing yog tias cov huab cua ceev ceev ua rau cov khoom sib tsoo nrog ib leeg nyob rau hauv kev sib tsoo chamber nyob rau hauv cov kev taw qhia tangential, thiab cov khoom tawg nyob rau hauv lub comprehensive quab yuam xws li shear. Tom qab cov roj compressed tso tawm instantaneously los ntawm lub Laval nozzle, lub tshav kub nqus nyhuv yog generated, thiab lub tshav kub generated nyob rau hauv crushing txheej txheem yog muab tshem tawm, yog li ntawd cov khoom yuav crushed nyob rau hauv qis kub.

2. Cov yam ntxwv ua tau zoo

Tshwj xeeb tsim nyog rau R & D tshiab cov khoom tshawb fawb thiab kev loj hlob

Kauv cua zeb yog cov khoom tsim tshwj xeeb rau cov qauv siv lead ua

Yuav crushed khoom particle loj D50 2~100 microns

Cov khoom me me (5g) ntawm cov ntaub ntawv tuaj yeem ua tau zoo, nrog kev tsim ntau tshaj plaws nyob ntawm cov khoom siv thiab cov khoom siv me me.

Nws tuaj yeem ncav cuag 100g ~ 500g / h, thiab qhov siab tshaj plaws ntawm cov khoom tawg yooj yim tuaj yeem ncav cuag 1000g / h.

3, Tsim nta:

★ Yooj yim los ntxuav tag nrho cov qauv, tsis muaj cov ces kaum tuag lossis qhov khoob, tsis muaj cov ntsiab lus vuam.

★ Low loss rate, high yield (> 95%).

★ Compact rau chav kuaj lossis lub rooj zaum ua haujlwm.

★ Lub nplhaib nozzle thiab hauv qab ntawm lub zeb tuaj yeem sib cais, thiab lub nozzle yog tsim los ntawm lub nplhaib nozzle.

★ Sib cais kev sib txuas rau compressed cua txhaj tshuaj rau kev sib tsoo, ywj siab tswj.

★ Lub kaw lus tuaj yeem tshem tawm tag nrho yam tsis muaj cov cuab yeej los ntxuav yooj yim.

★ Vibratory feeding yog siv, los yog kev pub mis yog xaiv tau (kev cai)

4, Lub zog thiab compressedhuab cua

Lub hwj chim: 220V, 50HZ

Compressed cua ntim: 1m3 / min, siab 0.6mpa

5, Khoom siv

Tshwj tsis yog tias tau teev tseg, txhua yam yog ua los ntawm 304 stainless hlau

6, Cov khoom siv muaj pes tsawg leeg:

TSIS MUAJ	Lub npe	Kev teeb tsa	Lus ceeb toom
1	Pub noj system	- Nto precision polishing - Pub tus nqi yog kho tau los ntawm kev hloov pauv zaus - Qhov ntim yog li 1L - Cov pob qij txha yog clamped, yooj yim rau disassemble thiab ntxuav
2	MQP01 Ntsia hlau hom cua ntws pulverizer lub ntsiab tshuab	- Txhua qhov txuas txuas tau txais cov qauv nrawm nrawm, yooj yim disassembly thiab sib dhos - Lub cev sib tsoo yog tsim los ntawm 3 qhov chaw, thiab CNC machining ua rau tsis muaj qhov sib hloov - Smooth sab hauv tsis muaj lub kaum sab xis tuag, yooj yim los ntxuav thiab tua kab mob - Sab hauv yog kho nrog ceramic hauv ob sab phlu, thiab sab nrauv yog ua los ntawm 304 stainless hlau - Haum rau kev siv chav kuaj huv, tsis muaj plua plav spillover - Fluidizing kab noj hniav optimized flow teb tsim thiab txhim kho particle loj stability ntawm 1 nozzle nplhaib - Nruab 4 supersonic nozzles, cov khoom siv hauv cov kua dej, kev sib tsoo tam sim - Nozzle nplhaib hloov tau, yooj yim rau disassemble thiab ntxuav
3	Pneumatic accelerator	- 1 Laval nozzle thiab 1 Venturi nozzle. - Tsis muaj lub kaum sab xis tuag, yooj yim rau disassemble thiab ntxuav. - Lub interface txais hom kev thauj khoom ceev.
4	Cov khoom tank	- Ntim txog 1L. - Clamp kev twb kev txuas, yooj yim rau disassemble thiab huv si.
5	Hluav taws xob tswj lub thawv	- Carbon steel spray plhaub. - Nrog rau kev ntsuas siab, lub siab txo valve, tswj ceev khawm, lub sij hawm relay thiab tag nrho cov khoom hluav taws xob. - Nrog rau tag nrho cov kab txuas thiab thawb-hauv fittings los ntawm lub thawv tswj mus rau pulverizer. - PU khoom cua yeeb nkab.
6	Txhawb pedestal	- SIB 304 - Bracket qhov siab adjustable nrog 2 leeg. - Pem hauv ntej nrog 4 roj hmab ncoo.
7	Cua qhov system	{{0}}m./min, 0.6MPA	Cov neeg siv khoom
