Rotary Evaporator Tshuab

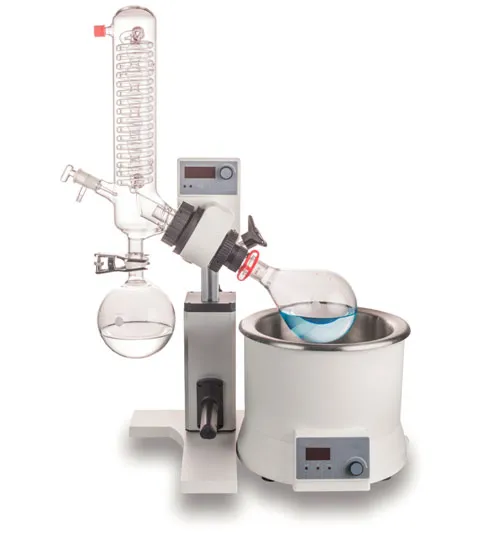

LED Digital Rotary Evaporator Tshuab





LED Digital Rotary Evaporator tshuabyog ib qho cuab yeej tseem ceeb hauv cov chaw kuaj tshuaj rau kev ua kom zoo thiab maj mam tshem tawm cov kuab tshuaj los ntawm cov qauv los ntawm evaporation. Nws tuaj yeem ua ke nrog lub tshuab nqus tsev twj tso kua mis, lub tshuab nqus tsev maub los thiab circulating chiller los muab cov kev daws teeb meem zoo tshaj plaws hauv ib qho

ntau yam kev siv.



Nta:

• 5L cua sov da dej nrog ntau qhov kub thiab txias (chav temp.to180 degree), tswj qhov kub thiab txias, ua kom nws tuaj yeem siv sib cais. Dej / roj cua sov hom tuaj yeem hloov pauv tsuas yog los ntawm kev hloov pauv.

• Kev tuav nqa ua ke nrog kev txhawb nqa nqa kom meej qhov chaw ntawm lub khob iav.

• PID tswj xyuas kom muaj qhov kub thiab txias ntawm ± 1oC (dej).

• Kev tiv thaiv kub dhau ntawm 220 degree

• Tiv thaiv kom qhuav, cia li kaw yog tias cua sov tsis muaj dej / roj hauv chav da dej kub.

• Ceev ntau los ntawm 20 mus rau 200rpm, lub sij hawm ncua sij hawm ua hauj lwm nyob rau hauv clockwise thiab anticlockwise cov lus qhia rau qhuav txheej txheem.

• Patented condenser (txias nto 1200/1700cm2 rau xaiv), ob chav helix condensing raj + nruab nrab voj arc tsim kom ceev tus nqi ntawm cov kua nrog zoo txias txias.

• Ejection mechanism ua kom yooj yim pauv ntawm evaporating flask

• Kho lub kaum sab xis immersion

Patented ob lub caij nplooj ntoos hlav sealing nplhaib uas yog ua los ntawm PTFE muab kev sib khi zoo heev

• Chaw taws teeb muaj nuj nqi muab PC tswj thiab xa cov ntaub ntawv.

Tau tshaj txhua yam ntawm RE100-Pro glassware



Specifications	RE100-S
Hom Tsav	Brushless DC lub cev muaj zog
Ceev Range	20-200rpm
Zaub LED	(ceev, kub, sijhawm)
Clockwise thiab Anti-clockwise	Yog lawm
Cov Cuab Yeej Cuab Yeej Kub	Chav ntsuas kub. rau 180 degree
Tswj qhov tseeb	dej: ± 1 degree roj: ± 3 degree
Lub zog cua sov	1010 W
Stroke Displacement	Phau ntawv 110mm + auxiliary 100mm
Lub Sijhawm Nruab Nrab Nruab Nrab	1~999s
Qhov Loj [D × W × H]	Chav tsev loj: 440 × 320 × 450mm
	Cua sov da dej: 300x300x240mm
Qhov hnyav	Chav tsev tseem ceeb: 7kg rhaub da dej: 3kg
Permissible Ambient Kub	5 ~ 40oC
Permissible txheeb ze humidity	80% RH
Chav kawm tiv thaiv	IP20
USB interface	Yog lawm
Voltage / Zaus	100 ~ 120/200 ~ 240V 50/60 Hz
Hwj chim	1100 W
