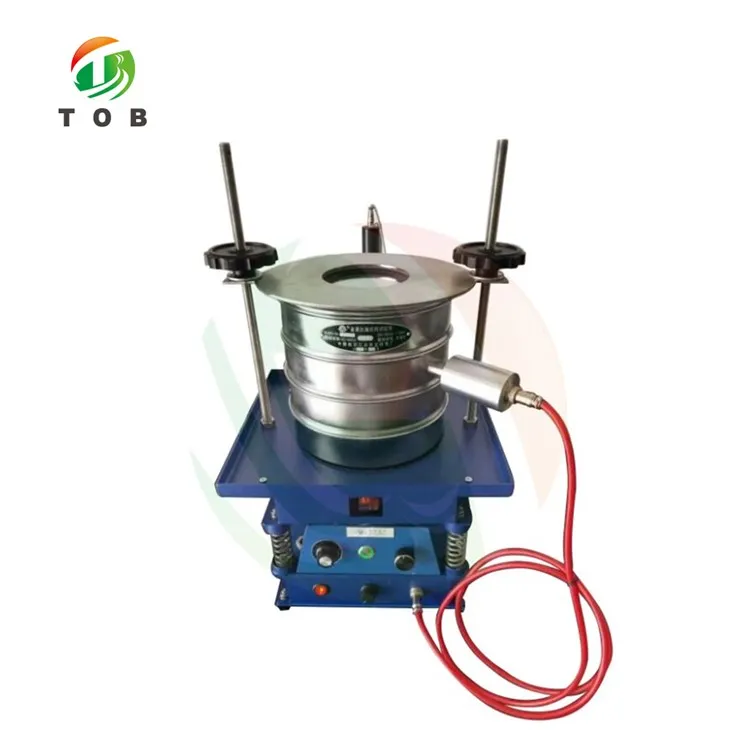

Vibrating Screen Tshuab

1.Model: TOB-SF-150T
2.Sieve loj:10-300um
3.Mesh naj npawb:100-500
4.Ultrasonic vibration thiab mechanical vibration tuaj yeem siv (ib leeg) lossis (ua ke)

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

100-500 Mesh Number Ultrasonic Vibrating Screen Tshuab NrogSelf-tu Function

Specification

Lub tshuab hluav taws xob ultrasonic generates siab zaus hluav taws xob oscillations uas hloov dua siab tshiab los ntawm ultrasonic transducer rau hauv cov tshuab tsis muaj zog uas yog nkhaus lossis longitudinally oscillated. Cov kev hloov pauv no sib npaug mus rau qhov chaw ntawm lub vijtsam, kom cov hmoov ultrafine tau txais lub zog ultrasonic loj, yog li inhibiting adhesion, kev sib txhuam, flattening, thiab lwm yam thaiv qhov tseem ceeb, thiab txhim kho kev tshuaj ntsuam xyuas thiab kev tu kom zoo.

Qauv	TOB-SF-150T
Net fais fab tso zis	0%-100% adjustable, 100w
Qhov hluav taws xob	220V / 50HZ
Ntau zaus	24-36KHZ
Net nyhav	12kg ua
Pulser	1S lossis ua haujlwm tas mus li
Kev vibration lub cev muaj zog	30W stepless ceev tswj
Tshuab loj	320mm * 300mm * 250mm
Piezoelectric hloov pauv hloov pauv zaus zog	CV33, PZT txhuas zirconate titanate piezoelectric ceramic
Piezoelectric hloov pauv hloov pauv zaus zog	l Txoj kab uas hla: 30mm, l ntev: 138mm, l luj: 300g l cable ntev: 150cm
Sieve loj	10-300um
Screen txoj kab uas hla	Φ200
Mesh naj npawb	100-500
Khoom siv	Tau txais chassis, npog, siv phau ntawv thiab cov ntawv tsim nyog 1pcs, fuse 3pcs
Lus ceeb toom	Ultrasonic vibration thiab mechanical vibration tuaj yeem siv (ib leeg) lossis (ua ke)
