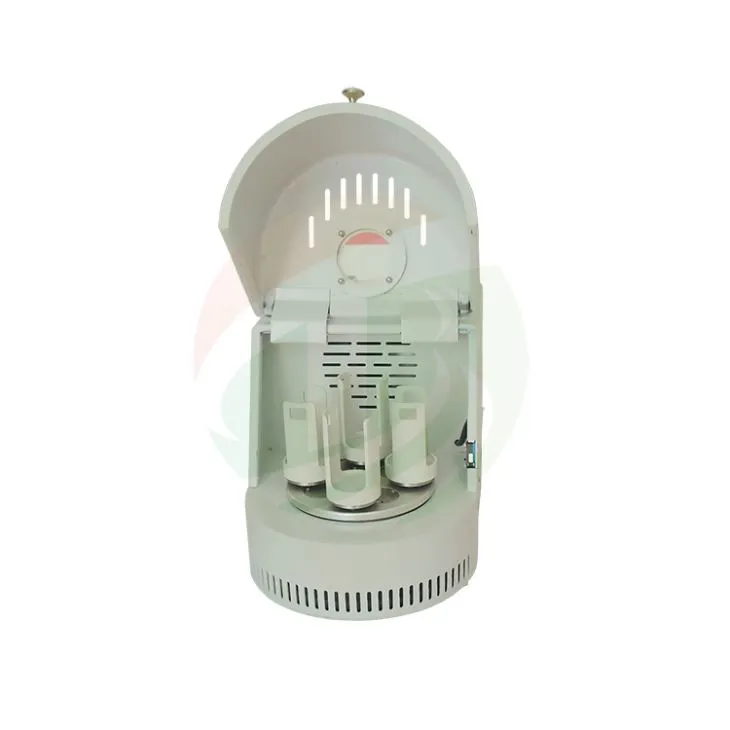

Lab Pob Zeb

Model: TOB-XQM-0.4
1. Sib tsoo tank ntim: 100ml * 4
2. Kev pub khoom loj: cov khoom siv av tsawg dua lossis sib npaug li 10 hli, lwm yam khoom siv tsawg dua lossis sib npaug li 3 hli
3. Cov khoom siv loj: Min 0.1um

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Nqe Zoo Rau Lab Planetary Pob Zeb Nrog 0.4L ntim thiab tso zis 100nm

Specification

Txheej txheem cej luam:

1 Planetary pob zeb yog cov cuab yeej tsim nyog rau kev sib tsoo zoo, cov khoom siv nano npaj, cov khoom tshiab tsim thiab npaj me me ntim cov khoom siv high-tech ntau lawm.

2 Lub ntiaj teb pob zeb yog me me, muaj peev xwm ua tau zoo, ua haujlwm siab thiab qis suab nrov uas yog cov cuab yeej zoo tshaj plaws kom tau txais cov qauv tshawb fawb micro particle (tuaj yeem tau txais plaub qhov qauv hauv ib zaug).

3 Nws tuaj yeem nruab nrog lub tshuab nqus tsev, cov qauv tuaj yeem ua hauv av hauv lub tshuab nqus tsev. Nws yog dav siv hauv geology, mining, metallurgy, electronics, tsev cov ntaub ntawv, ceramics, tshuaj thiab lwm yam departments.

4 Nws tuaj yeem teeb tsa lub sijhawm nrawm, rau pem hauv ntej thiab thim rov qab lub sijhawm, thiab lub sijhawm sib tsoo tag nrho raws li cov txheej txheem yuav tsum tau ua.

Txoj haujlwm ua haujlwm:

Lub XQM series planetary pob zeb yog nruab nrog plaub lub pob milling tso tsheb hlau luam ntawm ib lub turntable. Thaum lub turntable rotates, lub pob milling tank ua planetary txav.

Cov npas thiab cov qauv hauv yog cuam tshuam rau hauv kev kub ceev txav, nws tuaj yeem siv los zom thiab sib xyaw nrog cov khoom sib txawv me me thiab cov ntaub ntawv los ntawm txoj kev qhuav thiab ntub dej. Qhov loj ntawm cov hmoov tuaj yeem ua av rau 0.1 um.

Qauv	TOB-XQM-0.4
Sib tsoo tank ntim	100ml * 4
Sib tsoo cov khoom siv tank	Zirconia, corundum, agate, cemented carbide, stainless hlau, PTFE, PU, nylon. Raws li koj xav tau.
Sib tsoo pob khoom	Kev sib tsoo pob (loj, nruab nrab thiab me me)
Max loading ntim	Cov khoom siv thiab cov khoom sib tsoo tsis muaj ntau dua 1/3 ntawm ntim
Pub khoom loj	Cov khoom siv av tsawg dua lossis sib npaug li 10 hli, lwm yam khoom siv tsawg dua lossis sib npaug li 3 hli
Tso zis khoom loj	Min 0.1um
Ceev	Kev hloov pauv 45-435 r/min, Kev sib hloov 90-870 r/min
Hom ceev	Stepless ceev tswj, tsis siv neeg lub sij hawm rau pem hauv ntej thiab rov qab, tsis siv neeg kaw.
Ua haujlwm Voltage	AC 220 V
Lub cev muaj zog zaus conversion maub los	0.25kw
Max ua haujlwm tsis tu ncua sijhawm	72h ua
Lus ceeb toom	1. Lub pob zeb yog tswj los ntawm high-tech microcomputer nti. Nws tuaj yeem teem caij rau pem hauv ntej, thim rov qab ua haujlwm (0-999min), thiab rau pem hauv ntej, nres, thim rov qab, nres, rov ua haujlwm hloov pauv (0-999min), tshwj xeeb tshaj yog tsim rau kev ua haujlwm txias lossis tsis sib xws. 2. Nws tuaj yeem siv rau kev sib tsoo qhuav thiab sib tsoo ntub. Nws tuaj yeem nruab nrog lub tshuab nqus tsev filling inert gas sib tsoo lossis kub sib tsoo. 3. Roj lubrication yog saws ntawm lub iav kis tau tus mob kom txo cov suab nrov ntawm cov khoom siv.
Dimension	500 * 300 * 340 hli
Qhov hnyav	Txog 30 kg
