Qhuav Electrode Txheej Tshuab Chaw Tsim Tshuaj & Cov Txheej Txheem Qhia

Sau: Dany Huang, Ph.D.

CEO & R&D Leader, TOB New Energy

Txuas nrog Dr. Huang ntawm LinkedIn

Executive Summary & Key Takeaways

Cov txheej txheem qhuav electrode nkaus tshem tawm cov tshuaj lom NMP cov kuab tshuaj thiab lub qhov cub kom qhuav. Qhov no hloov chaw tsim khoom los ntawm cov tshuaj evaporation mus rau txhua yam extrusion, slashing OPEX cov nqi txog li 20% thaum nce theoretical zog ceev.

● Lub Fibrillation Barrier:Koj yuav tsum siv qhov tseeb siab -shear mixing los hloov 3% mus rau 8% PTFE hmoov rau hauv ib qho kev sib tshuam nano-web web uas ntxiab cov khoom siv.

● Calendering Siab:Standalone qhuav zaj duab xis thov tshwj xeeb, ntau-theem cua sov calenders tshaj 2000 kN ntawm hydraulic quab yuam.

● Kev koom ua ke ntawm tus neeg muab khoom:Kev yuav khoom zoo kawg nkaus matched dav hlau mills thiab yob presses los ntawm ib lub Hoobkas yog tib txoj kev los tiv thaiv cov zaj duab xis qhuav los ntawm fracturing nyob rau hauv nro.

Qhov Kawg ntawm Ntsuag Slurry Npau suav phem

Tsib caug -meter ziab qhov cub. Toxic NMP cov kuab tshuaj rov qab ua kom koj lub peev. Loj Hoobkas hneev taw siab rau tag nrho rau evaporating kua. Cov no yog cov npau suav phem ntawm kev tsim roj teeb ib txwm muaj. Koj tau them nyiaj ntau lab kom qhuav ntub slurry.

Kev lag luam yog txav mus rau cov txheej txheem qhuav electrode. Tab sis tshem tawm cov kua qhia txog kev muaj tiag tshiab. Koj khi cov khoom siv qhuav qhuav li cas? Cov lus teb yog mechanical shear. Ua tsis ncaj ncees lawm, thiab koj ntau - lab daus las pilot kab ua rau tsis muaj txiaj ntsig, tawg plua plav.

PTFE Fibrillation: Ntug ntawm Failure

Hauv kuv qhov kev paub dhau los tsim cov kab kev tsav dav hlau, kev hloov pauv mus rau kev siv tshuab qhuav ua rau cov pab pawg tsis tau npaj ua haujlwm. Cov txheej txheem cia siab rau Polytetrafluoroethylene (PTFE). Nws yog ib txoj hlua khi uas fibrillates - ncab mus rau hauv cov kab mob me me, nplaum webs - nyob rau hauv kev ntxhov siab ntawm kev siv tshuab.

Yog hais tias lub zog shear hauv koj lub nkoj sib xyaw yog nruj dhau, lossis qhov kub thiab txias tsis sib xws, PTFE yuav dhau -fibrillate thiab agglomerate. Koj tseem tshuav nrog cov nkig, tsis yog - cov hmoov cohesive. Thaum koj pub cov khoom tawg no rau hauv lub tshuab ziab khaub ncaws, cov yeeb yaj kiab electrode yuav nrawm nrawm nrawm. Yog tias koj thawb cov zaj duab xis tawg mus rau hauv ib lub xovtooj, koj cov khoom sulfide - lub xeev cov hlwb yuav ua tsis tau qhov kev puas tsuaj luv luv - kev ntsuas hluav taws xob ua ntej lawv txawm tawm hauv chav qhuav.

Koj xav tau kev phais precision. Raws li ib tug ncaj qha chaw tsim tshuaj paus, TOB Tshiab Zog engineers cov khoom siv rau lub hom phiaj no lub ntsiab bottleneck. Peb muaj lab- nplai dav hlau rau qhuav electrode hmoov sib tov muab qhov tseeb aerodynamic tswj yuav tsum tau ncua thiab shear PTFE yam tsis muaj thermal degradation.

Txheej txheem Showdown: Qhuav Electrode vs. Txheej ntub dej

Vim li cas thiaj pheej mob mob taub hau fibrillation? Saib cov lej nyuaj. Sib piv cov txheej txheem ntub dej tiv thaiv cov txheej txheem qhuav electrode niaj hnub.

Koj txuag chaw Hoobkas. Koj txiav cov nqi hluav taws xob. Koj thawb lub zog ceev dua. Tab sis tsuas yog tias koj tau txais qhov hnyav hnyav - lub luag haujlwm kho vajtse.

Engineering Insight:Kev tswj cov hmoov ndlwg tus nqi mus rau hauv thawj compression rollers yog qhov zais cia rau lub vev xaib sib xws. Micro-variations ua rau cov ntug tawg loj heev.Hu rau pab pawg engineering ntawm TOB New Energykom tau txais peb cov khoom siv Electrode tshwj xeeb Parameter Matrix, tailored tshwj xeeb rau koj xaiv active khoom thiab PTFE piv.

Hu rau tam sim no

Lub Cav Core: Siab -Cov Tshuab Txheej Txheej Tshuab

Standard yob presses yuav ua tsis tau. Lub sijhawm.

Lub tshuab ziab khaub ncaws tsis yog ib qho xovxwm xwb. Nws yog qhov cua sov, ultra-siab-pressure extrusion system. Koj tab tom yuam cov hmoov qhuav rau hauv ib qho yeeb yaj kiab dawb - sawv ntsug, ces laminating nws mus rau ib qho khoom siv tam sim no.

Koj xav tau cov menyuam nto hardness tshaj HRC65. Koj xav tau cov tshuab hydraulic muaj peev xwm xa cov quab yuam tsis tu ncua saum 2500 kN. Koj xav tau qhov sib txawv tswj qhov tseeb ntawm ± 2 µm.

Kev muab qhov no los ntawm cov tuam txhab lag luam dav dav yog qhov yuam kev tuag. Koj xav tau tus kws kho mob turnkey uas tshuab nws tus kheej siab - kam rau ua calendering yob. Los ntawm kev koom tes ncaj qha nrog ahnyav-duty qhuav electrode calendering tshuab tsum, koj lav cov khoom rigidity.

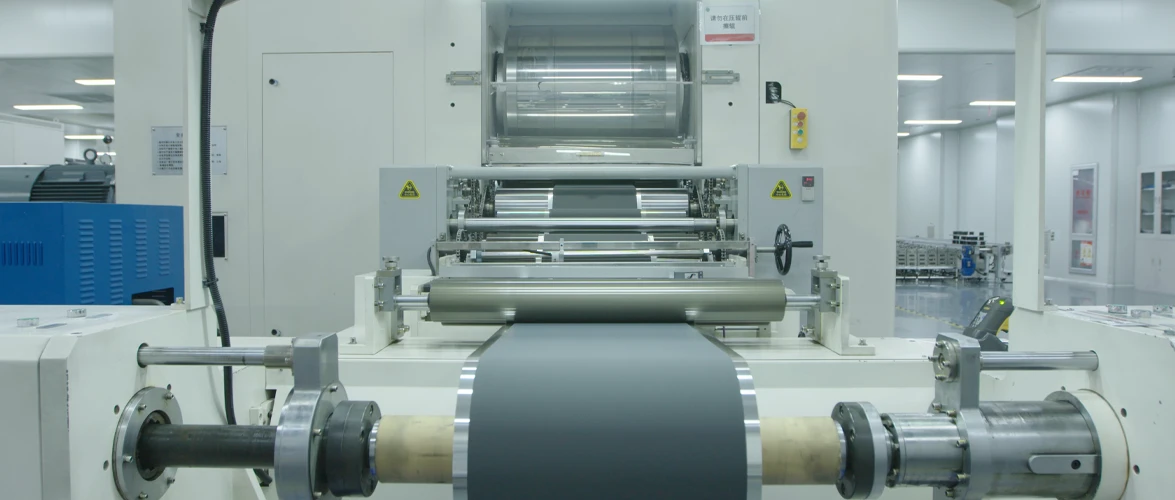

(calendering tshuab tsim rau qhuav electrode zaj duab xis tsim)

Qhuav Electrode Troubleshooting Guide

Nov yog qhov tshwm sim tiag tiag thaum koj ntaus hauv pem teb ntau lawm. Khaws cov matrix no ua ke.

Npaj Scale Up?Hloov mus rau cov txheej txheem qhuav electrode yog ib qho kev hloov pauv hauv lub Hoobkas architecture. Tsis txhob pheej hmoo koj ncua sij hawm ntawm cov khoom siv me me. Raws li lub Hoobkas tseem ceeb hauv Suav teb, TOB Tshiab Zog xa tawm kawg - rau - kawg Turnkey Solutions. Los ntawm thawj zaug hmoov rheology kuaj mus rau qhov kawg ntawm qhov chaw lees txais ntawm koj ntau -theem calendering kab.Xa peb koj lub hom phiaj muaj peev xwm hnub no, thiab ruaj ntseg ncaj qha muag tus nqi thiab kev cai engineering layouts.

Hu rau tam sim no

FAQ (Tib neeg kuj nug)

Q1: Cov txheej txheem electrode qhuav puas ua haujlwm rau LFP roj teeb?

Yog lawm. LFP hmoov muaj qhov sib txawv particle morphologies dua NMC, yuav tsum tau hloov kho meej nyob rau hauv lub dav hlau zeb shear tus nqi. Txawm li cas los xij, ib zaug PTFE piv tau hu rau hauv, nws tshem tawm qhov xav tau ntawm slurry ziab thiab ua kom muaj txiaj ntsig zoo ntawm LFP.

Q2: Dab tsi yog qhov zoo tshaj plaws PTFE feem pua ​​rau cov txheej qhuav?

Feem ntau 3% mus rau 8%. Tshaj 8% ua rau muaj kev tiv thaiv sab hauv thiab degrades electrochemical kev ua tau zoo. Kev poob qis dua 3% ua rau cov dawb - sawv zaj duab xis tsis yooj yim heev kom muaj sia nyob ntawm cov txheej txheem calendering extrusion.

Q3: Kuv puas xav tau chav qhuav qhuav kom qhuav electrode?

Tsis yog, tsis yog ib txwm. Thaum sulfide khoom- xeev electrolytes xav tau huab hwm coj -50℃dew ntsiab lus, txheej txheem qhuav electrode ua rau cov pa NMC/LFP yog cov dej noo-tiv taus. Qhov no tso cai rau kev yuav khoom ntau ntawm cov txheej txheem HVAC, txiav cov nqi peev loj heev piv rau cov chaw ntub dej slurry sib xyaw.
