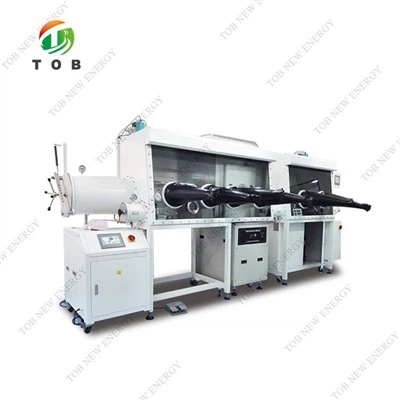

Multi-Station Inert Gas Glove Box
Multi-Station Inert Gas Glove Box
Multi-Station Inert Gas Glove Box

Multi-Station Inert Gas Glove Box

Model: TOB-GB-D
Nws yog tsuas yog siv nyob rau hauv dav dav lub hom phiaj R & D, ntau lawm thiab me me scale ntau lawm.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Multi-chaw nres tsheb Inert Gas hnab looj tes Box rau R & D thiab me me Scale Production

Specification

Nta

Cov txheej txheem ntse ntawm Internet ntawm Tej Yam tuaj yeem ntsia tau kom paub txog kev tswj cov lus tsa suab thiab kev tswj hwm hauv nruab nrab ntawm lub hnab looj tes, uas muaj kev nyab xeeb thiab ruaj ntseg. Nws muaj cov haujlwm ntse xws li synchronization ntawm lub sijhawm tiag tiag ntawm cov khoom siv, cov ntaub ntawv qhia txog cov ntaub ntawv, cov ntaub ntawv keeb kwm kev nug, kev ceeb toom tseem ceeb ntawm cov lus ceeb toom, cov chaw taws teeb tswj xyuas, kuaj xyuas qhov txhaum hauv online thiab kho hauv online, kev pabcuam hauv online thiab lwm yam kev txawj ntse.

Tswj qhov system:Siemens PLC

Purifier:ib kem

Cov dej noo: <1ppm

Qib Oxygen:<1ppm

Khoom Specification

Hnab looj tes Chamber
Cov Chamber		Khoom siv: 304SS, Thickness: 3mm
		Sab nraud nto: 304SS
		Sab hauv nto: Roj zaj duab xis txhuam nto
		Loj: Yeem ntev: 1500,1800,2440,3660,4880mm Yeem qhov tob: 750,1000,1200mm Qhov siab: 900mm
Lub qhov rais pem hauv ntej		Tilt qhov rais, pob tshab tempered kev nyab xeeb iav, thickness 8 hli
Hnab looj tes ports		Khoom siv yog POM lossis aluminium alloy: O-ring foob
Hnab looj tes		Butyl roj hmab, thickness 0.4mm, txoj kab uas hla 7 '' lossis 8 "
Lim		0.3 microns, lub qhov hluav taws xob roj thiab lub qhov hluav taws xob roj
Txee		Stainless hlau, built-in 2 txheej adjustable qhov siab
Teeb pom kev zoo		LED teeb, LED teeb, ntsia hauv lub teeb
Txuas		DN 40 KF, ntau qhov chaw seem, Lub zog sib txuas 1pc (220V)
PurificationSystem
Purification kab		Muaj nuj nqi: gas kaw, tshem tawm dej, tshem tawm oxygen
		Khoom siv: 304 stainless hlau
		Purification cov ntaub ntawv: tooj liab catalyst: 5kg, molecular sieve: 5 kg
		Purification muaj peev xwm: oxygen: 60L, dej: 2Kg
		Cov ntsuas dej thiab cov pa oxygen: tsawg dua 1ppm
Circulation system		Ua haujlwm roj: nitrogen, argon, helium
		Recycling muaj peev xwm: integrated kiv cua ntws 90m³ / h, nruab zaus hloov dua siab tshiab (Larger kiv cua txaus 145m3 / h, 180m3 / h muaj)
Kev tsim kho dua tshiab		Kev Ua Haujlwm: PLC cia li tswj cov txheej txheem rov tsim dua tshiab
		Regeneration gas: ua hauj lwm roj tov nrog hydrogen gas, (hydrogen 5-10 feem pua )
Lub tshuab nqus tsev twj		8m³/h,12m³/h
		Rotary vane twj tso kua mis: nrog roj pos huab lim, huab cua kev co tswj
Valves		Lub ntsiab valve: DN 40 KF, hluav taws xob ua haujlwm lub kaum sab xis
		Tswj valve: electromagnetic integrated valve
Transitive cabin
Lub tsev loj dua transitive	Chamber	Loj: txoj kab uas hla 360mm, ntev 600mm (xaiv txoj kab uas hla 400mm)
		Khoom siv: 304 stainless hlau
		Nto: sab hauv txheej hlau xaim txheej txheem, txheej txheej pleev xim lossis daim iav nto
	Accessary	zawv zawg tais
		Qhov rooj: ob lub qhov rooj, cov khoom siv txhuas anodized, thickness 10mm, ntsug kev lag luam, nrog lifting mechanism
		Kev ntsuas siab: Analog zaub
	Tswj	Kev Ua Haujlwm: Tsis siv neeg tswj
Lub tsev me me transitive	Chamber	Loj: txoj kab uas hla 150mm, ntev 300mm (xaiv txoj kab uas hla 100mm)
		Khoom siv: 304 stainless hlau
		Nto: sab hauv txheej hlau xaim txheej txheem, txheej txheej pleev xim lossis daim iav nto
	Accessary	Qhov rooj: ob lub qhov rooj
		Kev ntsuas siab: Analog zaub
	Tswj	Kev Ua Haujlwm: Kev ua haujlwm ntawm tes
Tswj System
Cov lus piav qhia		Zaub system: Siemens PLC kov vaj huam sib luag
		Muaj nuj nqi: suav nrog kev kuaj tus kheej, lub hwj chim tawm ntawm tus kheej pib tus yam ntxwv, nrog kev tswj siab thiab kev hloov pauv tsis siv neeg tswj, tswj lub voj voog, tiv thaiv tus password
		Kev tswj qhov siab: tswj lub thawv, hloov chamber siab, txee ua haujlwm siab ntxiv /- 15mbar tuaj yeem teeb tsa dawb, dhau ntawm ntxiv /- 16mbar system tsis siv neeg tiv thaiv
		Pedal: Tswj lub thawv siab
		Cov Ntaub Ntawv Memo: Tsis siv neeg kaw cov ntaub ntawv kaw lus
Accessary
Lub tshuab nqus tsev twj			Specification: 8m³ / h, 12m³ / h, 16m³ / h
Oxygen analyzer			Kev ntsuas ntau: 0-1000ppm
Humidity (dua point) Instrument			Kev ntsuas ntau: 0-500ppm
