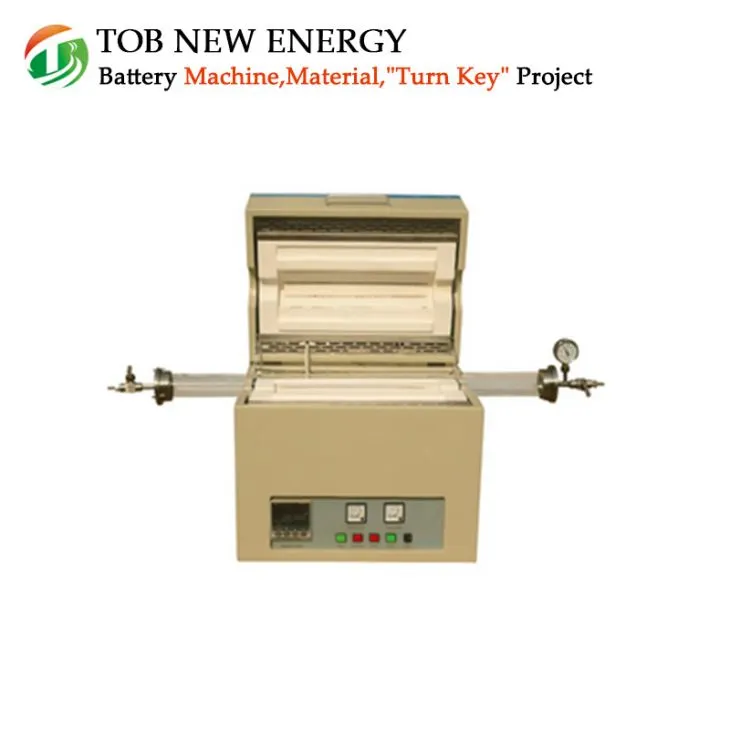

Ib Cheeb Tsam Tube Rauv

1.Type: Ib Cheeb Tsam Tube Rauv
2.Max. Ua haujlwm kub: 1200 degree
3.Heating Zone Ntev: 420mm
4. Dimensions: 1520mm (L) x 600mm (W) x 1200mm (H)
5. Khoom hnyav: 100kg

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Ib Cheeb Tsam Rotary Tube Rauv Nrog 100mm OD Quartz Tube

Specification

1 TOB-OTL1200 Model tube rauv yog ib qho chaw quartz tube rauv uas tuaj yeem ua tiav cua sov sai dua li 1200c. Nws txais yuav hluav taws xob tiv thaiv hlau ua cua sov. 40 ntu programmable kub tswj tau nruab nrog 6 pawg ntawm PID hloov kho.

2 Nws yog cov cuab yeej kuaj xyuas zoo tshaj plaws rau cov tsev kawm ntawv qib siab, cov chaw tshawb fawb, kev lag luam thiab kev lag luam mining ua rau kub kub cua sintering, Atmosphere txo, CVD sim, nqus annealing xws li kev npaj nano cov ntaub ntawv thiab zaj duab xis.

Qauv	Tube Loj	Hwj chim	Qhov hluav taws xob	Cua sov Zone Length	Max kub kub
TOB-OTL1200-I	Φ60 × 1000 hli	2.5 kwm	AC 110V / 220V	420 hli	1200 degree
TOB-OTL1200-II	Φ80 × 1000 hli	2.5 kwm
TOB-OTL1200-III	Φ100 × 1000 hli	3,5 kwv
TOB-OTL1200-IV	Φ120 × 1000 hli	4 kwv
Cua sov ntsiab	Hluav taws xob tiv thaiv hlau
Kub tswj	40 program kub tswj qhov system, Nrog rau qhov kub thiab txias, tawg yuam kev tiv thaiv muaj nuj nqi, 6 pawg ntawm kev hloov kho PID Tswj precision ntawm + / - 1 degree
Rauv chamber	Polycrystal alumina fiber ntau
Tube khoom	Gas refining quartz raj
Nqus Flange & Fitting Ports	Stainless hlau flange nrog Gas nozzle, valve, siab ntsuas
Kev ntsuas qhov system	Kev ntsuas siab (Kev ntsuas lub tshuab nqus tsev tuaj yeem xaiv tau raws li qhov xav tau)
Kev tswj huab cua	Flow meter (Protons flow controller tuaj yeem xaiv raws li qhov xav tau)
Lub tshuab nqus tsev	Lub tshuab nqus tsev twj tuaj yeem xaiv tau
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej
