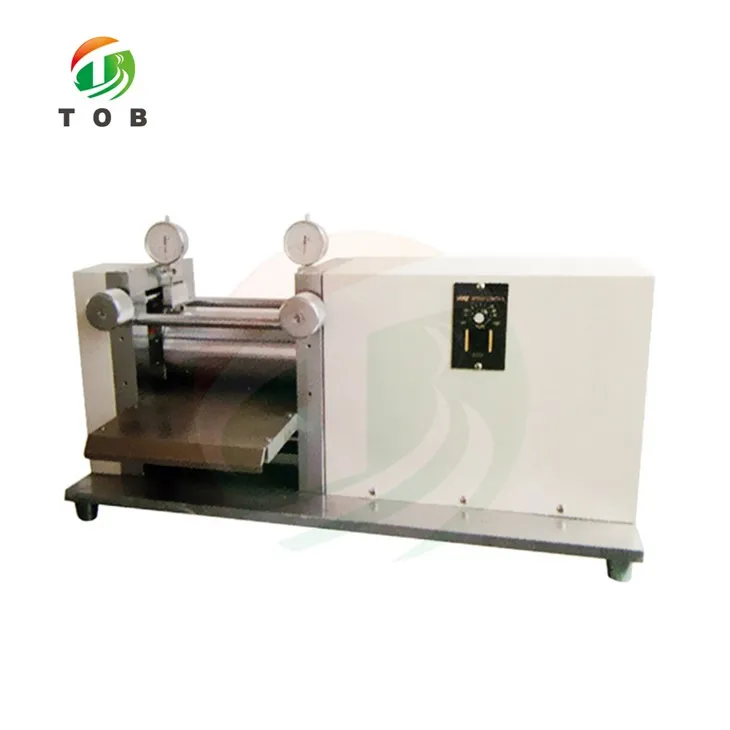

Lab Calender Tshuab

1.Max siab: 3T
2. Roller: 100mm (Dia.) x 150mm (W)
3.MOQ: 1set
4. Nyhav: txog 75 kg

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Laboratory Calender Tshuab rau Lithium ion Roj teeb Electrode Nias

Cov menyuam no tshwj xeeb tsim rau roj teeb R & D raws li nws qhov zoo

raws li tus nqi pheej yig, compact thiab meej.

1 Yuav tsum tau siv acetone los ntxuav thiab qhuav cov npoo tom qab siv txhua zaus kom tsis txhob xeb

2 Coated Rust-proof roj yog tias lub tshuab yuav tsum tsis siv rau lub sijhawm ntev

3 Qhov tsawg kawg nkaus thickness ntawm cov ntawv dov yuav tsum nyob ntawm qhov

lub cev khoom ntawm cov ntaub ntawv.

Qauv	Φ100 * 150mm Electric Roll Press TshuabTOB-GYJ-100B
Ua haujlwm Voltage	110V / 220V AC ib theem xaiv tau
Hwj chim	200W tag nrho
Warranty	Ib xyoos txwv kev tsim khoom warranty nrog kev txhawb nqa lub neej
Qauv	1 Lub luag haujlwm hnyav steel ncej, iav thiab kov 2 Φ100mm Dia. x 150mm dav Rollers ua los ntawm cov cuab yeej hardened (HRC> 62) nrog Cr electroplated txheej 3 Dual micrometer rau qhov tseeb thickness hloov nyob rau hauv qhov ntau 0 - 1.5mm Qhov siab tshaj plaws
Cov menyuam	Qhov Loj: 100mm (Dia.) x 150mm (W) Khoom siv: Ua los ntawm cov cuab yeej hardened (HRC> 62) nrog Cr electroplated txheej. Nrog tiav > 0.8
Rolling xovxwm raug	Tsawg dua lossis sib npaug rau ±0.005
Roller nto hardening qhov tob	5mm ua
Max siab	3T
Rolling xovxwm thickness	0-1.5mm kho nrog Dial gauge
Rolling xovxwm dav	Max 150mm, Customized
Rolling xovxwm ceev	0-2m/min adjustable
Qhov hnyav	75kg ua
