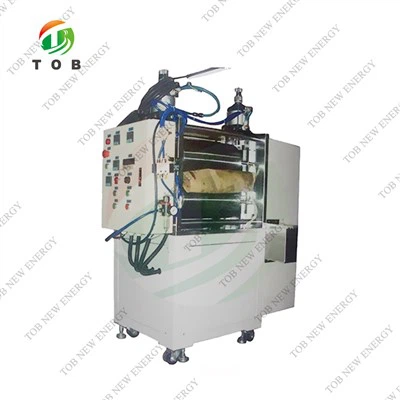

Hydraulic Heating Calendering Tshuab

Model: TOB-H400450-CT
TOB-H400450-CT roj teeb electrode hydraulic cua sov calendering tshuab yog ib yam khoom tshwj xeeb rau kev tsim cov lithium ion roj teeb electrode nplooj ntawv, feem ntau yog siv rau calendering, cua sov thiab compacting electrode nplooj ntawv.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Hydraulic Heating Calendering Tshuab

Product Video

Specification

TOB-H400450-CT roj teeb electrode hydraulic cua sov calendering tshuab yog ib yam khoom tshwj xeeb rau kev tsim cov lithium ion roj teeb electrode nplooj ntawv, feem ntau yog siv rau calendering, cua sov thiab compacting electrode nplooj ntawv. Lub roj teeb electrode calendering tshuab siv lub tshuab hydraulic los muab lub zog, thiab lub tshuab cua sov los ua kom sov cov chais. Los ntawm cov txheeb ze txav ntawm sab sauv thiab qis dua, cov ntawv coated electrode yog dov mus rau qhov xav tau tuab thiab ntom, thaum txhim kho cov conductivity thiab mechanical zog ntawm cov roj teeb electrode nplooj ntawv.

Cov cuab yeej ua kauj ruam

Unwinding → Txuas ntawv ci → Ntug txiav → plua plav nqus → Pneumatic tsis → Preheating → Kub dov → Reserved laser thickness ntsuas txoj hauj lwm → Pneumatic tsis → Txuas ntawv → Winding

Tsis muaj.	Khoom npe	Qauv	Lus ceeb toom
1	Roj teeb electrode yob xovxwm kab	TOB-H400450-CT	Zoo yob dav 100 ~ 400mm

Tsis muaj.	Yam khoom	Kev piav qhia	Lus ceeb toom
1	Tsim nyog qhov system	LFP, LCO, LMO, NCM, thiab lwm yam. Roj teeb cathode thiab anode electrode nruam dov txheej txheem.
2	Rolling khoom	Aluminium ntawv nyiaj (12um{1}}.5mm) Copper foil (6um{1}}.5mm)
3	Txoj kev dov	Ob lub rollers yog horizontally dov, thiab tus tsav yog nyob rau sab xis ntawm qhov kawg pub.
4	Ua hauj lwm siab	Lub twj tso kua mis tsis tu ncua, haum rau cathode siab dov thiab anode tsis tshua muaj siab dov.
5	Cov cuab yeej ceev	Stepless adjustable, thiab linear ceev ntawm sab sauv thiab qis yob yog sib npaug.	Max 20m / min
6	Tsis siv neeg hloov kev ua haujlwm ntawm cov kabmob clearance	Siv lub tog raj kheej roj los kho thiab qhib tau.
7	Tswj txoj kev	PLC, kov npo tswj kev ua haujlwm.

Tsis muaj.	Yam khoom	Kev piav qhia	Lus ceeb toom
1	Qhov loj me ntawm dov nto	Ф400mmx450mm, zoo dov dav 100 ~ 400mm
2	Kab siab ntawm ob yob	Max 3000 KN
3	Non-attenuating hardness txheej	Min 26 mm
4	Roller hardness	HRC Ntau dua lossis sib npaug rau 66, Hardness uniformity Tsawg dua lossis sib npaug rau HS ± 1	Nrog daim ntawv xeem
5	Roller nto roughness	Ra Less dua los yog sib npaug rau 0.04	Nrog daim ntawv xeem
6	Cov menyuam ncaj	Tsawg dua los yog sib npaug rau ±0.001mm	Grinder nrhiav
7	Nruab radial runout	Tsawg dua los yog sib npaug rau ±0.002mm
8	Adjustable yob qhov sib txawv	{{0}} 0mm, Digital teeb tsa kev hloov kho precision 0.001mm. Qhov sib txawv ntawm ob lub rollers zoo ib yam
9	Rolling raug	Tsawg dua lossis sib npaug rau ±{{0}}.002mm(Coating raug Tsawg dua lossis sib npaug rau ± 0.003mm)
10	Siab tswj qhov tseeb	Tsawg dua lossis sib npaug rau 0.15T
11	Cov cuab yeej khiav ceev	Max 30m / min
12	Txiav dav	100mm -400 hli
13	Maximum txoj kab uas hla ntawm winding thiab unwinding	Φ400 hli
14	Qhov siab tshaj plaws ntawm winding thiab unwinding	420 hli
15	Qhov hnyav tshaj plaws ntawm winding thiab unwinding	300 Kg
16	Txoj kab uas hla ntawm cov ntawv ci winding core	f76mm ua
17	Winding thiab unwinding ncej nyob rau hauv lub lag luam radial runout yuam kev	Tsawg dua lossis sib npaug rau ±0.03
18	Winding thiab unwinding ncej nto roughness Ra	Tsawg dua lossis sib npaug rau 0.15
19	Winding thiab unwinding ncej coaxiality	Tsawg dua lossis sib npaug rau ±0.03
20	deviation kho qhov tseeb	Max. 0.2 hli
21	Maximum winding nro	0 ~ 50N Kho tau
22	Ntaus xim	International sov grey 1C
23	Main lub cev muaj zog	11 kWm
24	Rolling tshuab Dimensions	3.6m X 1.2m X 2.45m
25	Rolling tshuab ntau lawm kab dimension	6m X 4.0m X 2.0m Nrog rau qhov siab tshem tawm cov menyuam
26	Rolling tshuab ntau lawm kab hnyav	Txog 8 T
27	Khoom siv zog tag nrho	55 KW TSI
