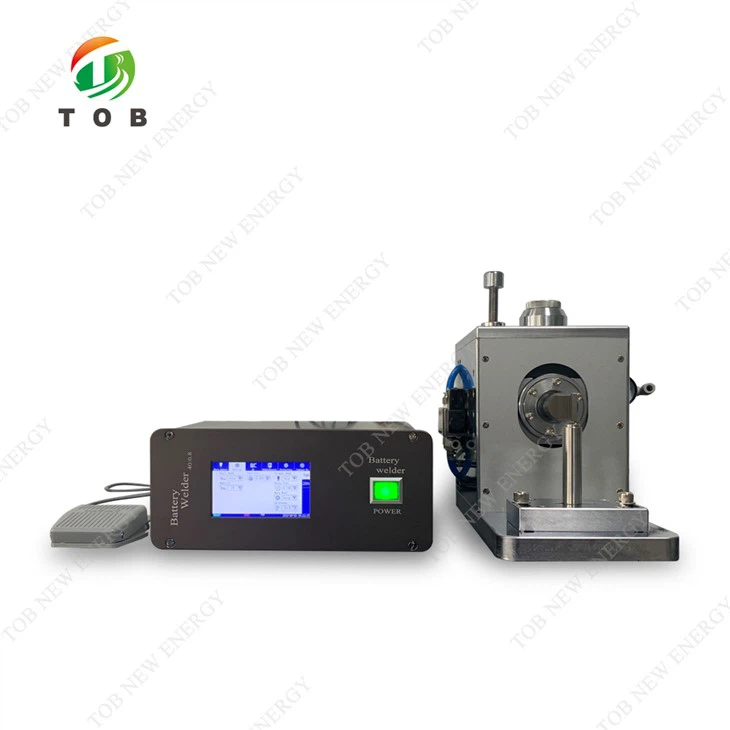

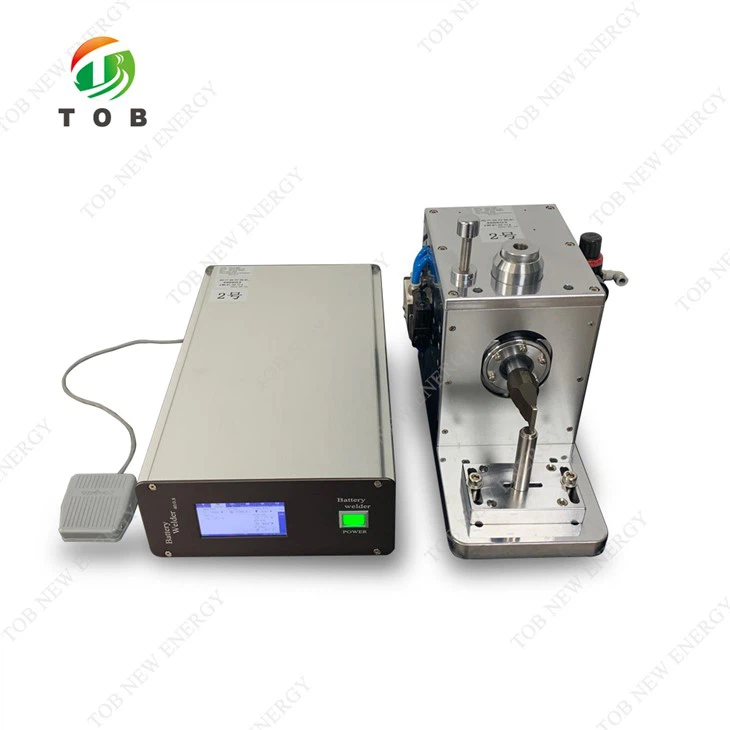

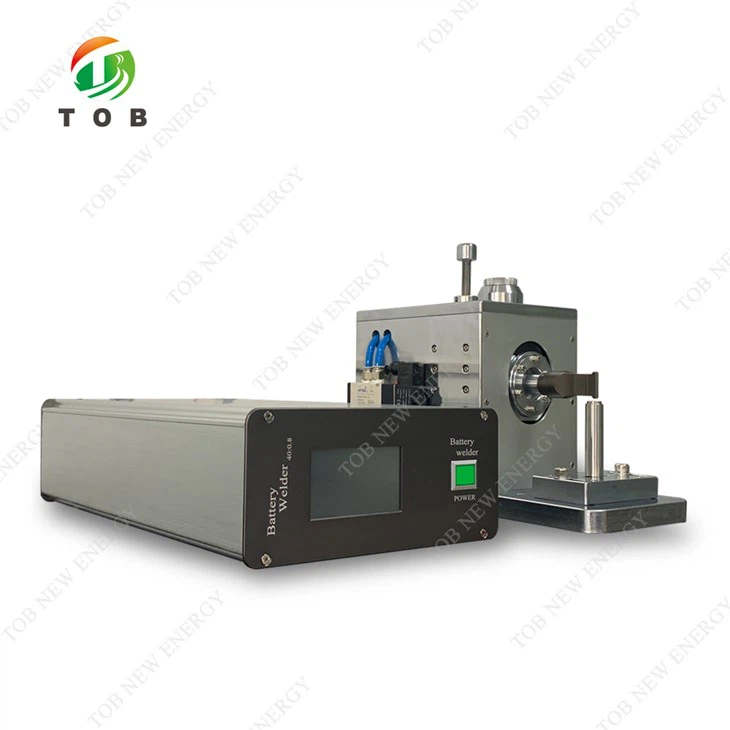

Lab Ultrasonic Hlau Vuam Tshuab

Qauv

Ultrasonic zaus

Ultrasonic zog

Cua siab

Lub sijhawm vuam

Qhov hluav taws xob

Qhov hnyav

TOB-VS-50A

40 KHz

800W

Ntau dua lossis sib npaug rau 0.6MPa 80L/min

Hauv 0.2S

220V / 50Hz

Txog 50 kg,

Tsis muaj rooj

Yam khoom

Lub npe

1. Cov khoom siv substrate

1.1 TAB material

Aluminium sawb

1.2 TAB thickness

{{0}}.1 ~ 0.2mm (Ib txheej)

1.3 Ib

Aluminium cap rau 18650, 21700, 32650, xav tau kev sib txawv

2. Roj teeb Cell

2.1 Winding txheej txheem

Ib txheej tab nrog ib txheej ntawv ci

2.2 Electrode txheej

Ib txheej

3. Vuam hom

3.1 Welding cheeb tsam

Hauv qab 4 * 4 mm

3.2 Lub sijhawm vuam

Tsis pub dhau 0.12S/times

3.3 Welding point

1 point

3.4 Siab

0-1MPa, kho tau

3.5 Sijhawm

0-60S, kho tau

3.9 Weld taub hau lub neej

Cathode Ntau dua lossis sib npaug rau 500000 zaug

Anode Ntau dua lossis sib npaug rau 160000 zaug

4. Weld taub hau txheem

4.1 Weld taub hau khoom

Imported siab ceev steel

4.2 Cov pob qij txha loj heev

Ntau dua lossis sib npaug rau 0.2mm

4.3 Weld nto kom muaj nuj nqis hauv ib lub taub hau vuam

2 los yog 4 pcs

4.4 Amplitude adjustable ntau yam

3 ~ 10 hli

5. Transducer

5.1 Qhov sib txawv ntawm zaus ntawm cov transducers

Tsawg dua los yog sib npaug rau 400Hz

5.2 Qhov sib txawv impedance ntawm cov transducers

Tsawg dua lossis sib npaug li 4Ω

5.3 Capacitance sib txawv ntawm cov transducers

Tsawg dua lossis sib npaug li 400PF

5.4 Rwb thaiv tsev tsis kam ntawm transducer rau lub plhaub sab nraud

Ntau dua lossis sib npaug li 30MΩ

5.5 Tolerable zog

Lub zog tso zis ntau dua lossis sib npaug ntawm 800W

6.Ultrasonic generator

6.1 Zaus tswj hom

Tsis siv neeg zaus taug qab

6.2 Tsis tu ncua amplitude muaj nuj nqi

Switching fais fab mov Tsis tu ncua voltage tsis tu ncua tam sim no

6.3 Amplitude kauj ruam-tsawg adjustable

Kauj ruam-tsawg adjustable

6.4 Circuit Court technology

Intelligent digital circuit, advanced CPU central processing system, nrog lub zog hom, lub hwj chim hom, lub sij hawm hom, zaus tsis siv neeg mus txog qhovtwg, zoo tswj lub sab sauv thiab qis qis lub tswb functions.

7. Vuam tshwm sim

7.1 Kev tshwm sim

Tsis muaj kev vuam virtual, tsis muaj vuam nkag, tsis muaj qhov to, vuam ruaj, tag nrho thiab meej cov pob qij txha, kev puas tsuaj rub cov ntawv ci 80% seem ntawm TAB.

7.2 Vuam tensile zog

Ntau dua lossis sib npaug rau 25N

7.3 Cov khoom dhau tus nqi

Ntau dua lossis sib npaug rau 99.8% (hauv qab Cov khoom tsim nyog)

8 . Cov khoom siv tsim lub neej

8 ~ 10 xyoo
