1.Model: TOB-SUP-C65
2. Daim ntawv thov; rau lithium ion roj teeb raw khoom

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

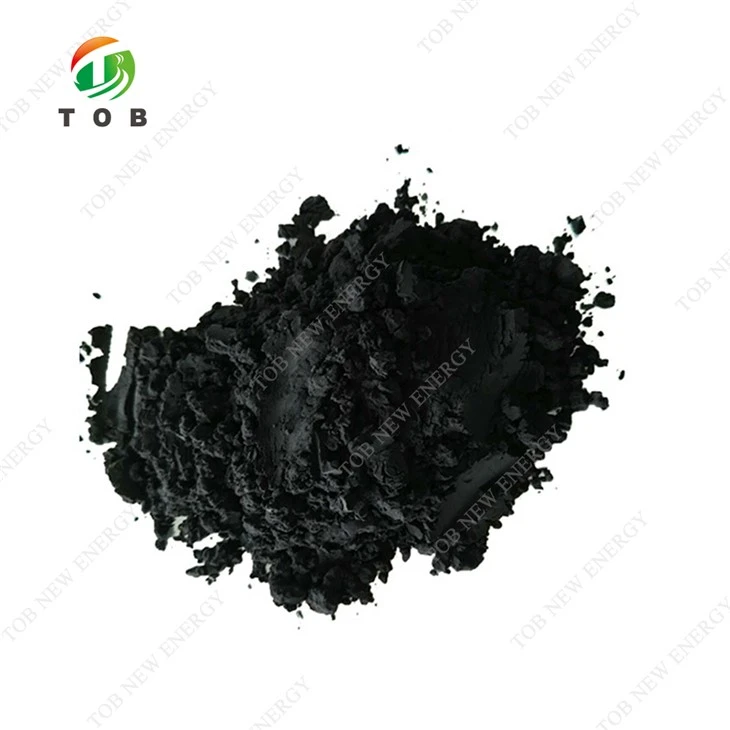

Carbon Dub C65 Rau Lithium ion Roj Teeb Raw Khoom

Specification

QHOV TSEEB	TEST METHOD(*)	UNIT	LIMITS	VALUE
Ceev (hauv hnab)	Internal method 26	kg/m²	160±20	160
Absorption Striffness Tus nqi	Txoj hauv kev 1	ml / 5 g	32.0±2.0	33.0
HCI Absorption Tus nqi	JIS K1469-1984	ml / 5 g	min 16 0	20.8
Grit 45μm / 325 mesh	ASTM D 1514 Cov Lus Qhia	ppm ua	max5 0	＜2
Loj 20μm	ASTM D 1514 Cov Lus Qhia	ppm ua	max25 ua	＜7
BET Surface Area	ASTM D 3037-89	m²/g	62.0±5.0	61.2
Moisture Content (raws li ntim)	ASTM D 1509 Cov Lus Qhia Tshwj Xeeb	%	max 0.3	0.1
Tag nrho Sulfur	ASTM D 1619 Cov Lus Qhia	%	max 0.030	0.023
Volatile teeb meem	Txoj hauv kev 2	%	max 0.15	0.14
Tshauv Ntsiab Lus	ASTM D 1506 Cov Lus Qhia	%	max 0.025	0.010
Cov ntsiab lus hlau	Internal method 20	ppm ua	max 7 0	1.5
Cov ntsiab lus Nickel	Internal method 20	ppm ua		0.1
Vanadium Cov ntsiab lus	Internal method 20	ppm ua		＜0.5
Toluene Extract	ASTM D 4527 Cov khoom lag luam	%	max 0.10	＜0.10
Tshwj xeeb kuj 50kg / cm²	Txoj hauv kev 7	Aw-cm	max 0.25	0.17
Tshwj xeeb kuj 50kg / cm²	Txoj hauv kev 7	Aw-cm	max 0.15	0.12
Cov ntsiab lus carbon	Internal method 27	%	ua 99.5	＞99.5
PH	TIAB SA 1512		8-11.0	9.3

Cov pa roj carbon dub yog ib qho kev siv ntau tshaj plaws hauv kev tsim cov roj hmab thiab cov khoom yas. Nws muaj nyob rau hauv ntau qib thiab hom nyob ntawm nws cov khoom thiab kev siv. Ib qib zoo li no yog cov hluav taws xob ua hluav taws xob carbon dub C65, uas yog siv dav rau kev txhim kho cov hluav taws xob conductivity ntawm ntau yam khoom lag luam.

Khoom:
C65 carbon dub nthuav tawm cov hluav taws xob zoo hluav taws xob vim muaj cov qib siab ntawm graphitic carbon hauv nws cov qauv. Nws muaj thaj chaw siab thiab tsis tshua muaj particle loj faib, uas txo qhov tsis kam ntawm cov khoom, yog li ua kom cov conductivity. Nws kuj tseem ruaj khov thiab tiv taus kev degradation, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas yuav tsum tau muaj kev ruaj ntseg mus sij hawm ntev.
