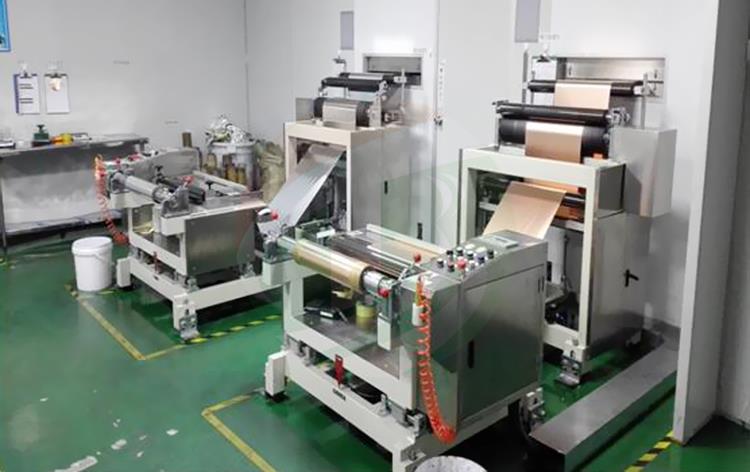

Txheej Electrode

Kev piav qhia

Khoom siv / Lub npe

Cov ntsiab lus / unit

Khoom siv / Lub npe

Cov ntsiab lus / unit

Active tshuaj

NMC

95.3%

npe 507

96.6%

0.0%

conductive additives

KS -6

0.5%

KS -6

0.0%

Conductive carbon dub

Super P

2.0%

Super P

1.0%

PVDF

swb 6020

2.2%

WSC-CMC

1.2%

A&L SBR

1.2%

Electrode ntev

694

mm

#REF!

mm

tam sim no collector loj

394mm * 15 hli

380mm * 8 hli

tam sim no collector thickness

0.015

mm

0.008

mm

txheej ntev (Ib sab

684

mm

690

mm

txheej ntev (B sab)

684

mm

#REF!

mm

ob sab txheej ntev nyob rau hauv tag nrho

1369

mm

1381

mm

ib sab txheej ntev

0

mm

#REF!

mm

ib sab txheej thickness (tsis muaj ntawv ci)

0.000

mm

0.073

mm

ib sab thickness tsis muaj tam sim no collector

0.0617

mm

0.0592

mm

electrode thickness (nrog rau tam sim no collector)

0.138

mm

0.126

mm

electrode dav

56.50

mm

59.00

mm

ib pcs electrode cheeb tsam

773.3

cm^2

#REF!

cm^2

Active khoom hnyav

0.0192

g/cm^2

0.0092

g/cm^2

Ib sab txheej hnyav

0.02012

g/cm^2

0.0094965

g/cm^2

Punch piece Ib sab txheej hnyav

0.3951

(g / 1963.5mm2)

0.1865

compacted ceev

3.24

g/cm^3

1.60

g/cm^3

Thawj tus nqi peev

170

mAh/g

390

mAh/g

Exert gram muaj peev xwm (0.2C)

157.7

mAh/g

355

mAh/g

Exert gram muaj peev xwm (0.5C)

153.0

Unit cheeb tsam exertion muaj peev xwm

2.934

mAh/cm^2

3.257

mAh/cm2

Txias nias extensibility

100.6

%

100.3

%

Xav txog qhov tseeb unit cheeb tsam muaj peev xwm ntawm extensibility

2.916

mAh/cm^2

3.247

mAh/cm2

Qhov hnyav piv ntawm cov tshuaj nquag hauv ib cheeb tsam (zoo / tsis zoo)

2.084

Tshaj Anode Capacity tus nqi

1.080

Theoretical xam muaj peev xwm (0.2C)

2325

mAh

cap

18 hli + PTC / 17.45 * 3.9

Theoretical xam qhov muaj peev xwm (0.5C)

2255

mAh

Thawj tus nqi peev

2515
